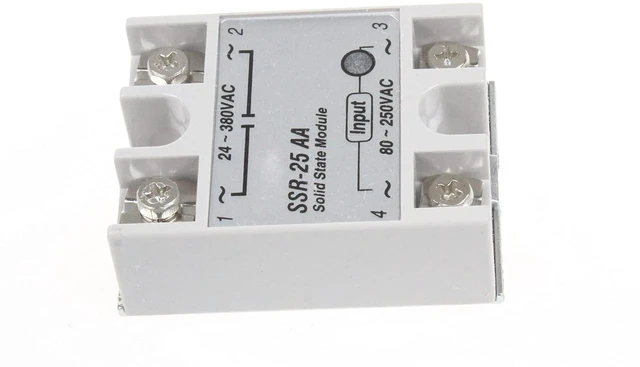

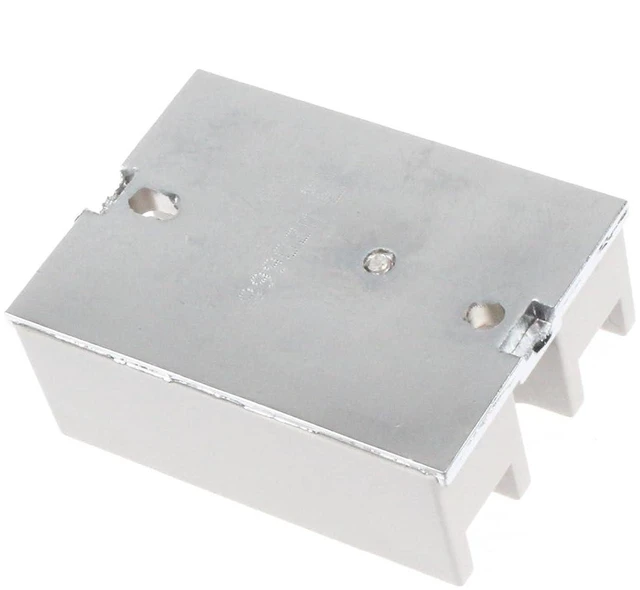

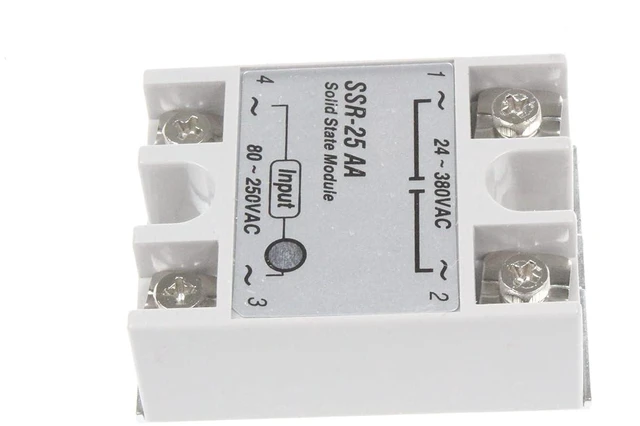

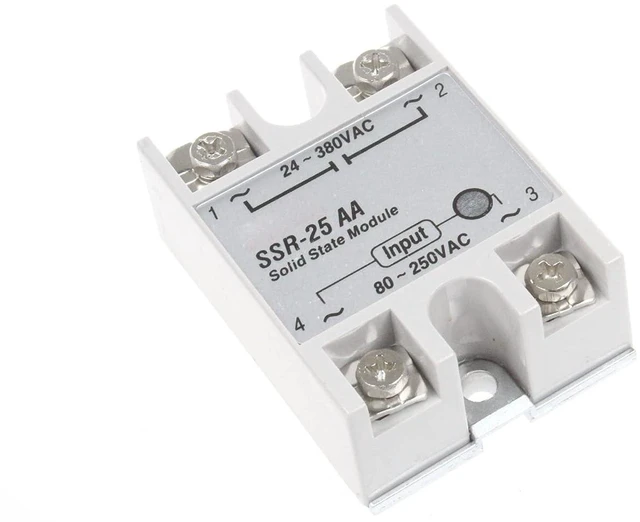

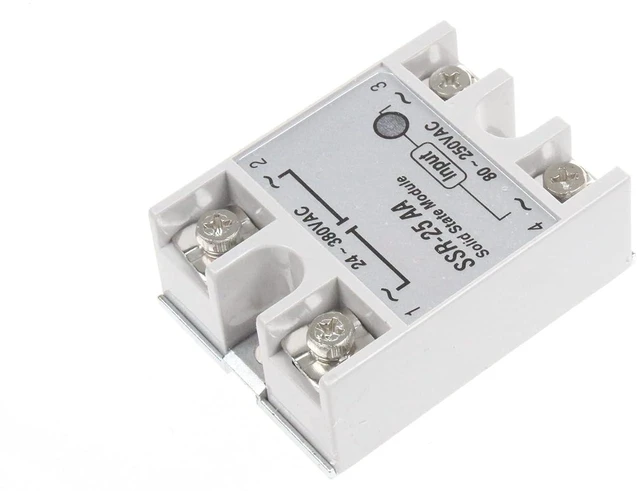

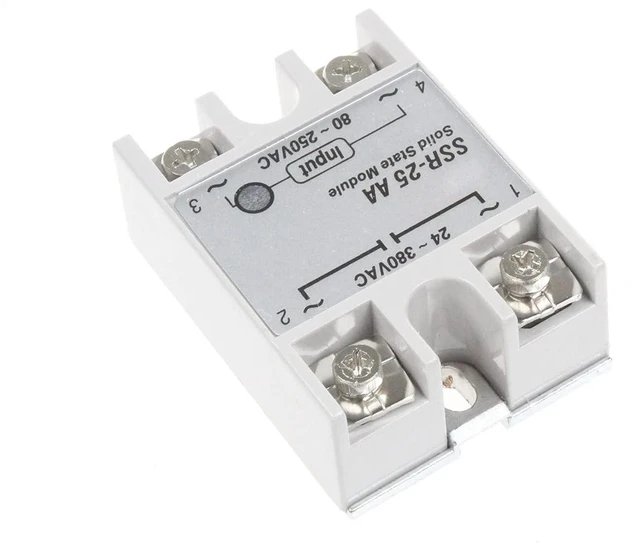

SSR-25AA Solid State Relay Input 80-250V AC Control AC 24V-380V
- Model: SSR-25AA Input 80-250V Output 24V-380V; Item size: 6. 2 x 4. 5 x 2. 3cm/ 2. 4 x 1. 8 x 0. 9inch(L*W*H); Control method: AC to AC , Switching time: 10ms
+
+
Overview
Specs
Reviews
Feature:
1. High reliability, high efficiency and long lifespan
2. No electric spark, no noise and no contact
3. Fine electro magnetic interference, high sensitivity and fast switching speed
4. Low drive voltage and current
5. Unique shape and novel structure
6. Especially suitable for corrosion, moisture, dust resistant and other harsh environments
7. Widely used in many automatic control systems
Specification: This is solid state relay SSR-25AA.
Model: SSR-25AA
INPUT: Control
voltage: AC 80-250V.
Control current: 3-35mA.
LOAD: Load
voltage: AC 24-380V;
Maximum current: 25A. On-off time10ms. On-state step-down 1.6V.
Working ambient temperature: -30 to +70.
Control method: AC to
AC Switching time: 10ms
Package Included: 1Pcs SSR-25AA Solid State Relay
1. High reliability, high efficiency and long lifespan
2. No electric spark, no noise and no contact
3. Fine electro magnetic interference, high sensitivity and fast switching speed
4. Low drive voltage and current
5. Unique shape and novel structure
6. Especially suitable for corrosion, moisture, dust resistant and other harsh environments
7. Widely used in many automatic control systems
Specification: This is solid state relay SSR-25AA.
Model: SSR-25AA
INPUT: Control
voltage: AC 80-250V.
Control current: 3-35mA.
LOAD: Load
voltage: AC 24-380V;
Maximum current: 25A. On-off time10ms. On-state step-down 1.6V.
Working ambient temperature: -30 to +70.
Control method: AC to
AC Switching time: 10ms
Package Included: 1Pcs SSR-25AA Solid State Relay
