8-Channel Relay Module High Low Level Trigger with OPTO-Isolated Load DC 30V AC 250V 10A for PLC Automation Equipment Control Industrial Control (8 Channel 24V)
- Module uses high-quality relay, normally open interface maximum load: AC 250V / 10A, DC 30V / 10A;; SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA;; Each channel of the module can be set by jumper cap high or low level trigger;; Module Power Supply : DC 5V / 12V / 24VModule supply voltage must be DC, and the voltage to be consistent with the relay voltage.. Power indicator (green), 8 channels relay status indicator (red); Manufacturer's one-year after-sale warranty
+
+
Overview
Specs
Reviews
Electrical parameters: Supply
voltage: DC5V / 12V / 24V;
Trigger mode: High / Low Level Trigger;
Load voltage: DC 30V / AC 250V;
Load current: 10A;
Product weight: 120g;
Size: 141.5 x50x 18.5 mm (LxWxH);
Mounting hole size: 136x 44.5 (LxW);

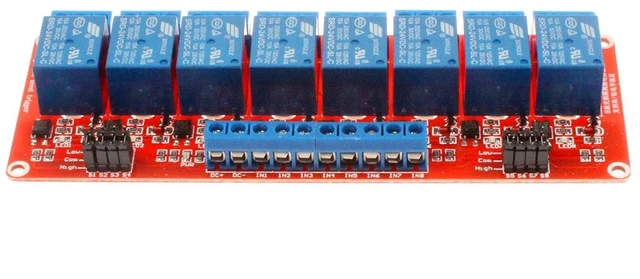

Module Interface: 1, DC
+: Power supply Positive. (Module supply voltage must be DC, and the voltage to be consistent with the relay voltage. ) 2, DC
-: Power supply negative.
3,
IN1-IN8: According to the setting of each way, it can control the corresponding relay to be high or low.

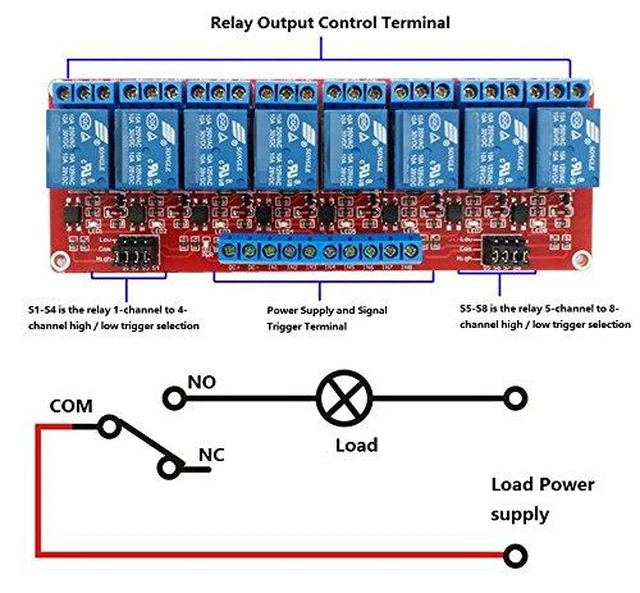

Relay output: All interfaces can be directly connected, user-friendly 1, NO1 -
NO8: relay normally open interface; 2, COM1 -
COM8: relay common interface; 3, NC1 -
NC8: normally closed relay interface; High / Low
Trigger Select: 1. S1-S8 is the relay 1-channel to 8-channel high / low trigger selection; 2. COM and Low connected, the relay is low-level trigger; COM and High connected. the relay is high-level trigger.;
Pacakage Included: 1x8-Channel Relay Module
voltage: DC5V / 12V / 24V;
Trigger mode: High / Low Level Trigger;
Load voltage: DC 30V / AC 250V;
Load current: 10A;
Product weight: 120g;
Size: 141.5 x50x 18.5 mm (LxWxH);
Mounting hole size: 136x 44.5 (LxW);
Module Interface: 1, DC
+: Power supply Positive. (Module supply voltage must be DC, and the voltage to be consistent with the relay voltage. ) 2, DC
-: Power supply negative.
3,
IN1-IN8: According to the setting of each way, it can control the corresponding relay to be high or low.
Relay output: All interfaces can be directly connected, user-friendly 1, NO1 -
NO8: relay normally open interface; 2, COM1 -
COM8: relay common interface; 3, NC1 -
NC8: normally closed relay interface; High / Low
Trigger Select: 1. S1-S8 is the relay 1-channel to 8-channel high / low trigger selection; 2. COM and Low connected, the relay is low-level trigger; COM and High connected. the relay is high-level trigger.;
Pacakage Included: 1x8-Channel Relay Module
