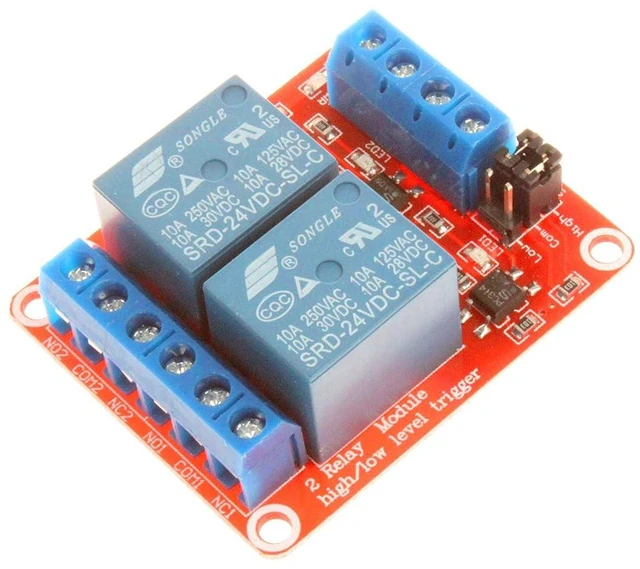

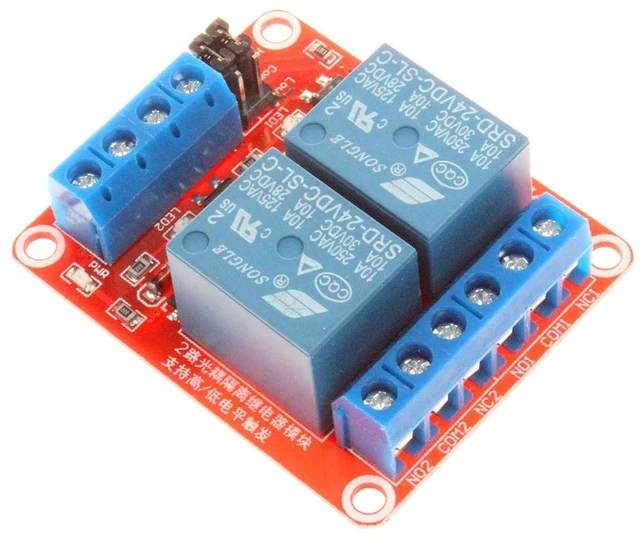

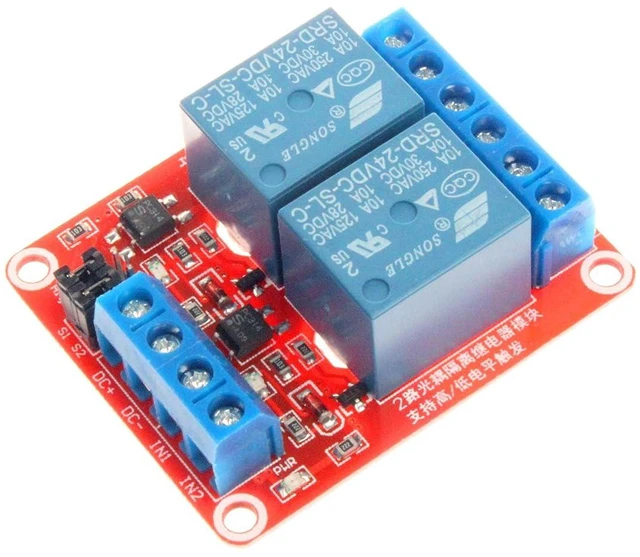

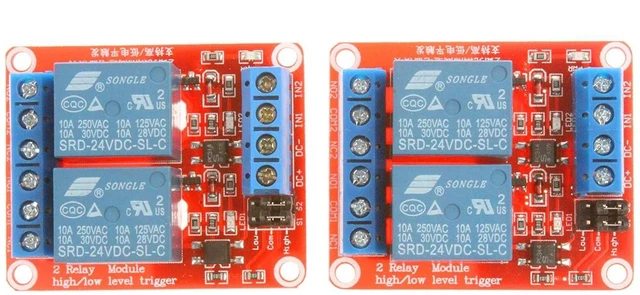

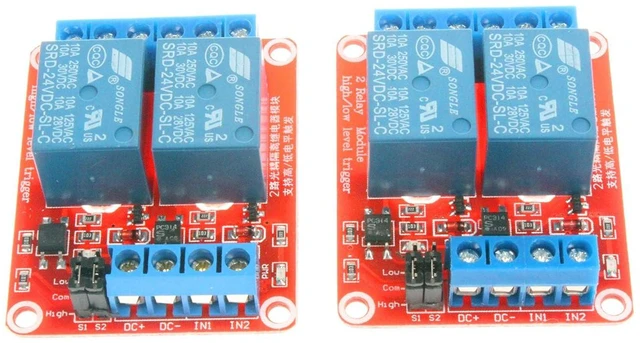

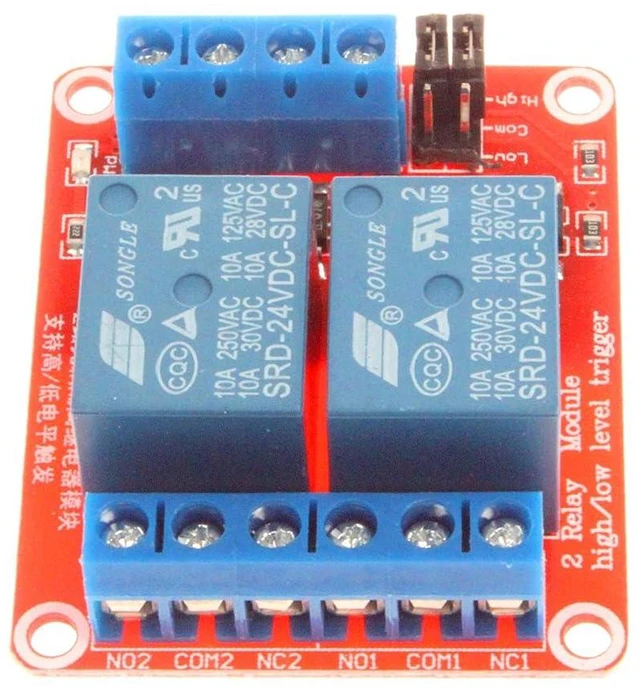

2 Channel Relay Module with Isolated Optocoupler 5V 12V 24V High Low Level Trigger Module Triggered (Pack of 2) (12V, Red)
- Can be set high or low level trigger with jumper cap, to meet the demand of more trigger applications;; With patch optical isolation, strong drive ability and stable performance;; Interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient ;; Fault-tolerant design , even if the control line is broken , the relay will not operate ;; There are three sizes of products to choose from, DC5V / 12V / 24V. For the technical parameters of each specification, please read the product description .
+
+
Overview
Specs
Reviews
Description:
1. The module uses high quality relay, normally open interfaces
Maximum load: AC 250V/10A, DC 30V/10A;
2. The power indicator (green), relay status indicator (red)
3.
Module size: 50mm * 41mm * 18.5 mm (L * W * H)
4. Has four mounting bolts holes, hole 3.1 mm, 44.5 mm * 35.5 mm pitch
Technical Parameters: 5V
relay version: Quiescent
current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Low level trigger voltage: 0- 1.5V
High level trigger voltage: 2.5
-5V 12V relay version: Quiescent
current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Low level trigger voltage: 0-4V
High level trigger voltage: 4.5
-12V 24V relay version: Quiescent
current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Low level trigger voltage: 0-8V
High level trigger voltage: 8.5 -24V
Module Interface: 1.
DC +: positive power supply 2.
DC-: negative power supply 3. IN 1: 1 channel signal to trigger side, you can set a high or low level control relay 4. IN 2: 2 -channel signal to trigger side, you can set a high or low level control relay
Relay Outputs: 1. NO 1: 1 -channel normally open interface 2. COM 1: 1 -channel relay common interface 3. NC 1: 1 -channel normally closed interface 4. NO 2: 2 -channel normally open interface 5. COM 2: 2 -channel relay common interface 6. NC 2: 2 -channel normally closed interface
Pacakge Included: 2pcs NOYITO 2 Channel Relay Module
1. The module uses high quality relay, normally open interfaces
Maximum load: AC 250V/10A, DC 30V/10A;
2. The power indicator (green), relay status indicator (red)
3.
Module size: 50mm * 41mm * 18.5 mm (L * W * H)
4. Has four mounting bolts holes, hole 3.1 mm, 44.5 mm * 35.5 mm pitch
Technical Parameters: 5V
relay version: Quiescent
current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Low level trigger voltage: 0- 1.5V
High level trigger voltage: 2.5
-5V 12V relay version: Quiescent
current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Low level trigger voltage: 0-4V
High level trigger voltage: 4.5
-12V 24V relay version: Quiescent
current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Low level trigger voltage: 0-8V
High level trigger voltage: 8.5 -24V
Module Interface: 1.
DC +: positive power supply 2.
DC-: negative power supply 3. IN 1: 1 channel signal to trigger side, you can set a high or low level control relay 4. IN 2: 2 -channel signal to trigger side, you can set a high or low level control relay
Relay Outputs: 1. NO 1: 1 -channel normally open interface 2. COM 1: 1 -channel relay common interface 3. NC 1: 1 -channel normally closed interface 4. NO 2: 2 -channel normally open interface 5. COM 2: 2 -channel relay common interface 6. NC 2: 2 -channel normally closed interface
Pacakge Included: 2pcs NOYITO 2 Channel Relay Module
