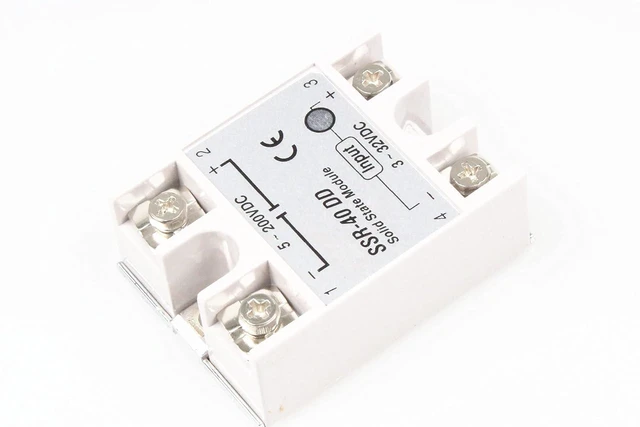

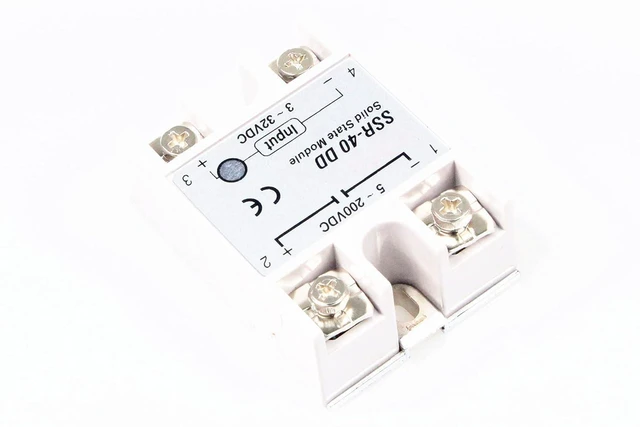

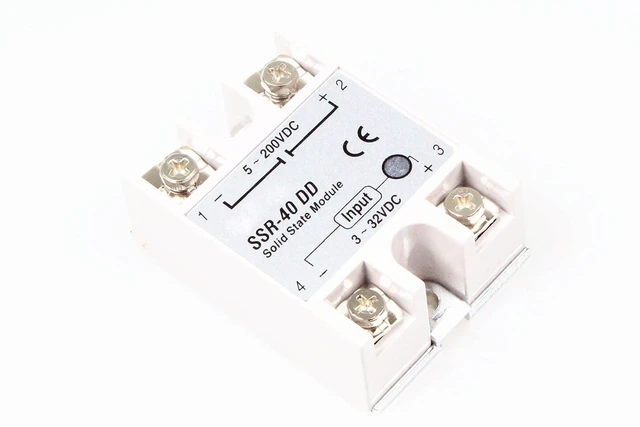

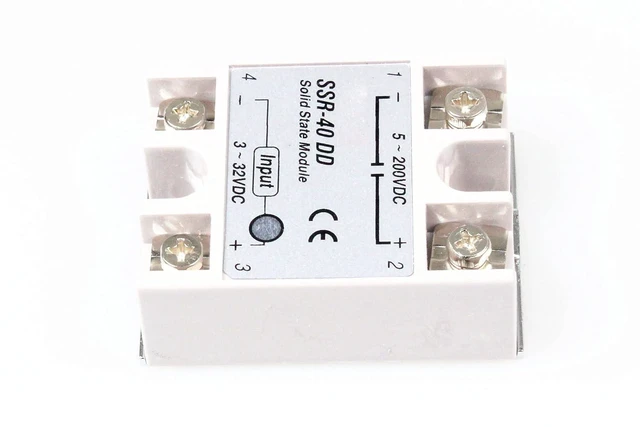

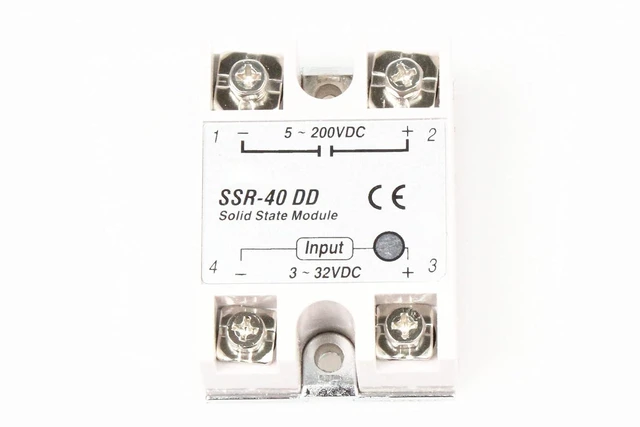

SSR-40DD 40A Single Phase Contactless Mute Solid State Relay DC Control DC Input Control Voltage DC3-32V Control Load Voltage DC 5-200V
- Product Name: NOYITO SSR-40DD 40A Single Phase Solid State Relay / DC Control DC.; Input control voltage: DC 3 - 32V.; Control load voltage: DC 5 - 200V.; Max Load current : 40Amp .With work indicator.; Product weight: 95 grams. Product size: 62x45x24mm (LWH). Mounting hole diameter: 4.8mm. Mounting hole spacing: 48mm.
+
+
Overview
Specs
Reviews
Product
Current: 40A.
Resistive load using current: 10A.
Resistive load power: 2000 watts.
Inductive load using current: 3A.
Inductive load: 660 watts. Choose products with different specifications according to different loads (factor: resistive load is 2 times, inductive load is 6 times).
for example: Example
1: A heater with a rated current of 15A, the heater is a resistive load, so it should be 15Ax2=30A, and a 40A solid state relay should be purchased.
Example 2: A motor with a rated current of 15A, the motor is an inductive load, then it should be 15Ax6=90A, and a 100A solid state relay should be purchased.
Product parameters: Product
Name: NOYITO Single Phase Solid State Relay / DC Control DC.
Input control voltage: DC 3 - 32V.
Control terminal load voltage: DC 5 - 200V.
Trigger current: 3-35 mA. On-state step-down 1.6V. On-off time10ms.
Operating ambient temperature: -22°F - +160°F.
Product weight: 95 grams.
Product size: 62x45x24mm (LWH).
Mounting hole diameter: 4.8 mm.
Mounting hole spacing: 48mm.
Package Included: 1pcs NOYITO Single Phase Solid State Relay
Specifications
: SSR-40DDCurrent: 40A.
Resistive load using current: 10A.
Resistive load power: 2000 watts.
Inductive load using current: 3A.
Inductive load: 660 watts. Choose products with different specifications according to different loads (factor: resistive load is 2 times, inductive load is 6 times).
for example: Example
1: A heater with a rated current of 15A, the heater is a resistive load, so it should be 15Ax2=30A, and a 40A solid state relay should be purchased.
Example 2: A motor with a rated current of 15A, the motor is an inductive load, then it should be 15Ax6=90A, and a 100A solid state relay should be purchased.
Product parameters: Product
Name: NOYITO Single Phase Solid State Relay / DC Control DC.
Input control voltage: DC 3 - 32V.
Control terminal load voltage: DC 5 - 200V.
Trigger current: 3-35 mA. On-state step-down 1.6V. On-off time10ms.
Operating ambient temperature: -22°F - +160°F.
Product weight: 95 grams.
Product size: 62x45x24mm (LWH).
Mounting hole diameter: 4.8 mm.
Mounting hole spacing: 48mm.
Package Included: 1pcs NOYITO Single Phase Solid State Relay
