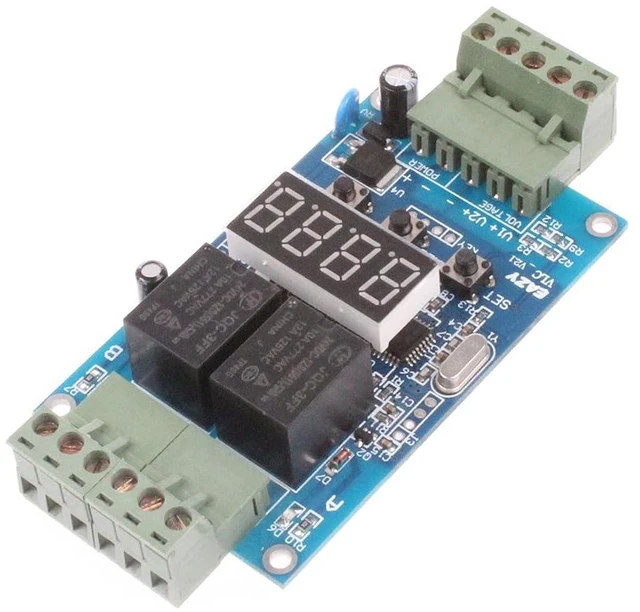

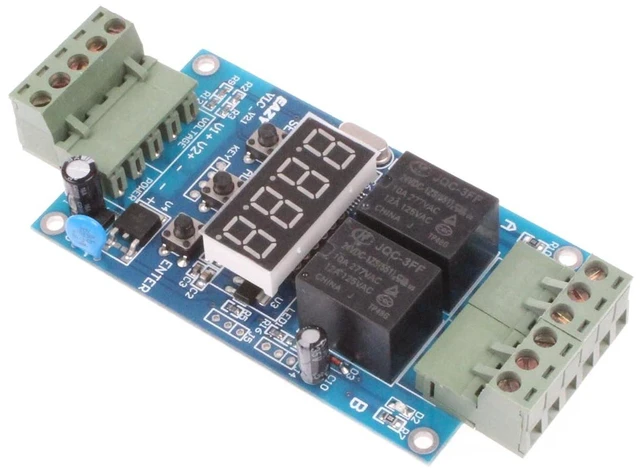

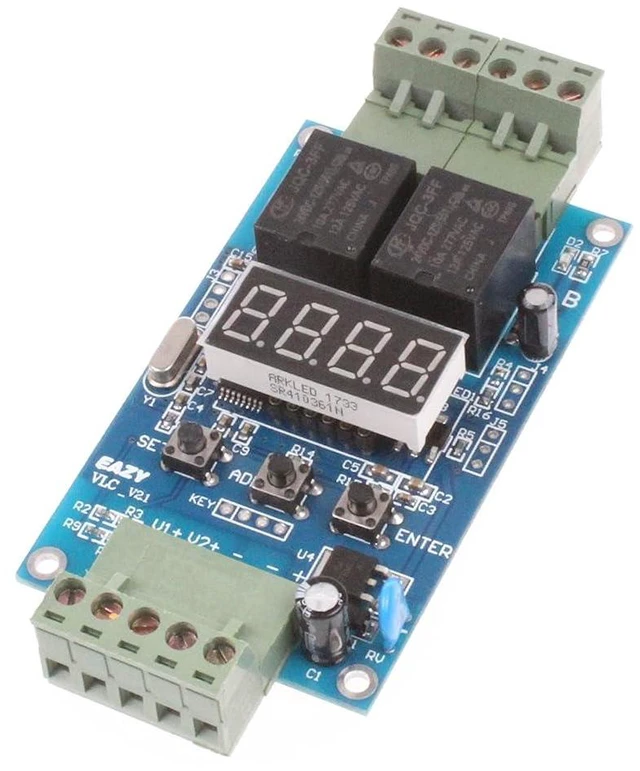

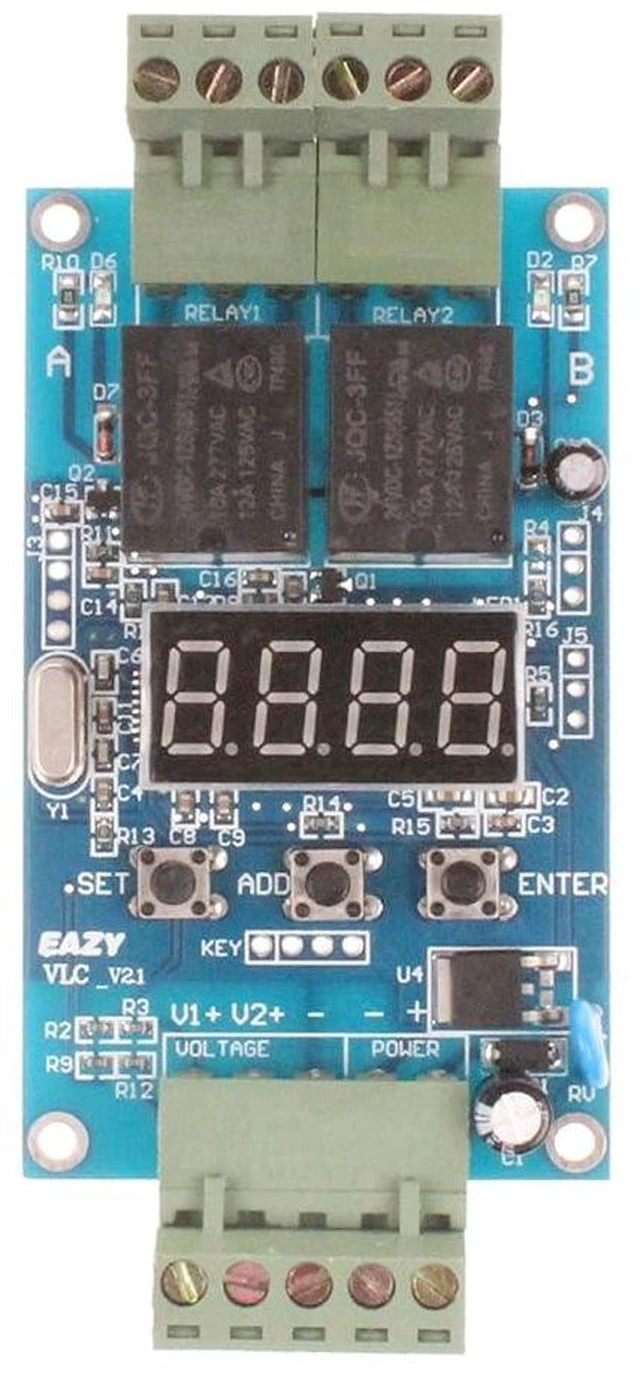

30-Step Programmable Time Relay Control Board Multi-Segment Setting ON Off Switch Multi-Group Timing 2-Channel Control Board (12V)
- The 30-Step controller can be set 30 groups time (steps), each step the relay switch state can be set to ON or OFF, use external input voltage or switch signal user can realize a variety of control function. The controller can be used to control two solenoid valve linkage (control pneumatic equipment), motor reversing, dual load intermittent work, etc.; Digital LED display, set by three buttons, easy to use, has reset function.; High-performance microcontrollers, industrial-grade reliability, high process stability, low power, digital display can be shut automatically, the minimum operating current at 7mA/12V, with reverse power protection , surge current shock protection .; Each group of relay has common and normally open, normally close contacts, two sets of conversion; 30 groups time, each timer range: 0.1 seconds ~ 9999 minutes adjustable, the total number of cycles are adjustable from 0 to 9999 ( 0 means run loops all the time ) ; High level signal trigger launch, or forcing relay close/open. All settings can be saved.
+
+
Overview
Specs
Reviews
NOYITO 30-Step Programmable Time Relay Control Board User manual https: //1drv. ms/b/c/4a0865b22350d05c/IQCaLQpBpdOSSKZCQX4HlTcxAWFdqkiX1qaRbNeQ39_UOiA? e=GzFWH3 Features
1. Digital LED display, set by three buttons, easy to use, has reset function.
2. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, digital display can be shut automatically, the minimum operating current at 7mA/12V, with reverse power protection, surge current shock protection.
3. Each group of relay has common and normally open, normally close contacts, two sets of conversion; 4. 30 groups time, each
timer range: 0.1 seconds ~ 9999 minutes adjustable, the total number of cycles are adjustable from 0 to 9999 ( 0 means run loops all the time );
5. High level signal trigger launch, or forcing relay close/open;
6. All settings can be saved.
Parameter: Timing
Range: 0.1 seconds ~ 9999 minutes can be set, cycles 0 ~ 9999 times
Operating power: DC10~16V (DC18~28V optional)
Relay parameters: Coil
voltage: DC 12V (DC24V Optional) Two set of conversion (normally open and normally closed)
Contact load: 10A/277V AC or 10A/30V
DC Contact resistance: 100m (1A 6VDC)
Mechanical durability: 10 millions
Electricity durability: > 100, 000 (10A-250VAC)
Operating Temperature: -40 ~ 85 Set LED displays OFF, the minimum current values are 7mA/12V (relay open)
Package Included: 1pcs Programmable Time Relay
1. Digital LED display, set by three buttons, easy to use, has reset function.
2. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, digital display can be shut automatically, the minimum operating current at 7mA/12V, with reverse power protection, surge current shock protection.
3. Each group of relay has common and normally open, normally close contacts, two sets of conversion; 4. 30 groups time, each
timer range: 0.1 seconds ~ 9999 minutes adjustable, the total number of cycles are adjustable from 0 to 9999 ( 0 means run loops all the time );
5. High level signal trigger launch, or forcing relay close/open;
6. All settings can be saved.
Parameter: Timing
Range: 0.1 seconds ~ 9999 minutes can be set, cycles 0 ~ 9999 times
Operating power: DC10~16V (DC18~28V optional)
Relay parameters: Coil
voltage: DC 12V (DC24V Optional) Two set of conversion (normally open and normally closed)
Contact load: 10A/277V AC or 10A/30V
DC Contact resistance: 100m (1A 6VDC)
Mechanical durability: 10 millions
Electricity durability: > 100, 000 (10A-250VAC)
Operating Temperature: -40 ~ 85 Set LED displays OFF, the minimum current values are 7mA/12V (relay open)
Package Included: 1pcs Programmable Time Relay
