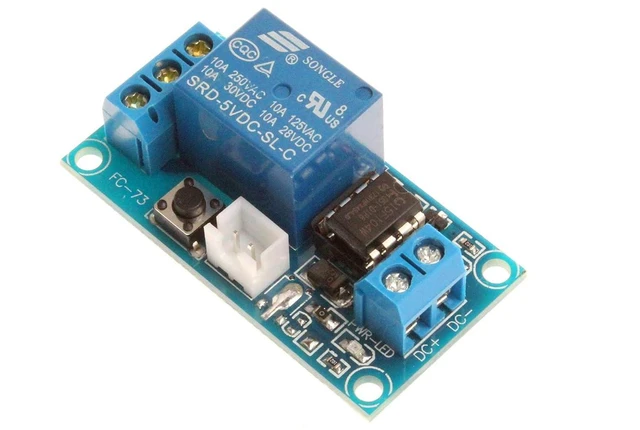

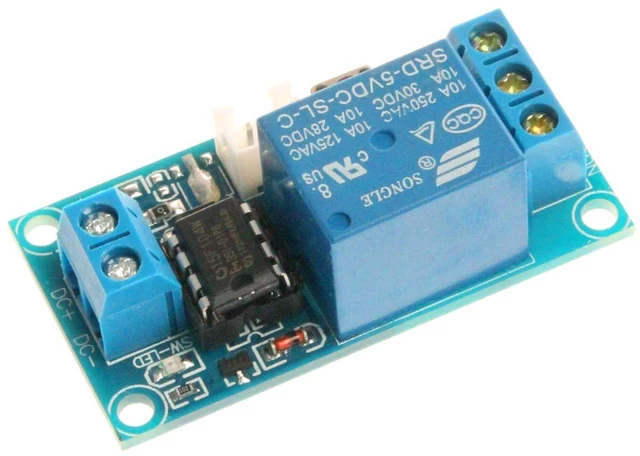

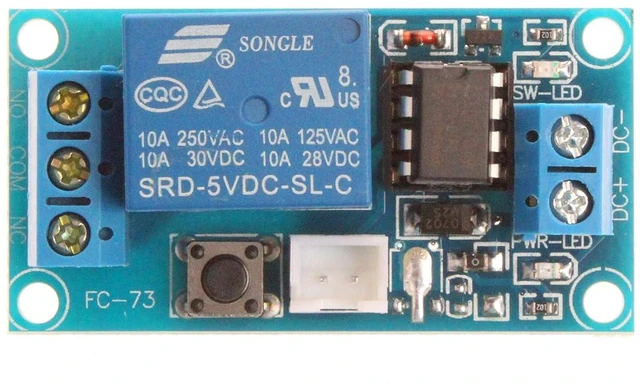

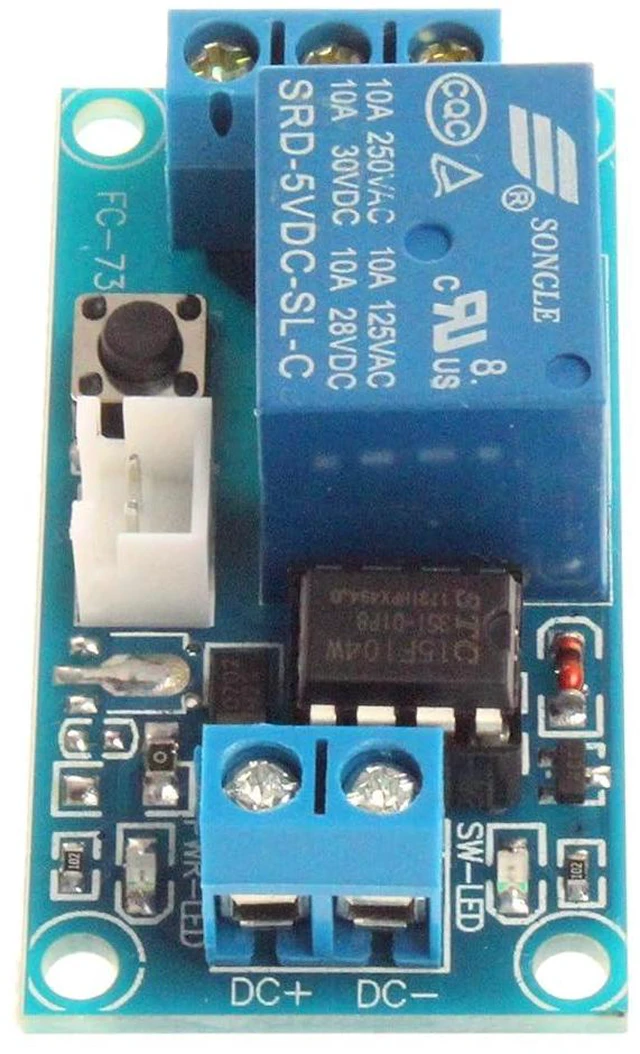

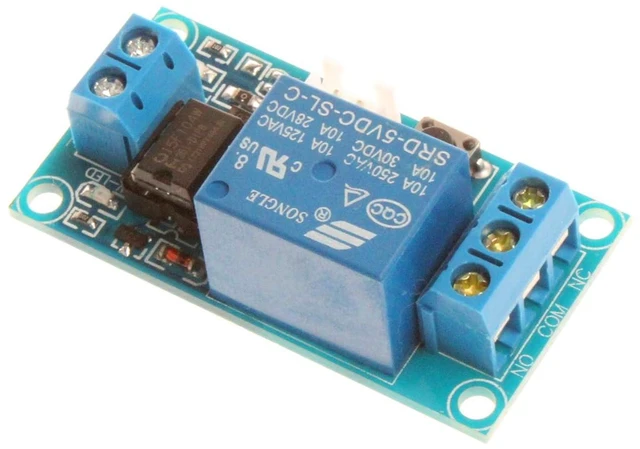

1-Channel Self-Locking Relay Module One Button Start-Stop Bistable 10A Load for SCM Control, Household Appliances Control, Industrial Equipment Control (12V)

Features:
1. Using double-panel design PCB;
2. The use of single-chip control, stable and reliable performance, strong anti-interference, will not trigger by mistake, superior performance than CD4013;
3. With high-power regulator to provide adequate and stable voltage, and have enough cooling holes to ensure long-term stable and reliable products work; 4 with anti-power reverse diode protection, a short time reverse power supply without any damage to the product;
5. Use high-quality relay control load, 250V 10A (AC) and 30V 10A (DC) load can withstand; 6 with touch switch as a product test, direct test product stability;
7. Triggering can also be an external trigger switch, the product is equipped with a good terminal block and lead, more convenient to use;
Electrical parameters: Power
supply voltage: DC5V;
Supply current: more than 100mA;
Load: 250V 10A (AC) or 30V 10A (DC);
Module size: 50.5 x21x14mm (LWH)
Spacing of mounting holes: 46x17mm (LW), hole
diameter: 3.1 mm
Product instructions:
1. According to the voltage version connected to the appropriate DC power supply;
2. According to the diagram to connect the circuit, can not be reversed, although the protection circuit, but can not be reversed for a long time; 3. Product use of regulator (5V no regulator) slightly fever, is a normal phenomenon, the relay has a long working hours normal fever, are normal;
4. Load power To give the relay load left a certain margin, should avoid high-power (2000W or so) and long working the product life will have a certain impact.

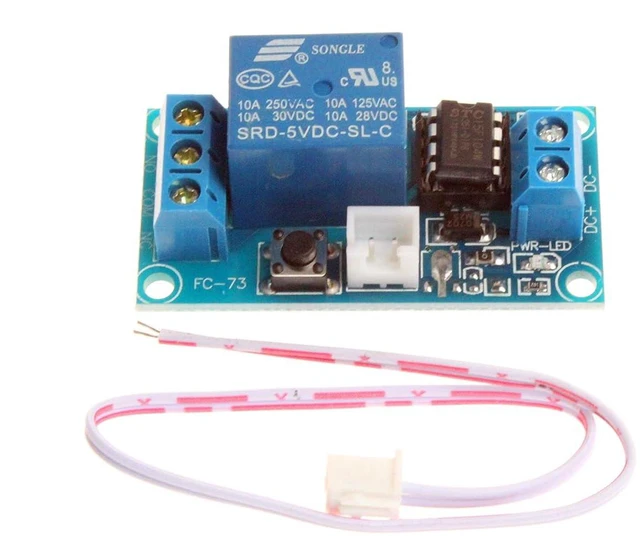

Pacakge Included: 1Pcs NOYITO 1-Channel Self-locking Relay Module
