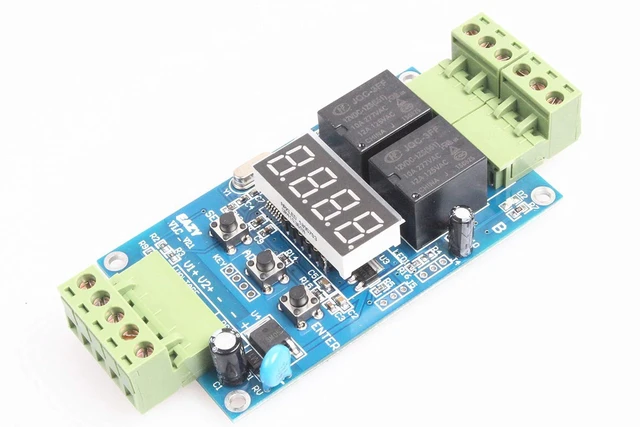

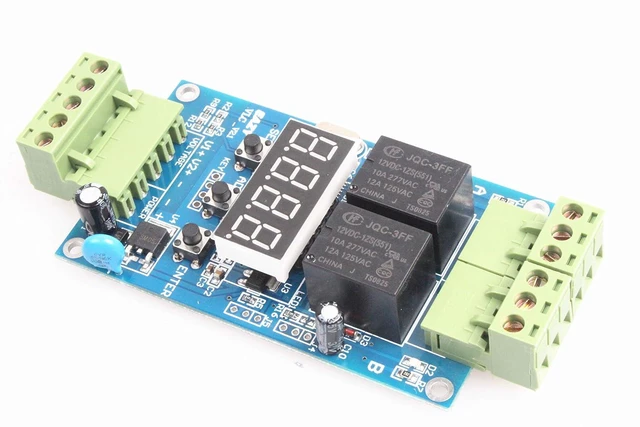

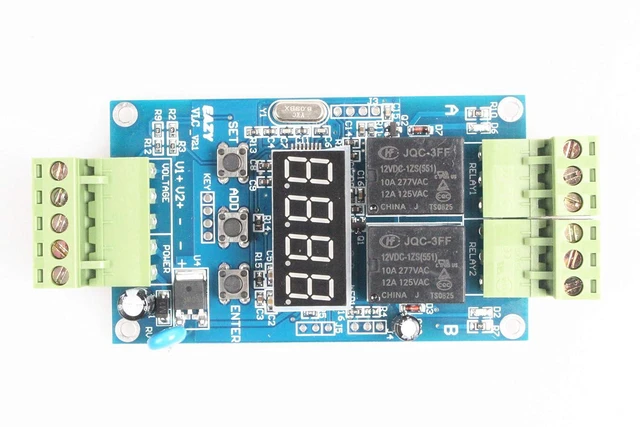

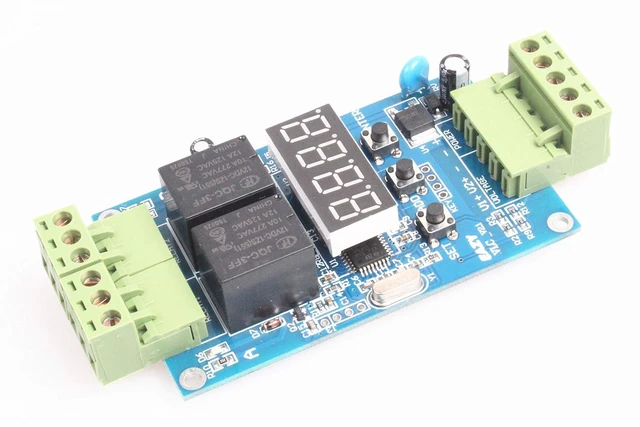

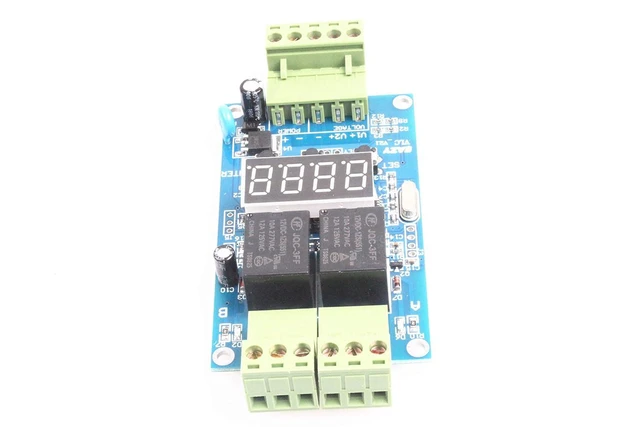

2-Channel Programmable Time Relay Module Dual Relays Triggered in Turn or Individually 2-Channel 0-99.9V Voltage Detection Control Board Cyclic Timing On Off (24V)
Limited time offer, ends 11/01 By Kepler Forge
- The VLC2.0 controller can perform a variety of control functions by adjusting the timer, each time relay can run individually, there also can run in turn, dual time relay can be controlled by detect dual channel voltage.; Such as control two loads simultaneously or alternately ON/OFF, single-phase motor positive and reversion according to the timing, or DC motor positive and reversion, or dual solenoid valve timing work in rotation (controlled pneumatic) or dual alternating bright lights etc.; Digital LED displays, set by three keys, simple, powerful, with reset settings function. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, digital displays can be automatically off , the minimum operating current at 7mA/12V, with reverse power protection , surge current shock protection .; Each group of relay contacts to a common and normally open, normally close, two sets of conversion; Dual time relay, timer range: 0.1 seconds ~ 9999 minutes adjustable, close/ open cycles is adjustable from 0 to 999 ( 0 means infinite loops ) , timer relays can be set to close first or open first;
+
+
Overview
Specs
Reviews
NOYITO 2-Channel Programmable Time Relay Module User
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBKBAEAAAAA
AagivsdFC45ao4yazSbmy7s? e=7luP4E
Product Features:
1. Digital LED displays, set by three keys, simple, powerful, with reset settings function. 2. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, digital displays can be automatically off, the minimum operating current at 7mA/12V, with reverse power protection, surge current shock protection.
3. Each group of relay contacts to a common and normally open, normally close, two sets of conversion;
4. Dual time relay, timer
range: 0.1 seconds ~ 9999 minutes adjustable, close/ open cycles is adjustable from 0 to 999 ( 0 means infinite loops ), timer relays can be set to close first or open first;
5. Dual relay can take turns running, after the end of timer relay A then timer relay B began to run, turn the cycle, the timer can be triggered by high level or switch to start and forced stop (P-3 mode ); Parameters
Timer Range: 0.1 seconds - 9999 minutes can be set, cycles 0 ~ 999 times; Voltage detection and voltmeter display range: DC 0-99. 9 V± 0.1V;
Operating Power: DC10-16V
Relay parameters: Coil
Voltage: DC 12V Two set of conversion (normally open and normally close)
Contact load: 10A/277V AC or 10A/30V
DC Contact resistance: 100m (1A 6VDC)
Mechanical durability: 10 millions
Electricity durability: 100, 000 (10A-250VAC)
Operating Temperature: -40 - 85 Set display off, the minimum current values are 7mA/12V (relay released)
Package Included: 1Pcs NOYITO 2-Channel Programmable Time Relay Module
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBKBAEAAAAA
AagivsdFC45ao4yazSbmy7s? e=7luP4E
Product Features:
1. Digital LED displays, set by three keys, simple, powerful, with reset settings function. 2. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, digital displays can be automatically off, the minimum operating current at 7mA/12V, with reverse power protection, surge current shock protection.
3. Each group of relay contacts to a common and normally open, normally close, two sets of conversion;
4. Dual time relay, timer
range: 0.1 seconds ~ 9999 minutes adjustable, close/ open cycles is adjustable from 0 to 999 ( 0 means infinite loops ), timer relays can be set to close first or open first;
5. Dual relay can take turns running, after the end of timer relay A then timer relay B began to run, turn the cycle, the timer can be triggered by high level or switch to start and forced stop (P-3 mode ); Parameters
Timer Range: 0.1 seconds - 9999 minutes can be set, cycles 0 ~ 999 times; Voltage detection and voltmeter display range: DC 0-99. 9 V± 0.1V;
Operating Power: DC10-16V
Relay parameters: Coil
Voltage: DC 12V Two set of conversion (normally open and normally close)
Contact load: 10A/277V AC or 10A/30V
DC Contact resistance: 100m (1A 6VDC)
Mechanical durability: 10 millions
Electricity durability: 100, 000 (10A-250VAC)
Operating Temperature: -40 - 85 Set display off, the minimum current values are 7mA/12V (relay released)
Package Included: 1Pcs NOYITO 2-Channel Programmable Time Relay Module
