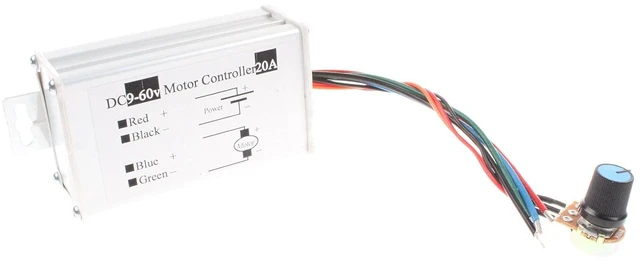

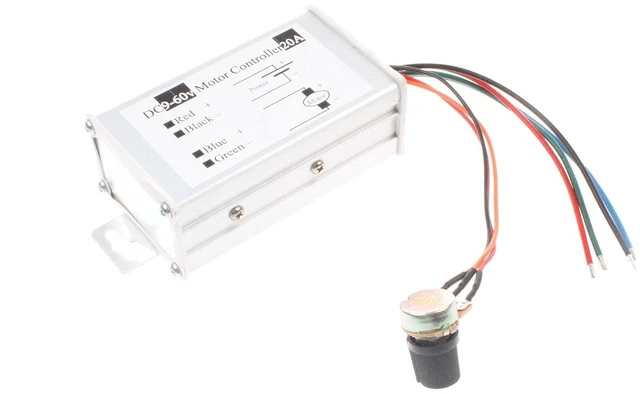

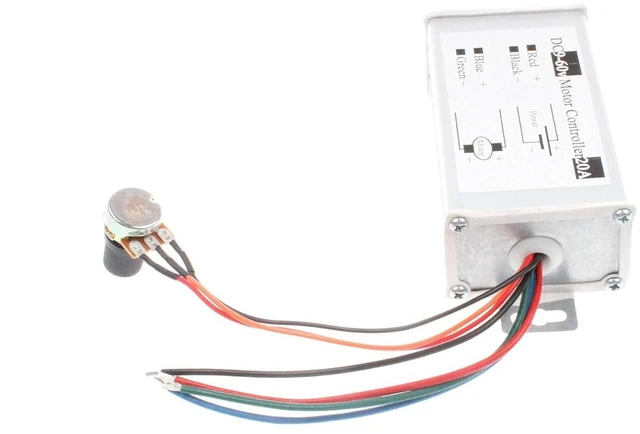

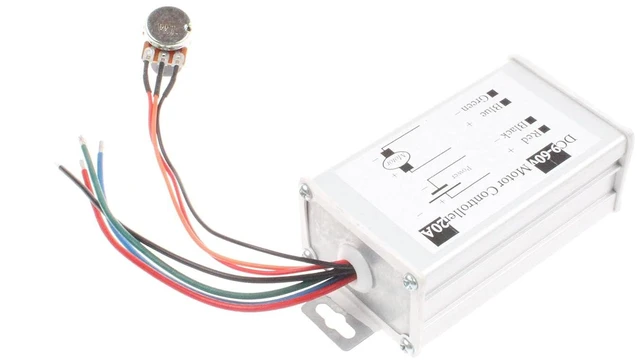

PWM Motor Speed Controller 20A DC 9V-60V 12V 24V 36V 48V Brush Motor Controller (20A)
Limited time offer, ends 10/07 By Kepler Forge
- Input voltage: DC9-60V.Output voltage: Load Linear.; Output Current: 20A. Continuous current: within 18A; Speed regulation principle: adjust the current; Adjustable speed range: 0-100%.; Operating frequency: 25KHz.
+
+
Overview
Specs
Reviews
Specification: 1.
Voltage regulation range: 9V/12V/24V/36V/48V/60V 2.
Operating voltage: DC9V-60V 3.
Speed range: 0% - 100% 4.
Output Current: 20A.
Continuous current: within 18A 5.
Speed control mode: potentiometer 6.
Speed regulation principle: adjust the current 7.
Reverse protection: Yes 8.
Size: 92 *52 *36 mmL*W*H. 9.
Weight: 126g.

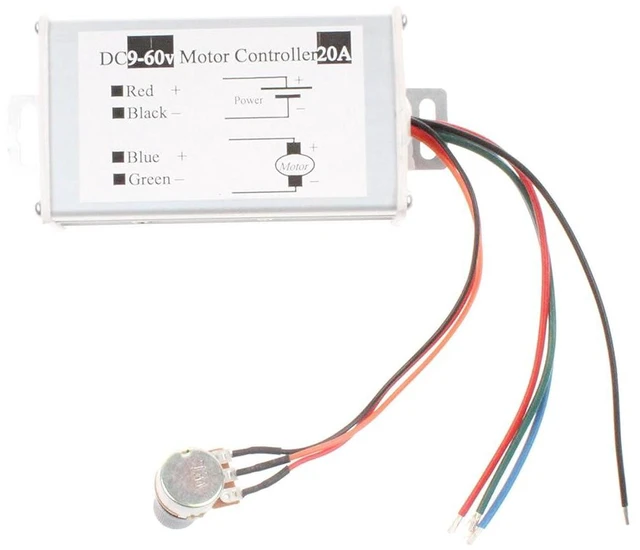

Wiring Red wire connection: Power Supply Positive +
Black wire connection: Power Supply Negative -
Blue wire connection: Motor positive +
Green wire connection: Motor negative -
Package Included: 1pcs PWM Motor Speed Controller
Voltage regulation range: 9V/12V/24V/36V/48V/60V 2.
Operating voltage: DC9V-60V 3.
Speed range: 0% - 100% 4.
Output Current: 20A.
Continuous current: within 18A 5.
Speed control mode: potentiometer 6.
Speed regulation principle: adjust the current 7.
Reverse protection: Yes 8.
Size: 92 *52 *36 mmL*W*H. 9.
Weight: 126g.
Wiring Red wire connection: Power Supply Positive +
Black wire connection: Power Supply Negative -
Blue wire connection: Motor positive +
Green wire connection: Motor negative -
Package Included: 1pcs PWM Motor Speed Controller
