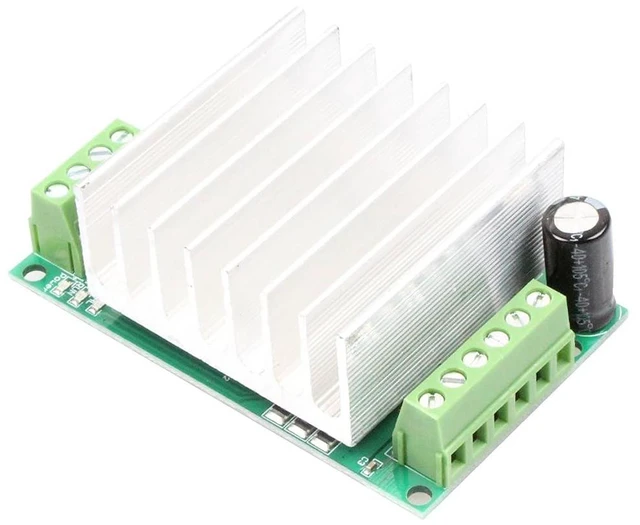

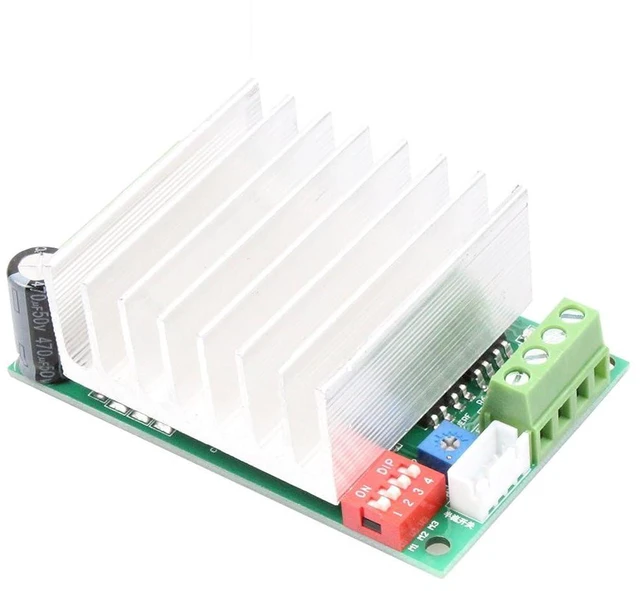

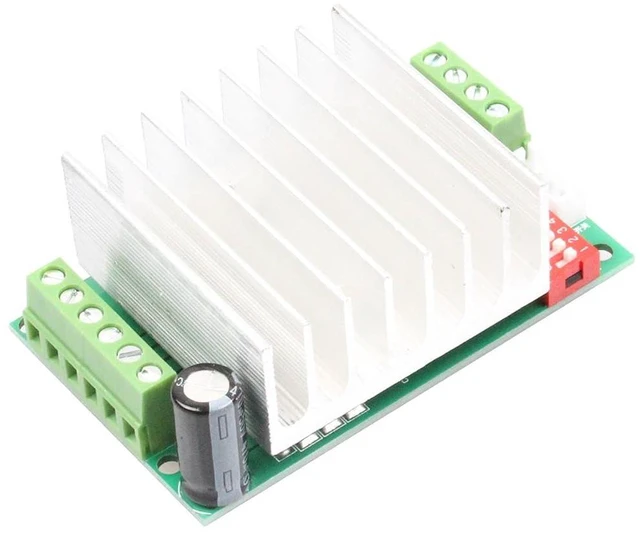

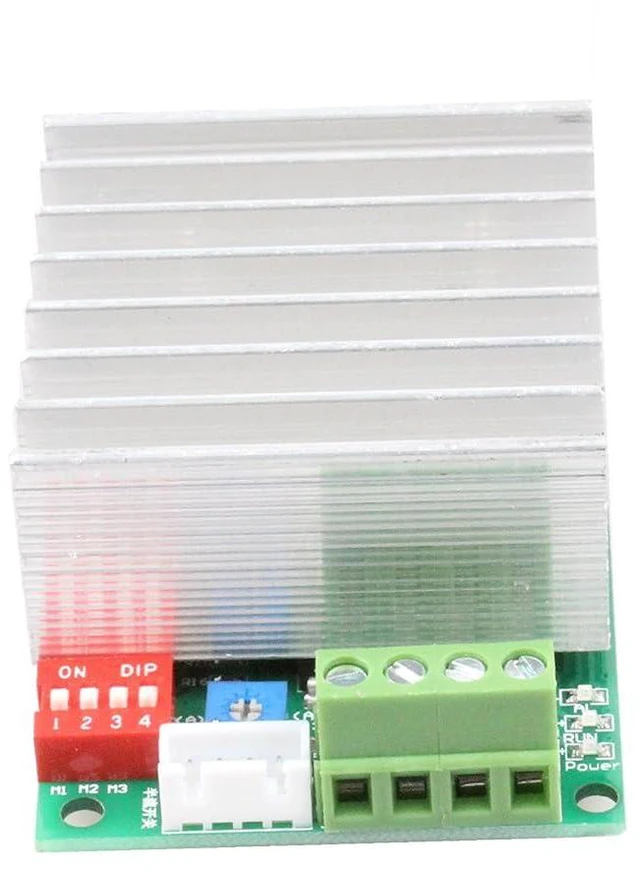

TB6600 4.5A Single-Axis Controller Stepper Motor Driver Board 10-45V

Feature: 4.5A TB6600 TB6600HG Single Axis Stepper Motor Driver Controller Replace TB6560 Operating voltage: DC 10V-45V. Recommended to use DC32V power supply switch power supply. The use of high-speed optical coupling 6N137, ensure high speed without losing step. The use of high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
Parameter Rated maximum output reached: ± 4.5A. 4.2A of 42, 57, 86 fit within the two-phase / four-phase / four-wire / six-wire stepper motor. Automatic half current function.
Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
Size: 82mm * 50mm * 35mm (L * W * H) Output current stepless adjustable to meet your various application requirements. Automatic half current function. And a semi-automatic flow switch, easy to use. The use of high-speed optical coupling 6N137, ensure high speed without losing step. Printed on the back panel are subdivided setup instructions. Used to increase the heat sink, good heat dissipation. Output short-circuit protection, the use of mind. Using common anode input mode, there are two input terminals, wiring more convenient.
Operating voltage: DC 10V-45V. It is recommended to use DC32V power supply switch power supply. The use of high-speed optical coupling 6N137, ensure high speed without losing step.
Rated maximum output reached: ± 4.5A.
Size: 82mm*50mm*35mm (L*W*H)
Package Included: 1 Pcs TB6600 Stepper Motor Driver Module
