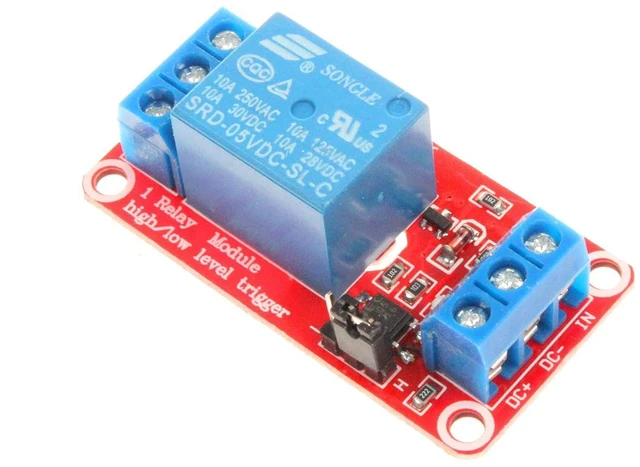

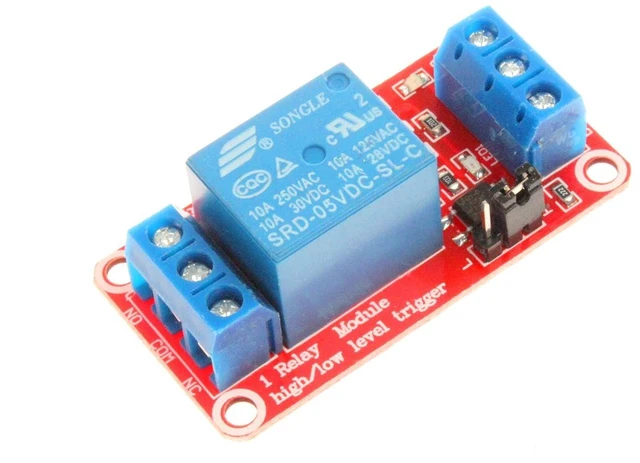

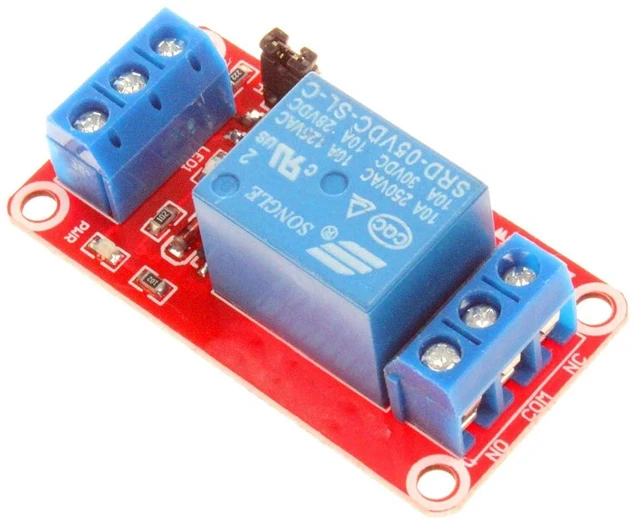

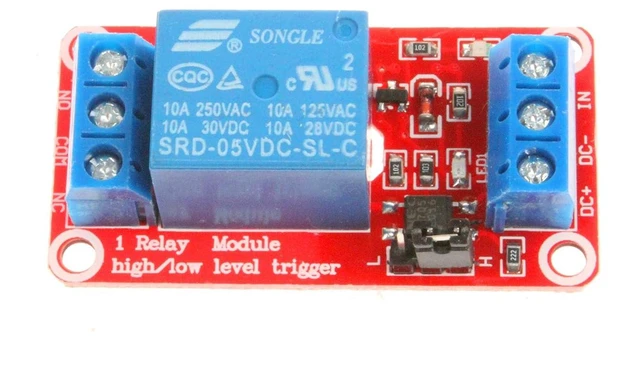

1 Channel Relay Module with Isolated Optocoupler 5V 12V 24V High Low Level Trigger Module Triggered (Pack of 3) (5V, Red)
- Can be set high or low level trigger with jumper cap, to meet the demand of more trigger applications;; With patch optical isolation, strong drive ability and stable performance;; Interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient ;; Fault-tolerant design , even if the control line is broken , the relay will not operate ;
+
+
Overview
Specs
Reviews
NOYITO 1 Channel Relay Module User manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KiwAAAAAAAW6Mtipw5C7K5pSvrK9Xslc? e=CIR
Dhw Description: The module uses high quality relay, normally open interfaces
Maximum load: AC 250V 10A, DC 30V 10A. The power indicator (green), relay status indicator (red)
Module size: 50mm x 26mm x 18.5 mm (L x W x H) Has four mounting bolts holes, hole 3.1 mm, 44.5 mm * 20.5 mm pitch
Technical Parameters: 5V
relay version: Quiescent
current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Low level trigger voltage: 0- 1.5V
High level trigger voltage: 2.5
-5V 12V relay version: Quiescent
current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Low level trigger voltage: 0-4V
High level trigger voltage: 4.5
-12V 24V relay version: Quiescent
current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Low level trigger voltage: 0-8V
High level trigger voltage: 8.5 -24V

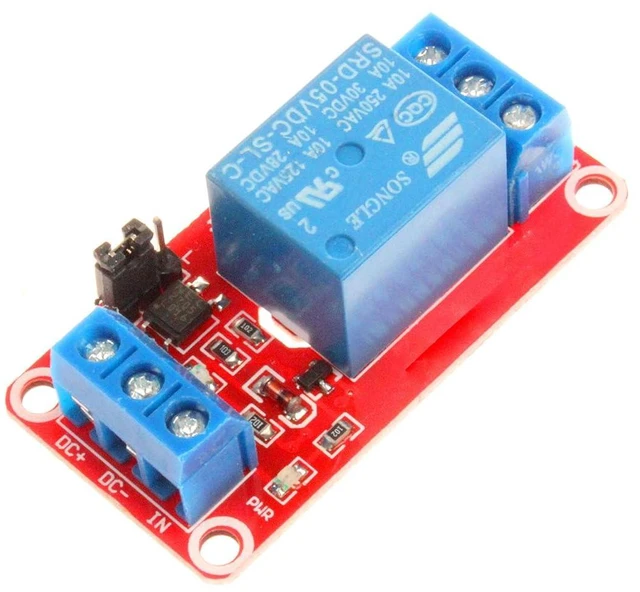

Module Interface: 1.
DC +: positive power supply 2.
DC-: negative power supply 3.
IN: 1 channel signal to trigger side, you can set a high or low level control relay
Package Included: 3pcs NOYITO 1 Channel Relay Module
KiwAAAAAAAW6Mtipw5C7K5pSvrK9Xslc? e=CIR
Dhw Description: The module uses high quality relay, normally open interfaces
Maximum load: AC 250V 10A, DC 30V 10A. The power indicator (green), relay status indicator (red)
Module size: 50mm x 26mm x 18.5 mm (L x W x H) Has four mounting bolts holes, hole 3.1 mm, 44.5 mm * 20.5 mm pitch
Technical Parameters: 5V
relay version: Quiescent
current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Low level trigger voltage: 0- 1.5V
High level trigger voltage: 2.5
-5V 12V relay version: Quiescent
current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Low level trigger voltage: 0-4V
High level trigger voltage: 4.5
-12V 24V relay version: Quiescent
current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Low level trigger voltage: 0-8V
High level trigger voltage: 8.5 -24V
Module Interface: 1.
DC +: positive power supply 2.
DC-: negative power supply 3.
IN: 1 channel signal to trigger side, you can set a high or low level control relay
Package Included: 3pcs NOYITO 1 Channel Relay Module
