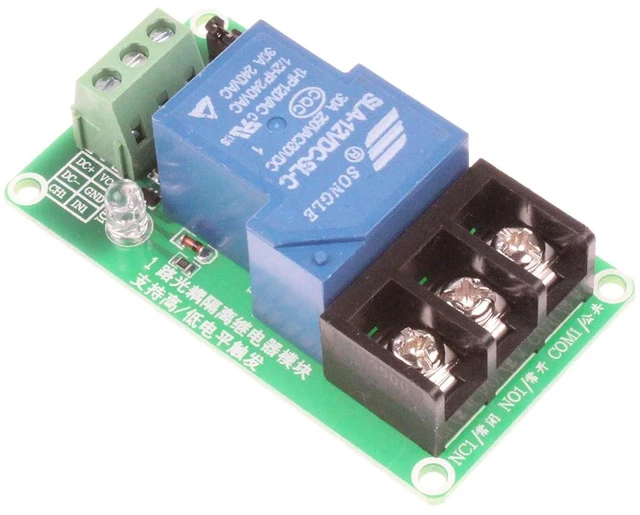

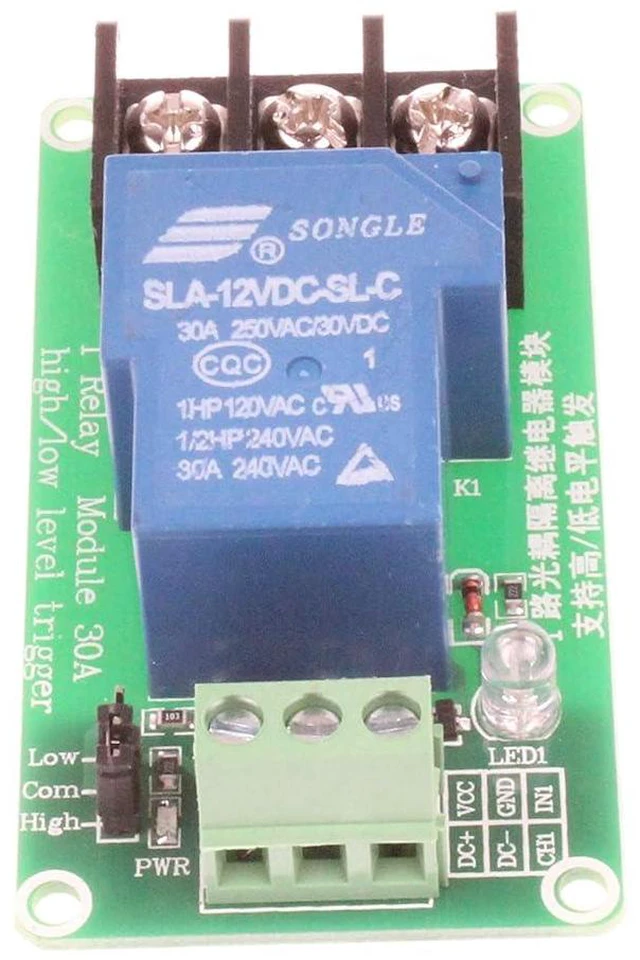

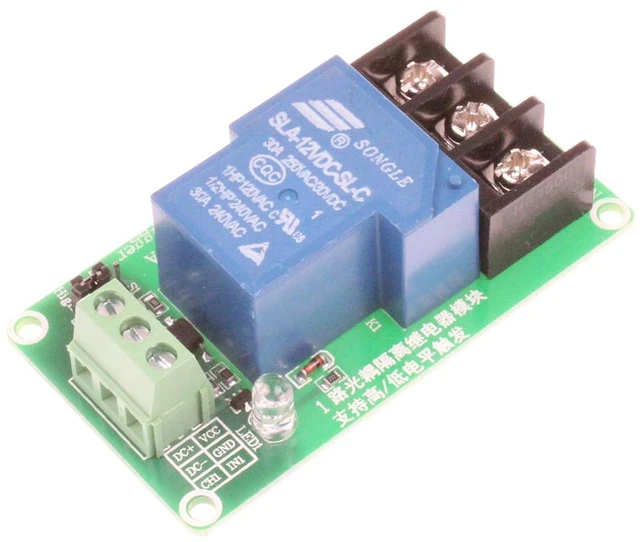

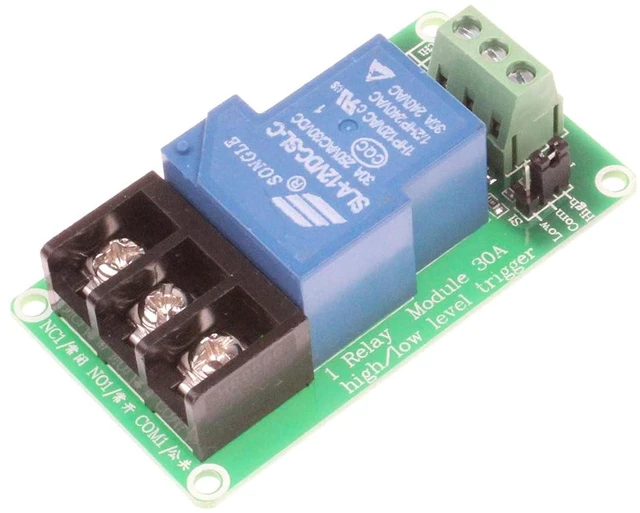

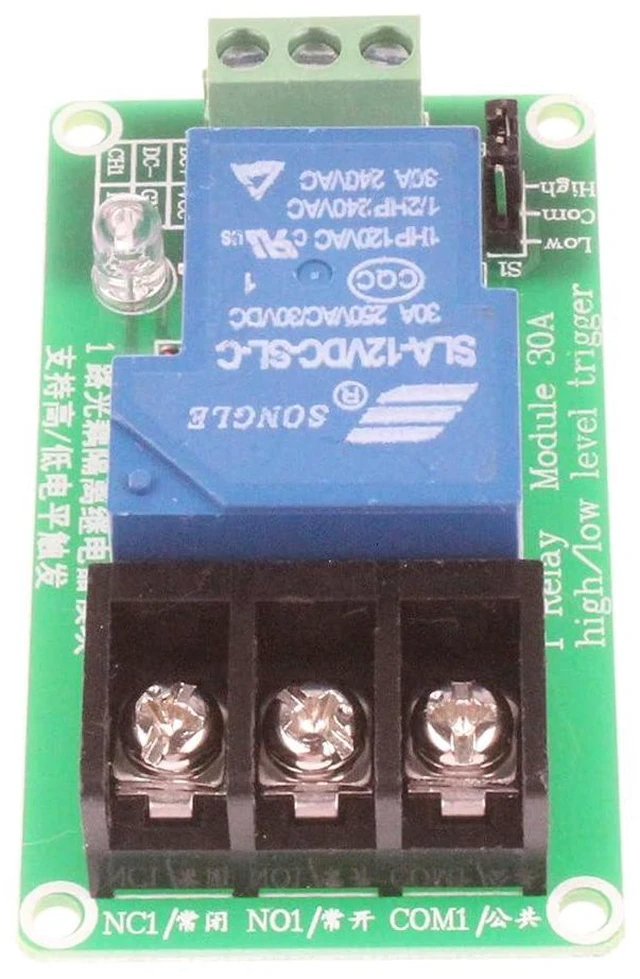

30A 1 Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 30A for PLC Automation Equipment Control Industrial Control (1 Channel 12V)
- Product Applications: PLC automation equipment control, industrial system control, Internet of Things control, electronic enthusiasts to develop experiments, all kinds of circuit modification.; Each channel with optocoupler isolation, anti-interference ability.; Using high-power relay, control the load up to 30A.; Each channel with relay on / off LED indicator.; Module load voltage: DC30V / AC 250V 30A ; Module Power Supply : DC 12VModule supply voltage must be DC, and the voltage to be consistent with the relay voltage..
+
+
Overview
Specs
Reviews
Electrical parameters: Supply
voltage: DC12V;
Quiescent current: 5mA;
Maximum working current: 190mA;
Trigger mode: High / Low Level Trigger;
Load voltage: DC 30V / AC 250V;
Load current: 30A;
Module life: 10 million times;
Switch the maximum frequency: 5KHz;
Product weight: 46g;
Size: 72x40x24mm (LxWxH);
Mounting hole size: 44.5 x 27.5 (LxW);
Trigger voltage range: High-level
trigger: DC 6-12V relay on; DC 0- 5.5V relay off; ----
Low-level trigger: DC 0-5V relay on; DC 6-12V relay off;
Pacakage Included: 1pcs 1-Channel Relay Module
voltage: DC12V;
Quiescent current: 5mA;
Maximum working current: 190mA;
Trigger mode: High / Low Level Trigger;
Load voltage: DC 30V / AC 250V;
Load current: 30A;
Module life: 10 million times;
Switch the maximum frequency: 5KHz;
Product weight: 46g;
Size: 72x40x24mm (LxWxH);
Mounting hole size: 44.5 x 27.5 (LxW);
Trigger voltage range: High-level
trigger: DC 6-12V relay on; DC 0- 5.5V relay off; ----
Low-level trigger: DC 0-5V relay on; DC 6-12V relay off;
Pacakage Included: 1pcs 1-Channel Relay Module
