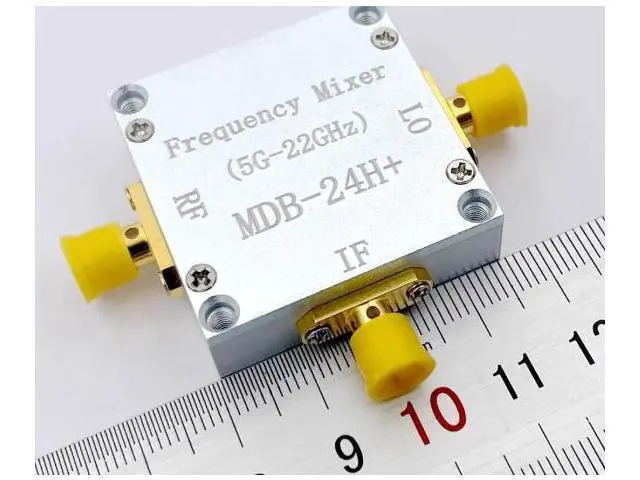

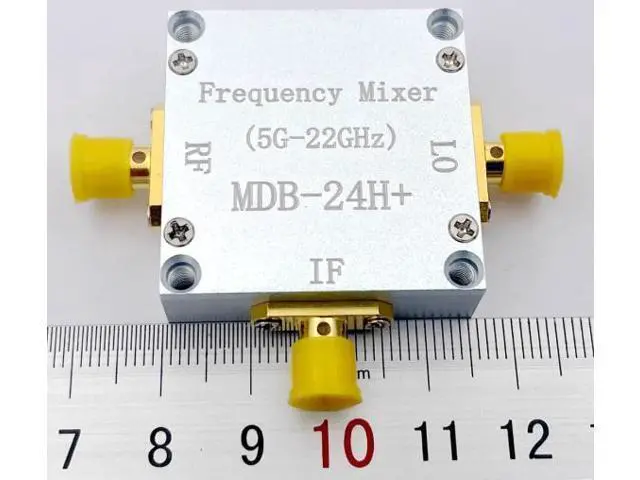

Broadband mixer Mixer MDB-24H+ 5G-22G 3.5mm SMA RF up/down converter
- Broadband mixer Mixer MDB-24H+ 5G-22G 3.5mm SMA RF up/down converter; I. Basic Indicator Parameters; RF/local oscillator operating frequency: 5G - 22G; 2. Intermediate frequency operating frequency: DC - 5G; 3. Local oscillator driving power: 15 dBm; 4. Insertion loss: 9 dB to 12 dB; 5. LO-IF Isolation: > 40 dB; 6. Input IP3: 14 - 23 dB
+
+
Overview
Specs
Reviews
Broadband mixer Mixer MDB-24H+ 5G-22G 3.5 mm SMA RF up/down converter I. Basic Indicator Parameters RF/local oscillator operating frequency: 5G - 22G
2.
Intermediate frequency operating frequency: DC - 5G
3.
Local oscillator driving power: 15 dBm
4.
Insertion loss: 9 dB to 12 dB 5.
LO-IF Isolation: > 40 dB
6. Input IP 3: 14 - 23 dB
2.
Intermediate frequency operating frequency: DC - 5G
3.
Local oscillator driving power: 15 dBm
4.
Insertion loss: 9 dB to 12 dB 5.
LO-IF Isolation: > 40 dB
6. Input IP 3: 14 - 23 dB
