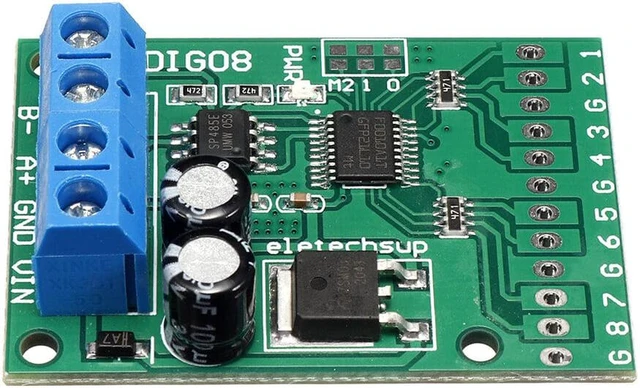

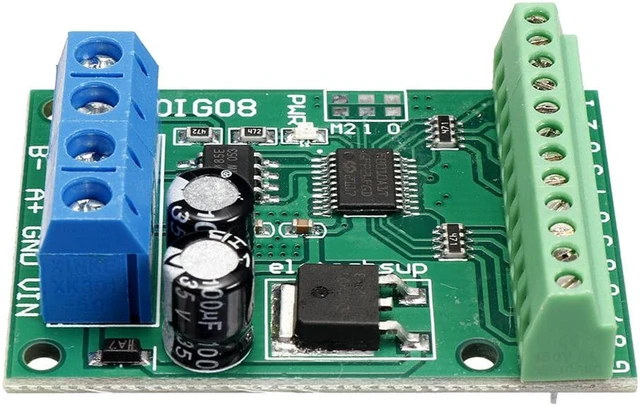

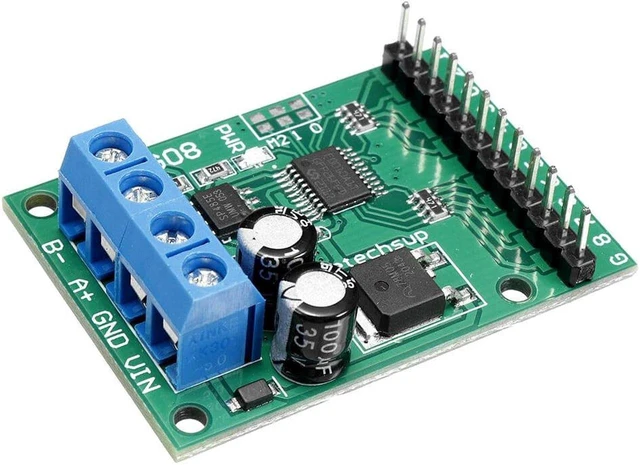

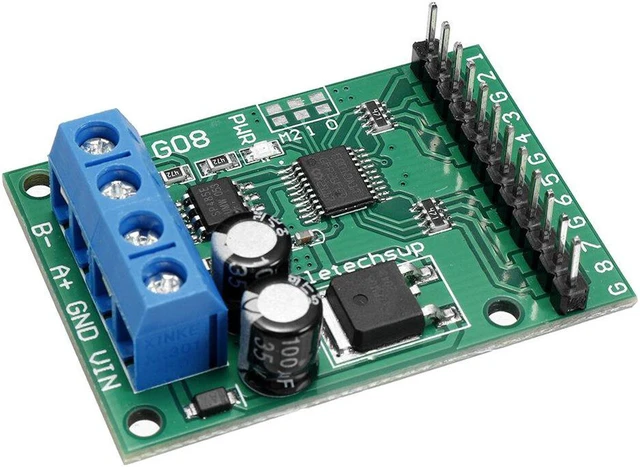

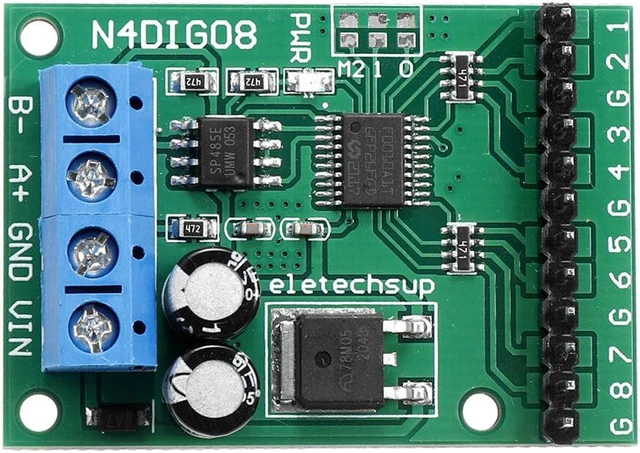

DC6-24V 8CH RS485 N4DIG08 TTL Modbus RTU Control Module NPN PNP Digital Switch Quantity Acquisition Control

Features:

1: With RS485 and RS232 (TTL) dual bus interface

2: Working voltage: 6-24V

3: Wiring is simple and easy to understand.

4: Widely used

5: Two command control modes: AT command and MODBUS command

Specification:

Working voltage: DC 12V (6-24V)

Working current: 10-16MA

MODBUS RTU 03 06 16 command control mode

Three function modes can be selected by jumpers: 8 channel input/8 channel output/4 input 4 output

Input mode: support 3.3V/5V TTL level input, there are two input modes: low level input (default) and high level input

In output mode: 5V TTL level, low level (default)/high level output

In MODBUS command mode, it can support up to 247 devices to be used in parallel

Input port status supports query (default) and automatic reporting

The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rates

Size: 44 x 31 x 15mm

Weight: 9 grams (No pin), 10 grams (with pin), 12.5 grams (with terminal)

Function description:

"Open": Control port outputs low level (default)

"Off": Control port outputs high level (default)

Jog: input a jog command, the port outputs a low level, and returns to a high level after 1 second

Self-locking: Input the self-locking command, the port will output low level, input the self-locking command again, the port will output high level, and so on

Interlock: Input channel 1 interlock command, port 1 outputs low level, and ports 2-8 output high level; press input channel 2 to interlock, port 2 outputs low level, and ports 1/3-8 output high level; And so on
