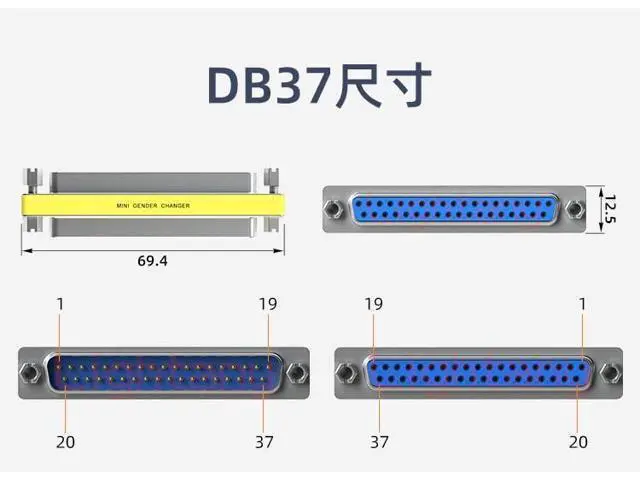

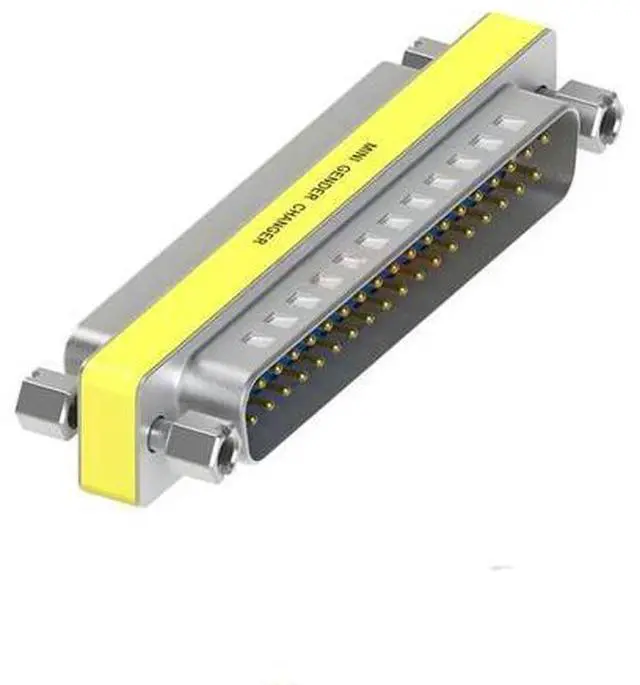

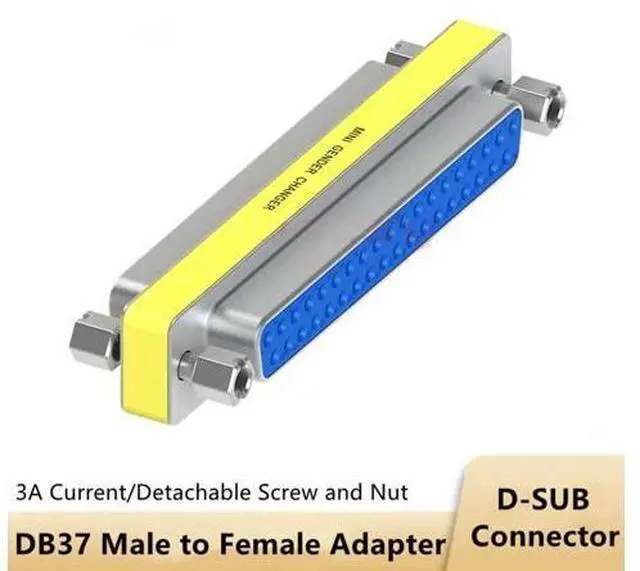

Vszerda 37 Pin High Density D-Sub Male to Female Adapter 180 Degree Metal 3A

D-Sub Adapter&Gender Changers,High Density D-Sub,male,37pin,High Density D-Sub,female,37pin,straight,metal,3A; Ideal where space is limited and provide shielding against RFI/EMI interference; Durability of 500 mating cycles; Inserts are flame-retardant thermoplastic;; High Quality with 30 days 100% Money back;

Overview

Specs

Reviews

Applications: Commercial equipment Electronic data processing equipment data communication Technology equipment Communication converter Consumer electronics products Serial communication interface
Technical Parameters: Electrical Characteristics
Voltage Rating: 250V AC/ rms 50Hz
Withstanding Voltage: 1000V AC/ rms 50Hz for one minute Insulation Resistance 1000M at 500V DC Contact Resistance 20 m max.
Mechanical Characteristics Mechanical life: 500 times
Environmental Characteristics Operating Temperature: -67°F (-55°C) to +257°F (125°C)
Material: Part Material Finish Body Steel with tin ------- Center Contact Pin Brass Gold Insulator High temperature black thermoplastic
