wusu 4K60HZ 1x8 HDMI Splitter 8 Port HDMI Switch 1 Port to 8 HDMI Display Duplicate/Mirror Powered Splitter Ver 2.0 Certified for Full HD 3D 1080P High Resolution 3D Support 4:4:4,Copy EDID,HDR 10
- HDMI 2.0 Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 8 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160@60Hz.
- Specification:
- HDMI Version: HDMI 2.0b, HDCP 2.2
- HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
- Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
- Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
- Max Bandwidth: 600MHz
- Max Baud Rate: 18.5Gbps
- Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
- Input/Output DDC Signal: 5Volts p-p (TTL)
- Input Cable Distance: 17ft AWG28 HDMI standard cable
- Output Cable Distance: 17ft AWG28 HDMI standard cable
- Max Working Current: 1200mA
- Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
- Operating Humidity Range: 5 to 90%RH (No Condensation)
+
+
Overview
Specs
Reviews
Specification:
HDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: Less than17ft AWG28 HDMI standard cable
Output Cable Distance: Less than17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating Temperature Range: (-15 to +55 centigrade)
Operating Humidity Range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 110x60x20(mm)
Packaging contents
- 1x8 HDMI 2.0 Splitter HDCP 2.2 x1
- AC Power Adaptor x1
- User Manual x1

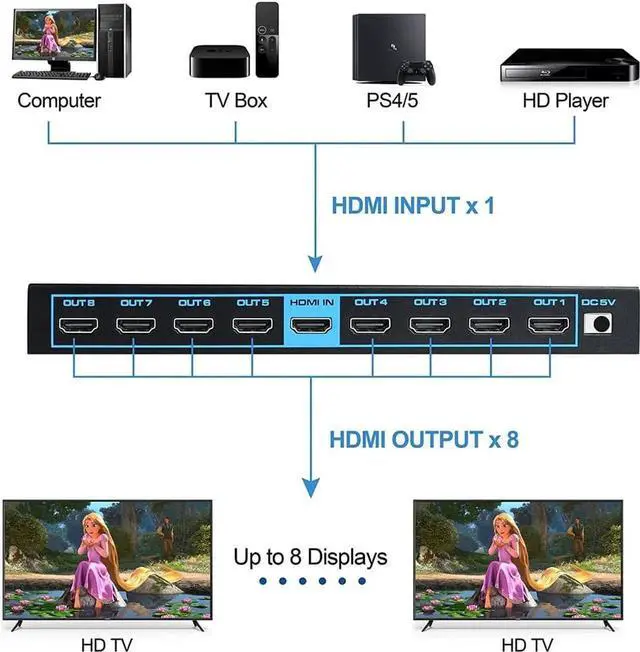

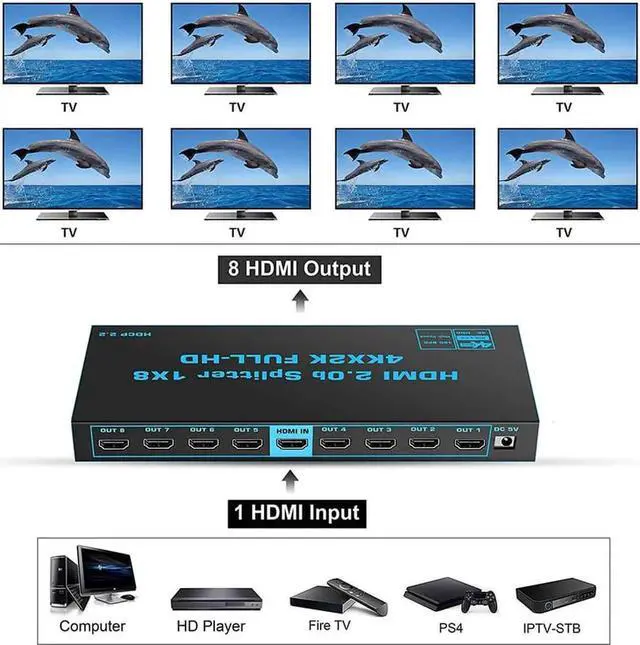

HDMI 2.0 Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 8 HDMI compatible monitors or projectors. In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160@60Hz.
Specification:
HDMI Version: HDMI 2.0 b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM 7.1 /DTS/Dolby-AC3/DSD HD (HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5G bps
Input/Output TMDS Signal: 0.5 ~ 1.5V olts p-p (TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz); Output: DC 5V/2A
Operating Temperature Range: (-15 to +55)
Operating Humidity Range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 110x60x20 (mm)
