SF-048 Ruler 1U GEN-Z EDSFF Short SSD E1.S to NVMe NGFF M-key 4X Host Carrier Adapter with Power
Limited time offer, ends 12/16 By ElectroWorks JV

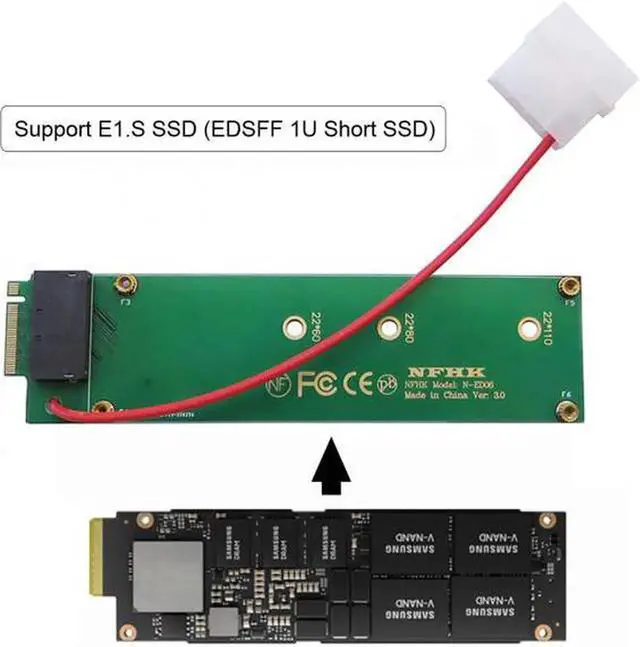

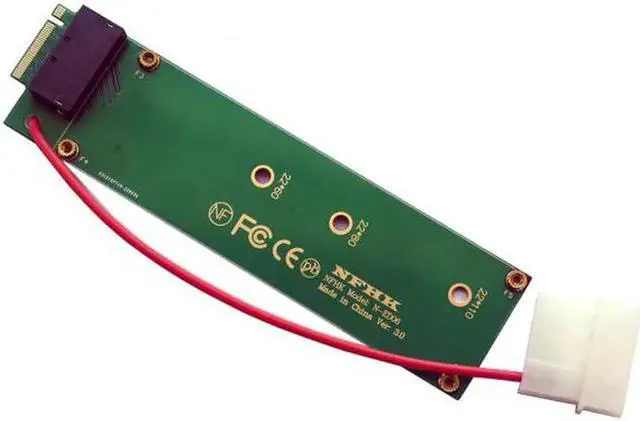

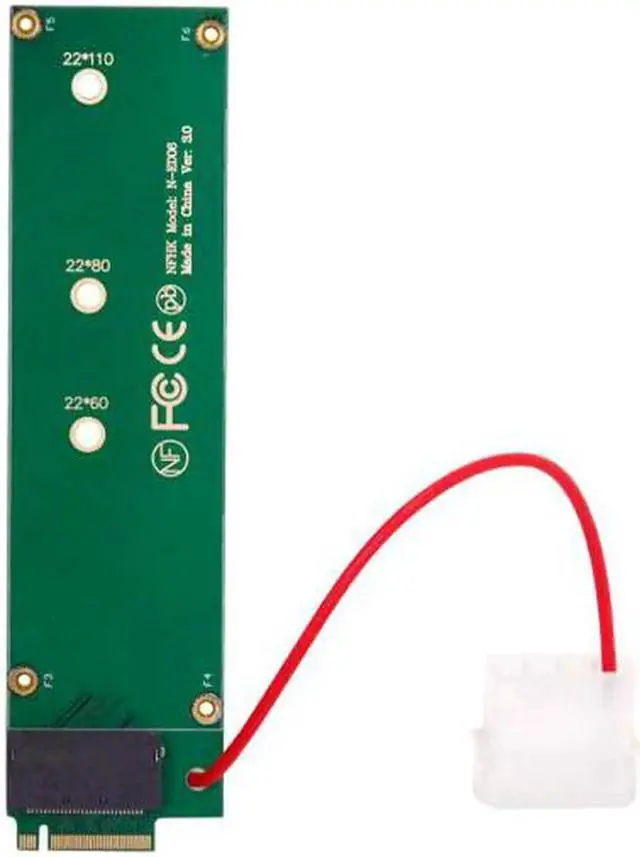

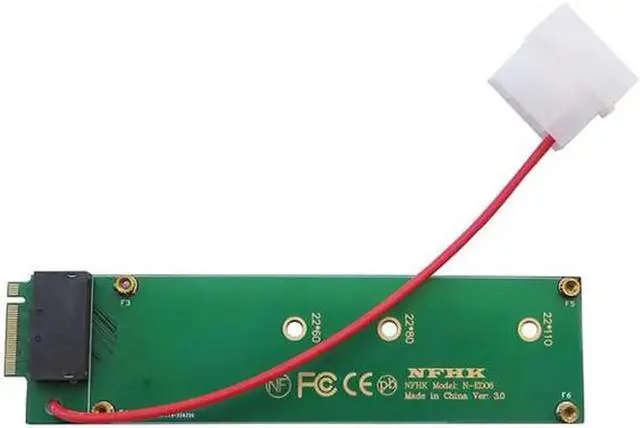

- Ruler 1U GEN-Z EDSFF Short SSD E1.S to NVMe NGFF M-key 4X Host Carrier Adapter with Power

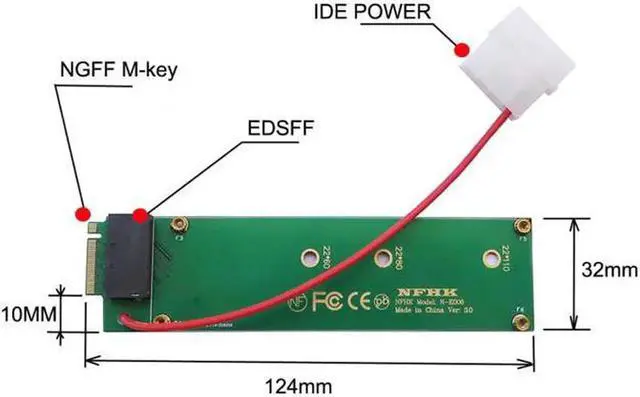

- Please check the PCBA dimension carefully, The dimension is bigger than 2280 NGFF SSD.
- You need to connect the 4pin power to work it.
- This converter enables the connection of a edsff ssd and NVMe NGFF M-key 4X format.
- The converter can be installed into your system internally through the NVMe NGFF M-key 4X interface.

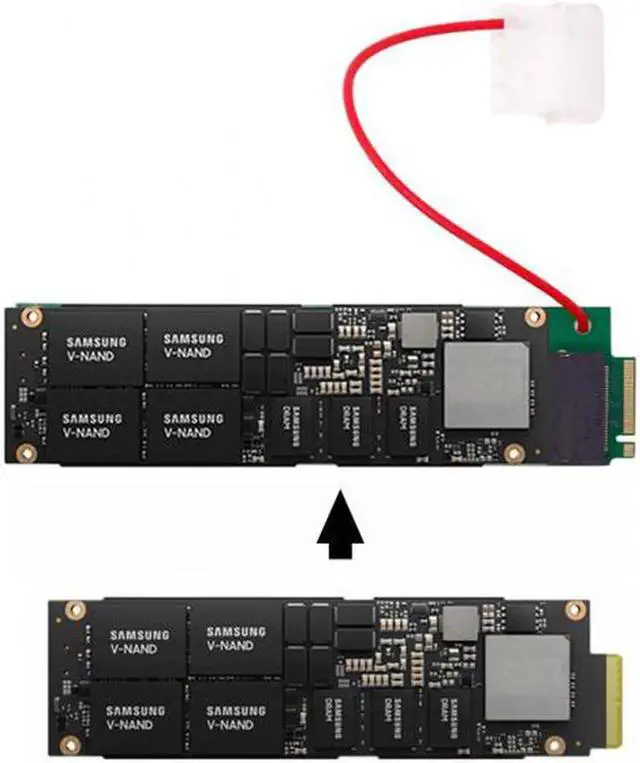

- Thus an EDSFF E1.S SSD becomes an M.2 SSD, which can be used in IoT, data center and server area.
- Supports M.2 modules with key M based on PCIe
- Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported.
- Connectors: 1 x EDSFF E1.S female 1 x 67 pin M.2 key M male
- Interface: PCIe x4 Rev. 4.0
+
+
Overview
Specs
Reviews
- Ruler 1U GEN-Z EDSFF Short SSD E1.S to NVMe NGFF M-key 4X Host Carrier Adapter with Power
- Please check the PCBA dimension carefully, The dimension is bigger than 2280 NGFF SSD.
- You need to connect the 4pin power to work it.
- This converter enables the connection of a edsff ssd and NVMe NGFF M-key 4X format.
- The converter can be installed into your system internally through the NVMe NGFF M-key 4X interface.
- Thus an EDSFF E1.S SSD becomes an M.2 SSD, which can be used in IoT, data center and server area.
- Supports M.2 modules with key M based on PCIe
- Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported.
- Connectors: 1 x EDSFF E1.S female 1 x 67 pin M.2 key M male
- Interface: PCIe x4 Rev. 4.0
