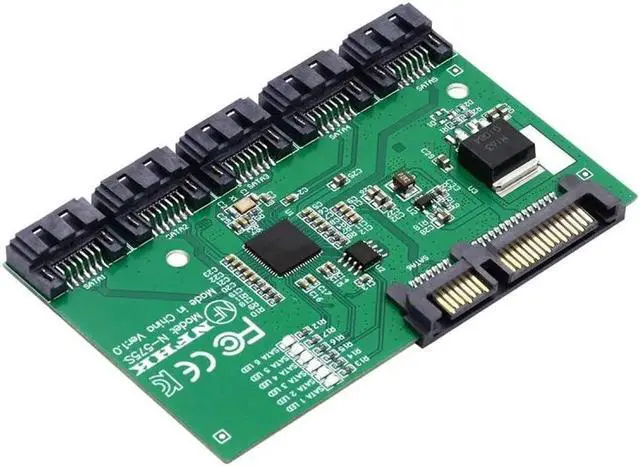

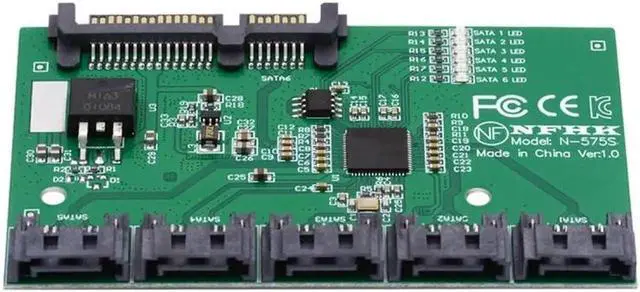

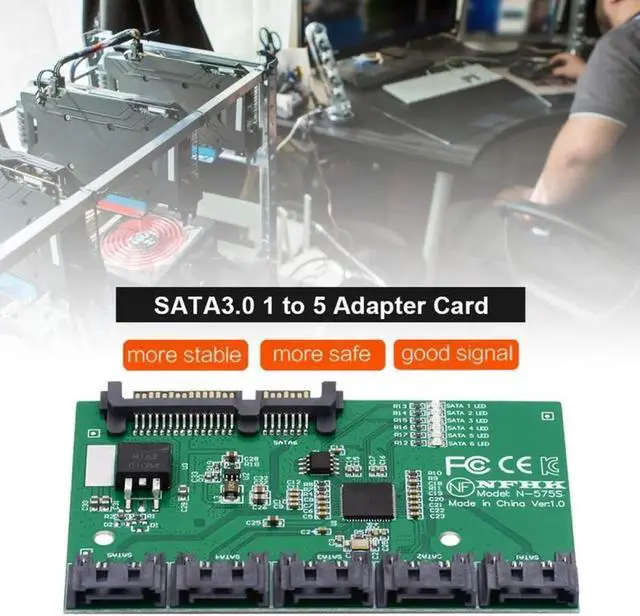

SATA 3.0 6Gbps 1 to 5 Splitter Ports HUB Adapter Converter PM Multiplier Port Selector JMB575
Limited time offer, ends 12/18 By ElectroWorks JV
- SATA 3.0 6Gbps 1 to 5 Splitter Ports HUB Adapter Converter PM Multiplier Port Selector JMB575

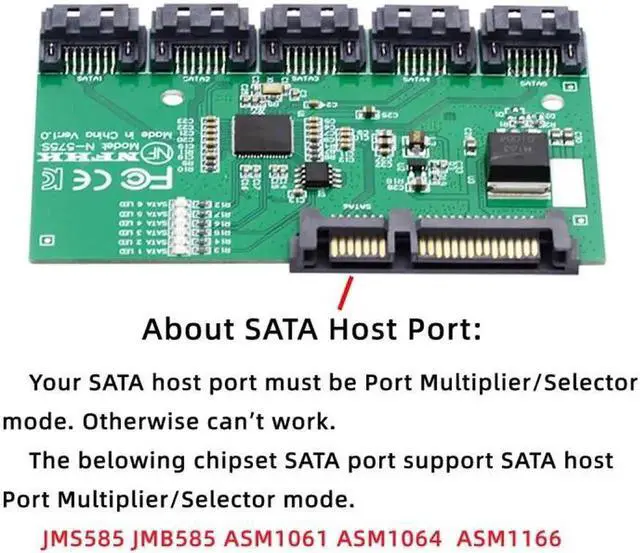

- Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.
- The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.
- JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.
- With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.
- JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
- Key Features
- Comply with Serial ATA Port Multi Spec. Revision 1.2
- Comply with Serial ATA Port Select Spec. Revision 1.0
- Support 5 port SATA 6Gbps interface
- Supports BIST and loopback mode
- Support command-based and FIS-based switching
- Support PM aware and non-PM aware host
- Main control chip: JMB575

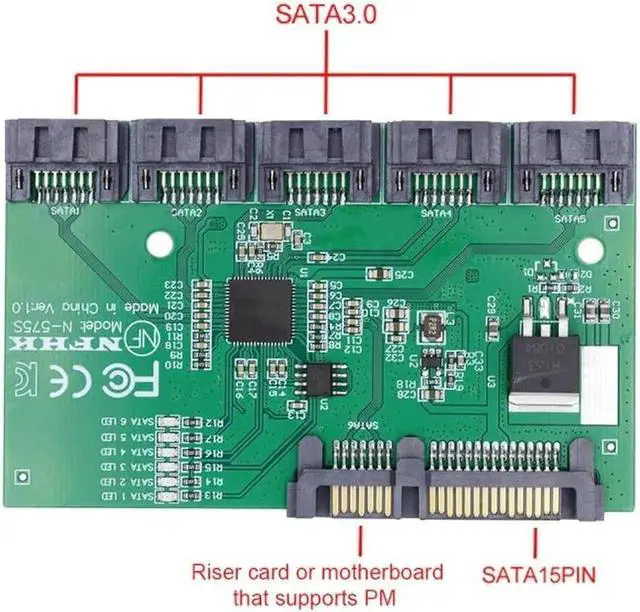

- Interface: 5 * SATA3.0 interface
- Applicable slot: SATA port with PM function.
+
+
Overview
Specs
Reviews
- SATA 3.0 6Gbps 1 to 5 Splitter Ports HUB Adapter Converter PM Multiplier Port Selector JMB575
- Your SATA host port must be port Multiplier / Selector mode. Otherwise can't work.
- The belowing chipset SATA port can be supported: JMS582 JMB585 ASM1061 ASM1064 ASM1166.
- JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.
- With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.
- JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
- Key Features
- Comply with Serial ATA Port Multi Spec. Revision 1.2
- Comply with Serial ATA Port Select Spec. Revision 1.0
- Support 5 port SATA 6Gbps interface
- Supports BIST and loopback mode
- Support command-based and FIS-based switching
- Support PM aware and non-PM aware host
- Main control chip: JMB575
- Interface: 5 * SATA3.0 interface
- Applicable slot: SATA port with PM function.
