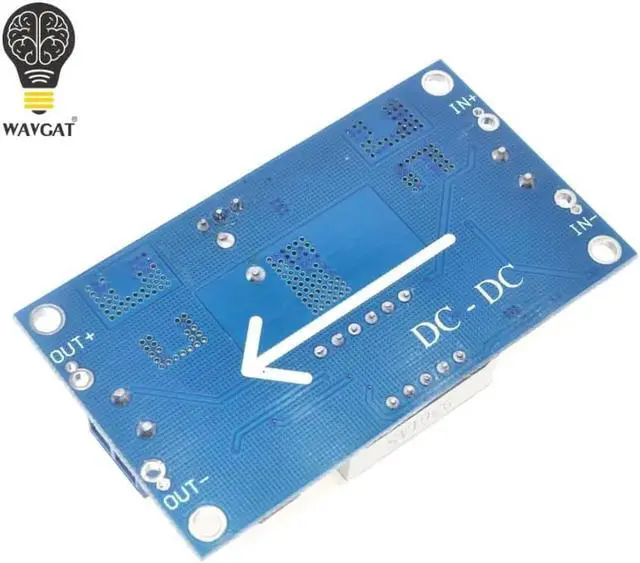

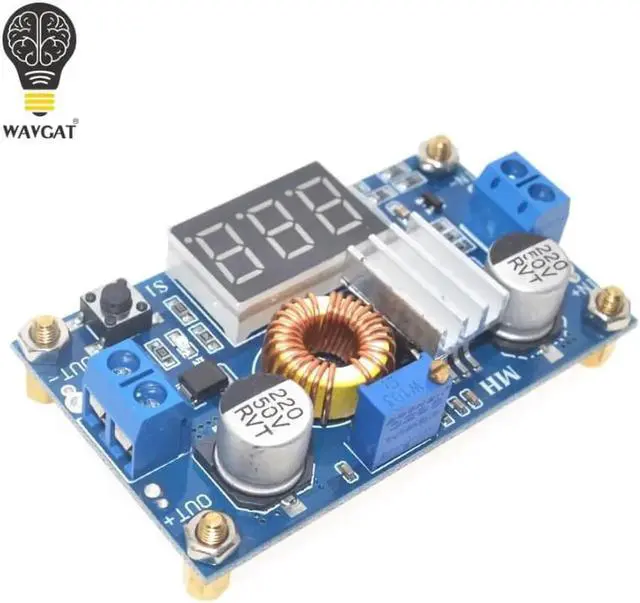

5A 75W XL4015 DC-DC Converter Adjustable Step-Down Module 4.0-38V to 1.25V-36V DIY Adjustable Power Supply

Origin:Mainland China

Condition:

Type:Other

Model Number:XL4015

Application:Other

Operating Temperature:..

Supply Voltage:..

Dissipation Power:..

is_customized:Yes

844

We are electronic module manufacturer, welcome to wholesale

5A 75W XL4015 DC-DC Converter Adjustable Step-Down Module 4.0-38V to 1.25V-36V DIY Adjustable Power Supply

Disclaimer:

Module Properties:

5A High Power 75W DC-DC adjustable step-down module

Input voltage:

DC 4.0 ~ 38V

Output voltage:

DC 1.25V ~ 36V continuously adjustable ( the input voltage must be higher than the output voltage 1.5V )

Output current:

max 5A, recommended for use in the 4.5A.

Output power:

up to 75W, more than 50W, Please enhance heat dissipation

Voltmeter error: ± 0.05V

Measure range: 0 ~ 40V ( please ensure that the input voltage is 4.5V or more)

Conversion efficiency: up to 96%

Load regulation: S (I) 0.8%

Voltage Regulation: S (u) 0.8%

With overheat protection and short circuit protection

Dimensions: 6.6 * 3.9 * 1.8cm

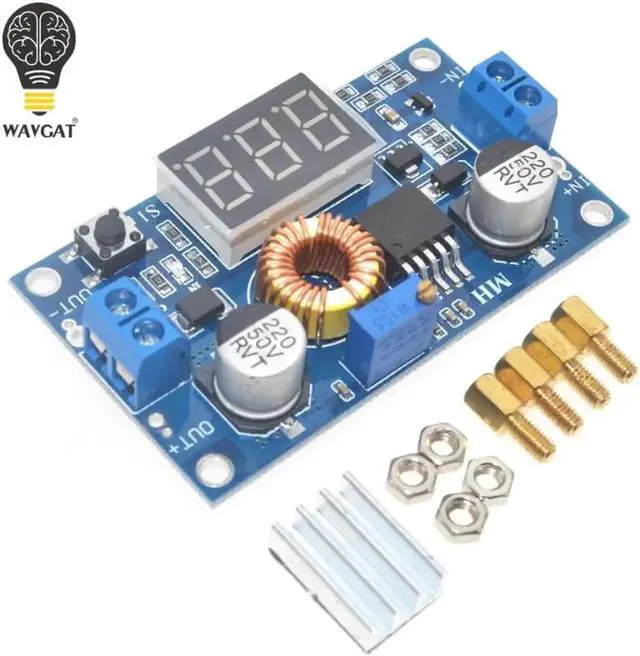

Package include:

1

x

XL4015 St

ep Down Module DC-DC converter LED Display Voltmeter
