SAOESS PCI Express 2.0 SAS+SATA HBA 6Gb/s Raid Controller Card, SAS2008 Controller Chip, Same as SAS 9211-8I

Note This Card Max. support 6GB Harddisk.

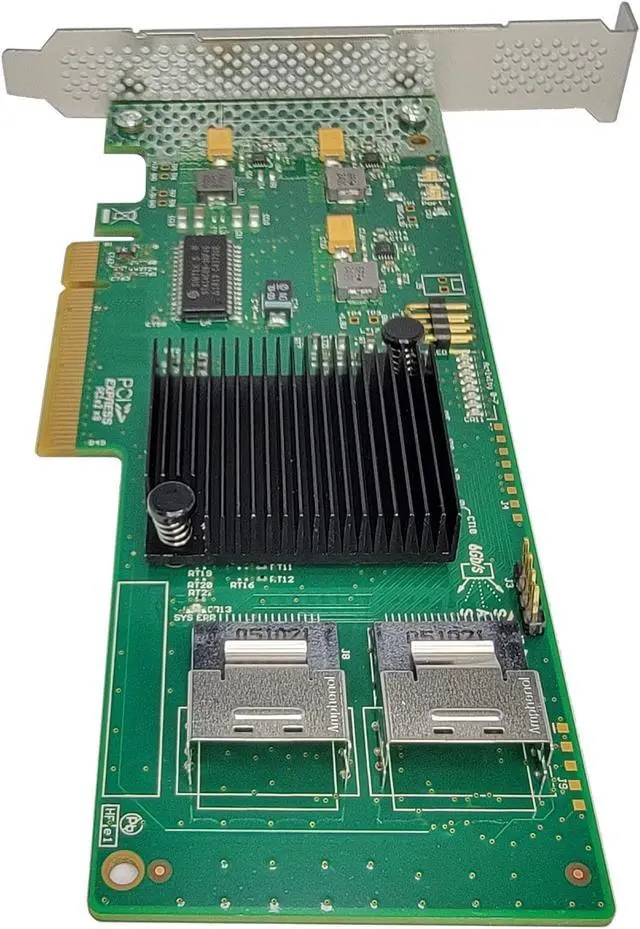

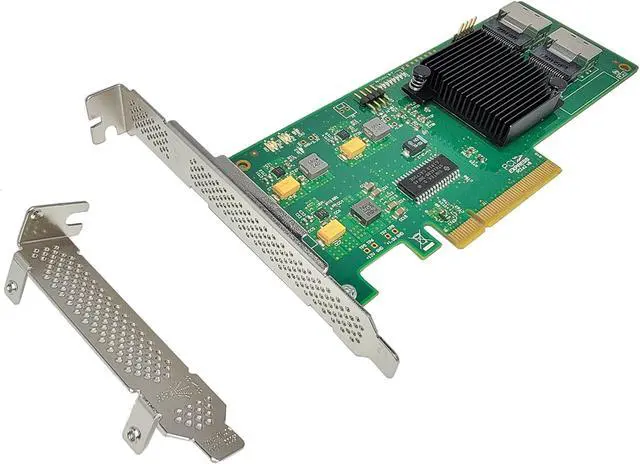

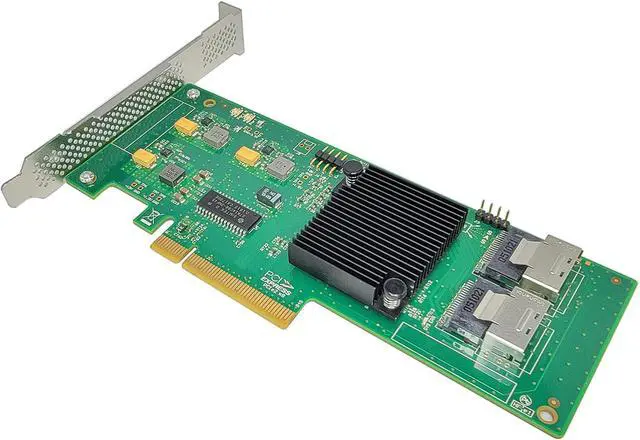

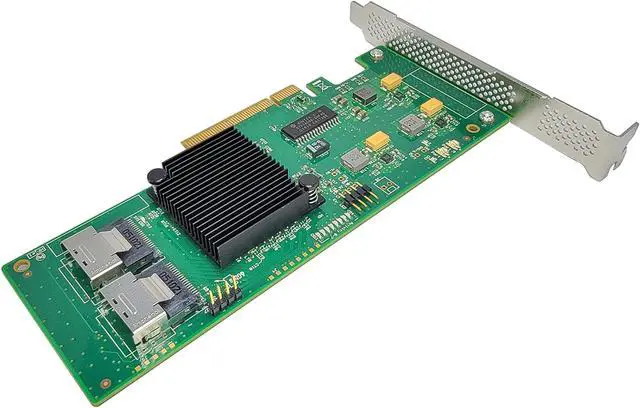

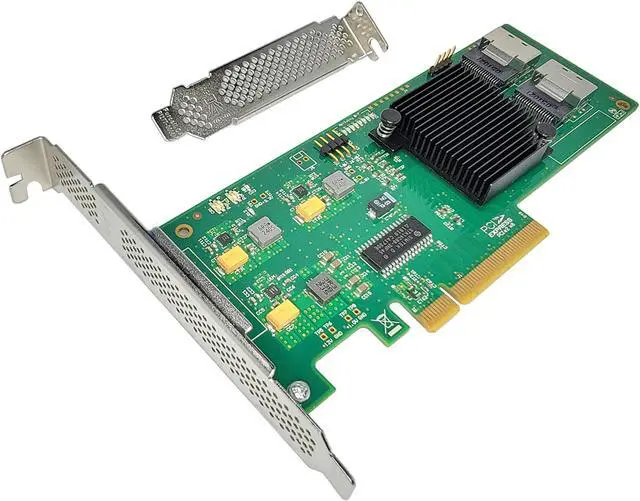

The SAOESS SAS-9211-8I HBS adapter provides the greatest available throughput to internal server storage arrays through eight internal 6Gb/s ports, driving up to 256 SAS and SATA physical devices. This HBA offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. Utilizing two internal x4 SFF8087 Mini-SAS connectors, the low-profile SAOESS SAS-9211-8I HBS adapter is an excellent fit for 1U and 2U servers.
The SAOESS SAS-9211-8I HBS adapter utilizes the embedded CPU in the LSI SAS2008 controller to perform integrated RAID 0, 1, 1E and 10 operations for reliable data protection with high-availability. The result is an ultra-thin, low-overhead device driver communicating over the x8 PCI Express 2.0 host interface.

SAS 6Gb/s Compliant
The SAOESS SAS-9211-8I HBS adapter features hot-pluggable, SATA-compatible SAS (Serial Attached SCSI) ports to provide 6Gb/s data transfer rates for optimum performance, efficiency, convenience and flexibility.

RAID Support
The SAOESS SAS-9211-8I HBS adapter supports multi-level RAID configuration including RAID 0, 1, 1E and 10 for better performance, enhanced data security and flexible capacity upgrades..

PCI Express 2.0 x8 Interface
The SAOESS SAS-9211-8I HBS adapter features the PCI Express 2.0 x8 interface which provides sufficient throughput and full-duplex operation for enhanced performance.
