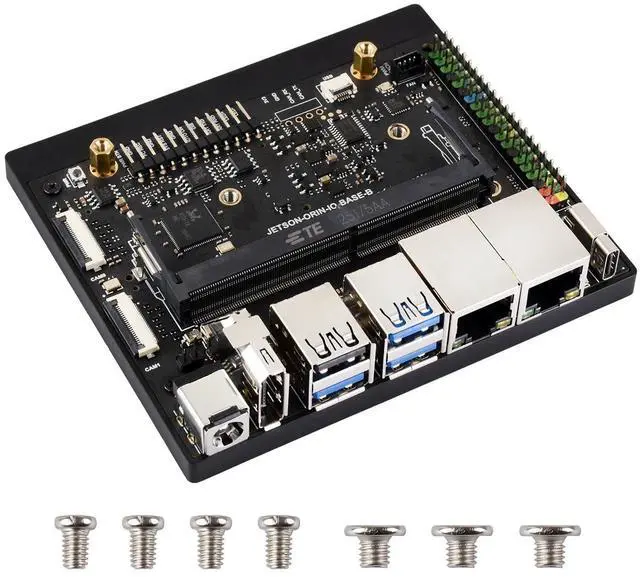

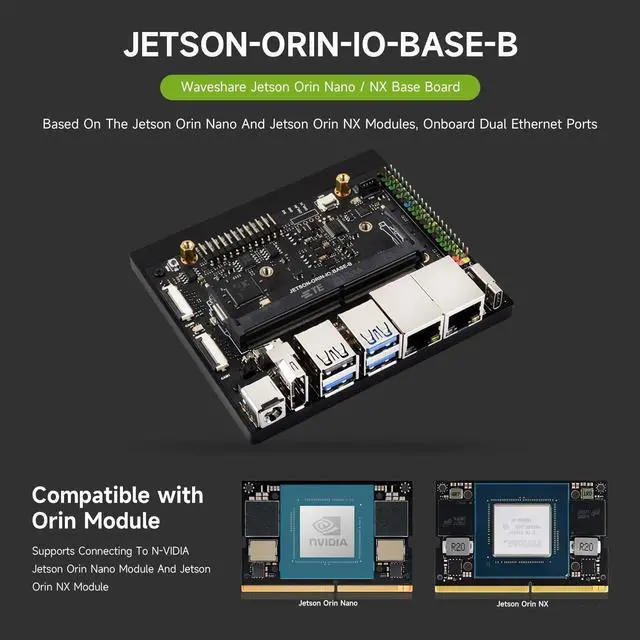

Waveshare Jetson Orin Nano/NX Super Dual Ethernet Base Board Compatible with Jetson Orin Nano and Jetson Orin NX Modules, Designed for NV Jetson Orin Nano Super AI Development Kit

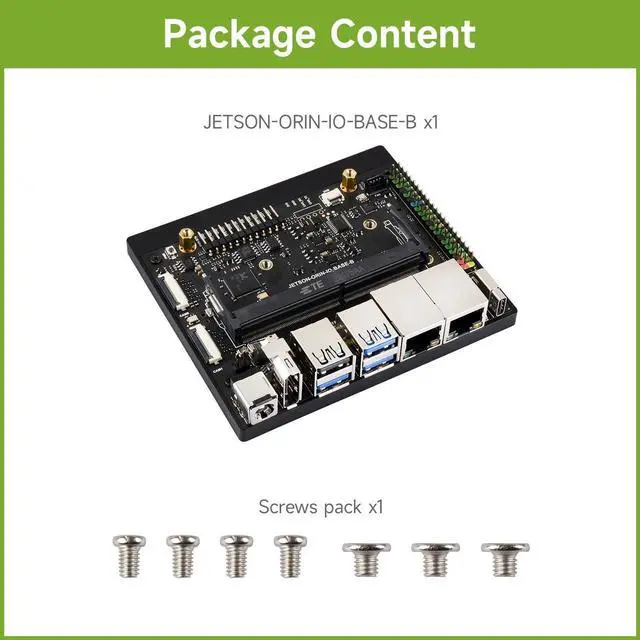

- This product is the base board only. Please purchase the Orin Module separately.

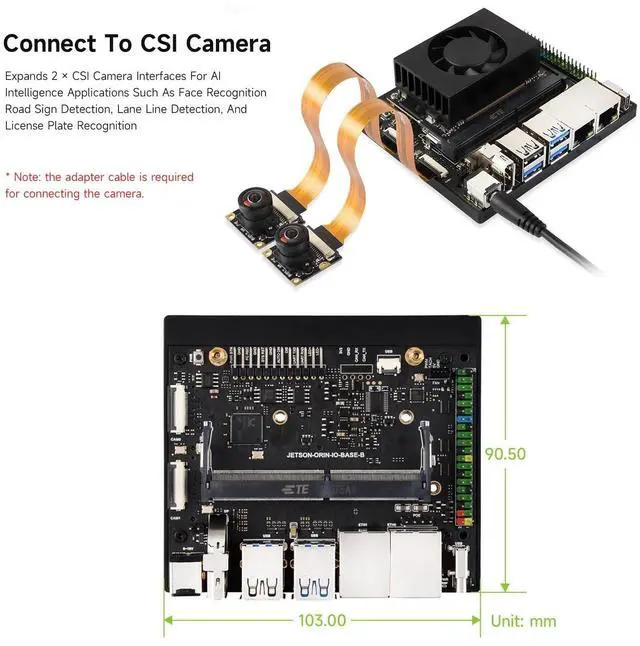

- Dual CSI Camera Interfaces for Advanced AI Vision: Features two dedicated CSI camera ports to power sophisticated AI and machine vision applications, including facial recognition, road sign and lane detection, and license plate recognition.

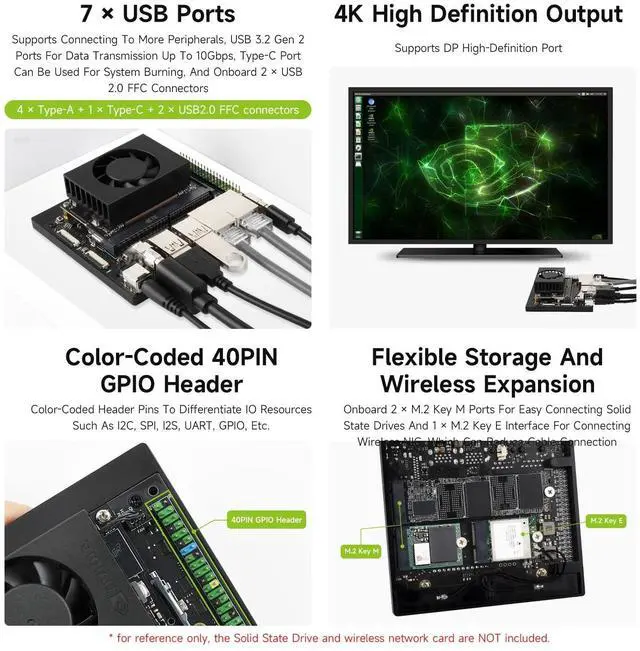

- Extensive High-Speed USB Connectivity for Peripherals: Offers exceptional connectivity with seven USB ports: four Type-A, one multi-purpose Type-C, and two onboard USB 2.0 FFC connectors. The USB 3.2 Gen 2 ports enable blistering data transfers up to 10Gbps, while the Type-C port also supports system flashing.
- 4K Video Output and Color-Coded GPIO for Easy Prototyping: Delivers stunning 4K high-definition video output via the DisplayPort. A clearly color-coded 40-pin GPIO header simplifies connection and identification of interfaces like I2C, SPI, UART, and GPIO for streamlined development.
- Flexible M.2 Expansion for Storage and Wireless: Provides versatile e
+
+
Overview
Specs
Reviews
This product is the base board only. Please purchase the Orin Module separately. ^^ Dual CSI Camera Interfaces for
Advanced AI Vision: Features two dedicated CSI camera ports to power sophisticated AI and machine vision applications, including facial recognition, road sign and lane detection, and license plate recognition. ^^ Extensive High-Speed USB
Connectivity for Peripherals: Offers exceptional connectivity with seven
USB ports: four Type-A, one multi-purpose Type-C, and two onboard USB 2.0 FFC connectors. The USB 3.2 Gen 2 ports enable blistering data transfers up to 10Gbps, while the Type-C port also supports system flashing. ^^ 4K Video Output and Color-Coded GPIO for
Easy Prototyping: Delivers stunning 4K high-definition video output via the DisplayPort. A clearly color-coded 40-pin GPIO header simplifies connection and identification of interfaces like I2C, SPI, UART, and GPIO for streamlined development. ^^ Flexible M. 2 Expansion for
Storage and Wireless: Provides versatile expansion with two M. 2 Key M slots for adding high-speed SSDs and one M. 2 Key E slot for integrating a wireless network card, enabling cleaner cable-free setups and enhanced onboard capabilities.
Advanced AI Vision: Features two dedicated CSI camera ports to power sophisticated AI and machine vision applications, including facial recognition, road sign and lane detection, and license plate recognition. ^^ Extensive High-Speed USB
Connectivity for Peripherals: Offers exceptional connectivity with seven
USB ports: four Type-A, one multi-purpose Type-C, and two onboard USB 2.0 FFC connectors. The USB 3.2 Gen 2 ports enable blistering data transfers up to 10Gbps, while the Type-C port also supports system flashing. ^^ 4K Video Output and Color-Coded GPIO for
Easy Prototyping: Delivers stunning 4K high-definition video output via the DisplayPort. A clearly color-coded 40-pin GPIO header simplifies connection and identification of interfaces like I2C, SPI, UART, and GPIO for streamlined development. ^^ Flexible M. 2 Expansion for
Storage and Wireless: Provides versatile expansion with two M. 2 Key M slots for adding high-speed SSDs and one M. 2 Key E slot for integrating a wireless network card, enabling cleaner cable-free setups and enhanced onboard capabilities.
