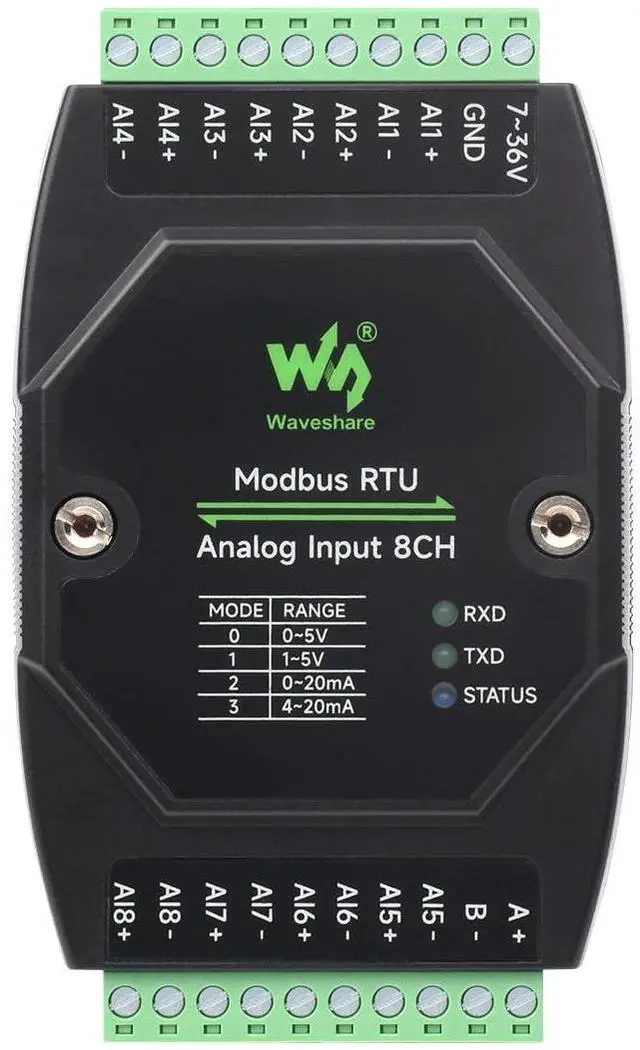

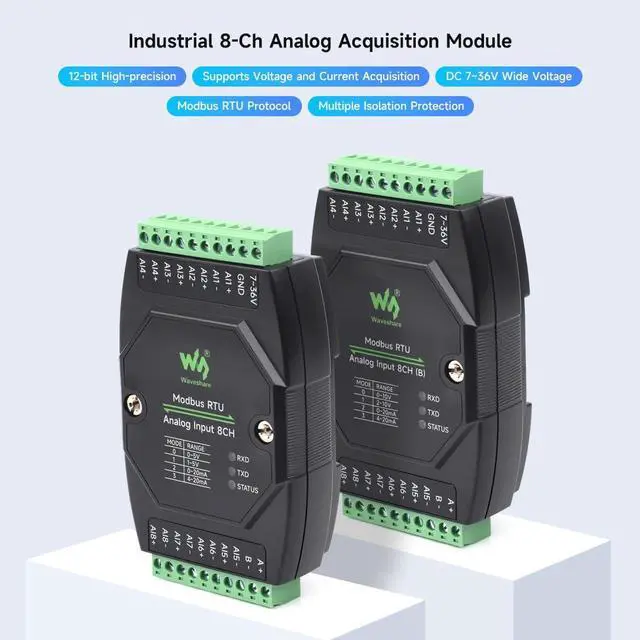

Waveshare Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage and Current Acquisition, DC 7~36V Wide Voltage Power Supply, 8-ch Current Mode, 0~20mA
Limited time offer, ends 12/07 By ElectroWorks JV
- 8-ch current mode, 0~20mA

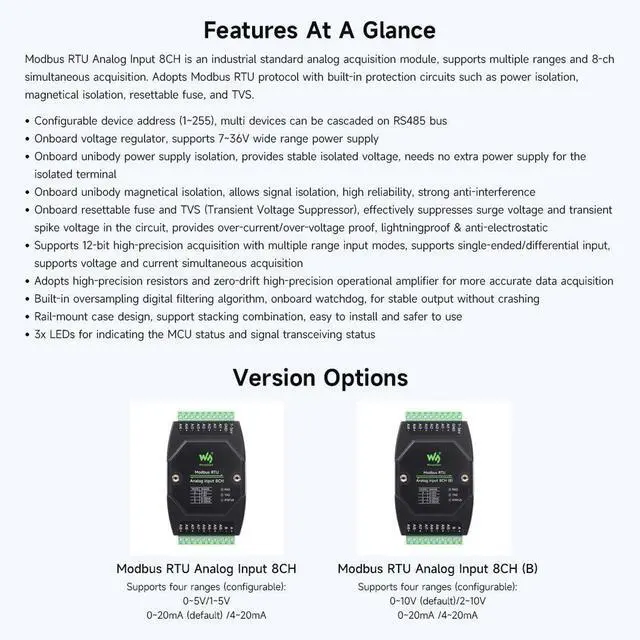

- Configurable device address (1~255), multi devices can be cascaded on RS485 bus. bOnboard voltage regulator, supports 7~36V wide range power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference. Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition. Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition
- Built-in oversampling digital filtering algorithm, on
+
+
Overview
Specs
Reviews
Waveshare Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage and Current Acquisition, DC 7~36V Wide Voltage Power Supply, 8-ch Current Mode, 0~20mA
