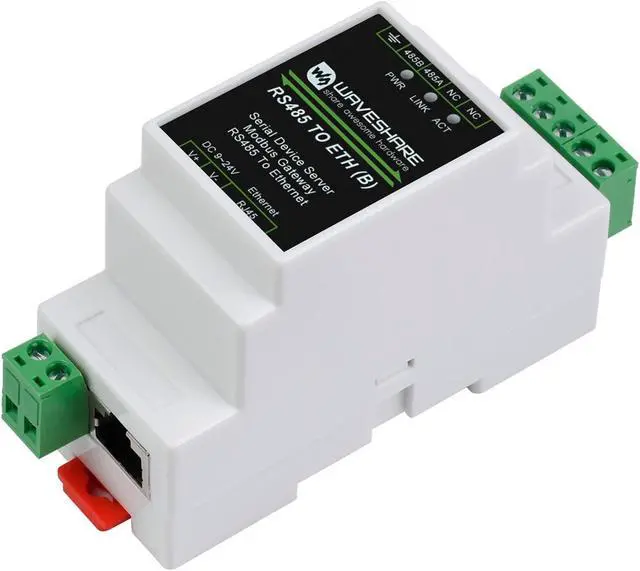

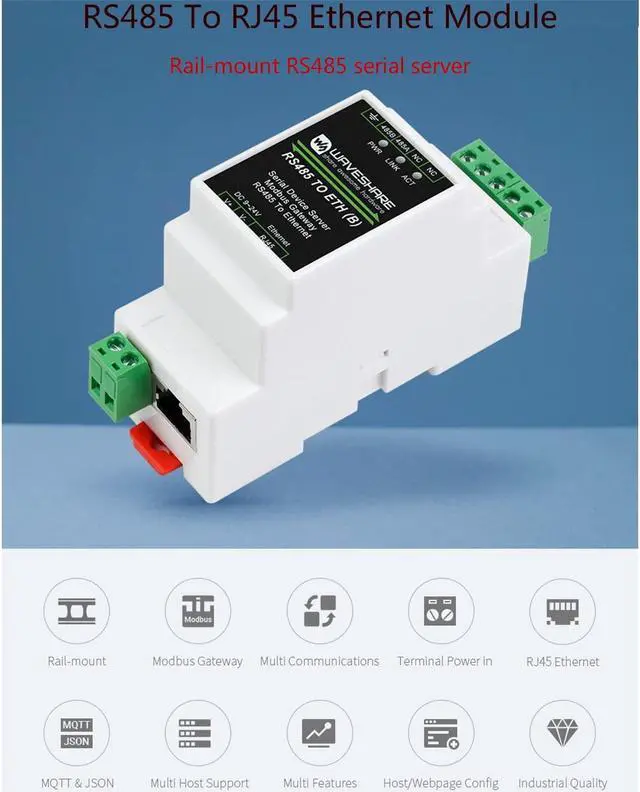

waveshare Ethernet Industrial Serial Server RS485 to RJ45 Ethernet Module, TCP/IP to Serial, Support Rail-Mount/Modbus Gateway, TCP Server/TCP Client/UDP Mode/UDP Multicast Multi Communication Modes

Overview

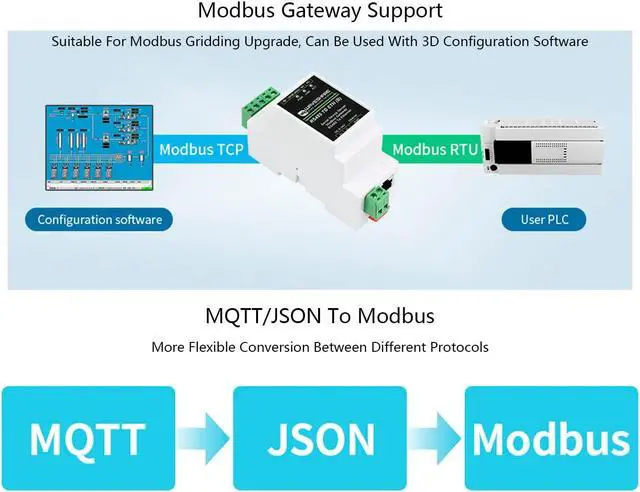

This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply. Rail-mount flame-retardant case design, small in size, easy to install.
It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring. etc.

Specifications

1. Primary Introduction
Product Type--- Serial server, Modbus Gateway, MQTT Gateway

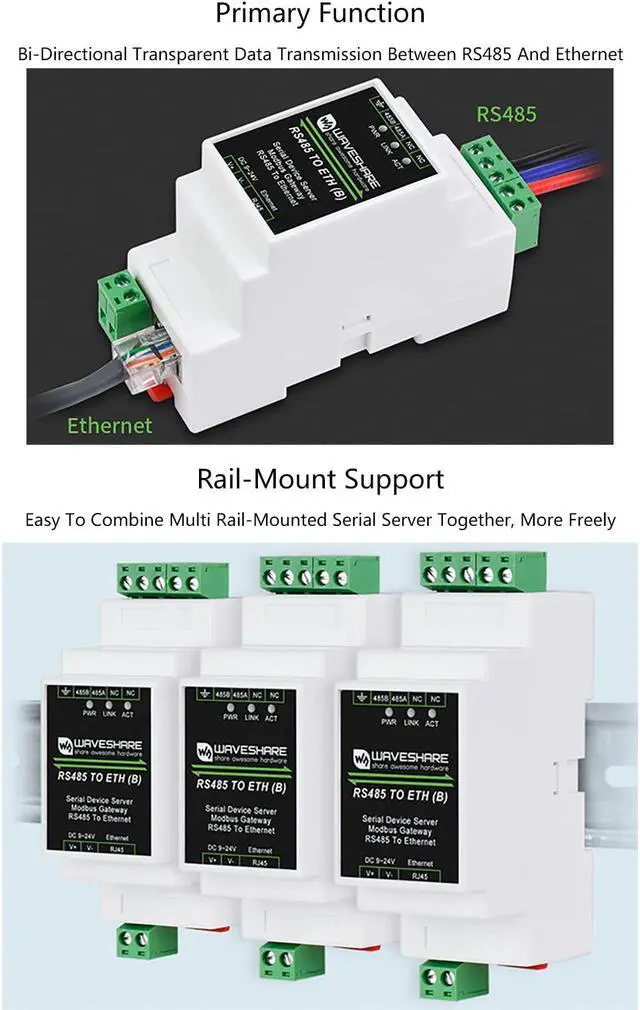

Basic Function--- Bi-directional transparent data transmission between RS485 and Ethernet
Communication interface --- RS485 port x 1, Ethernet port x 1
Power supply --- 9 ~ 24V DC screw terminal

2. Communication
Ethernet--- common network port, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection.
Serial port--- RS485.

3. Serial specification
Baudrate---300 ~ 115200 bps
Parity bit--- none, odd, even, mark, space
Data bit--- 5 ~ 9 bits

4. Software
Protocol--- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration--- host, web browser, device management functions library
Communication method--- TCP/IP direct communication, VCOM

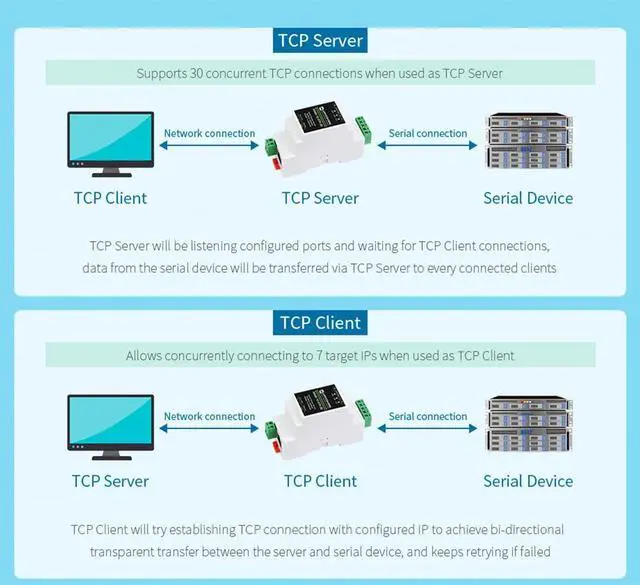

Operating mode--- TCP server, TCP client (coexisting with TCP server), UDP, UDP multicas

5. Environment requirement
Operating temperature--- -40 ~ 85
Storage temperature: -45 ~ 125
Humidity range--- 5% ~ 95% relative humidity
Dimensions --- L x W x H--- 87x 36 x 59 mm

Online Document/How to use: //bit. ly/3rWrjyz

Package Content
RS485 TO ETH (B) x1
