waveshare USB to RS232/485/422/TTL(UART) Interface Converter, Industrial Isolated USB Converter Adapter, Adopt Original FT232RNL Chip,Multiple Protection,Compatible with Mac, Linux, Android, Windows
Limited time offer, ends 12/07 By ElectroWorks JV
- Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility.Supports multiple communication interface conversion: USB to RS232, USB to RS485, USB to RS422, USB to TTL
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal.Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering with each other
- Onboard TTL serial 3.3V/5V voltage translator
+
+
Overview
Specs
Reviews
Introduction

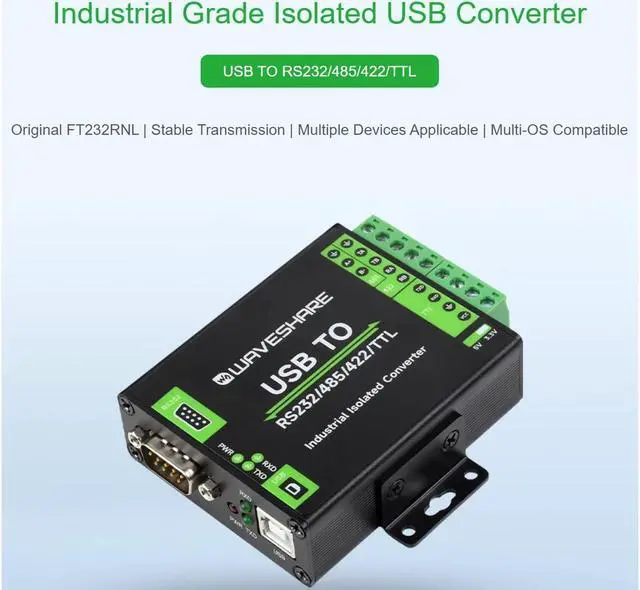

USB TO RS232/485/422/TTL, an industrial-grade isolated converter, adopts the original FT232RNL, built-in protection circuits including power isolation, ADI
magnetical isolation and TVS, and with aluminum alloy shell design. USB TO RS232/485/422/TTL is easy to operate and features an automatic
transmission and reception conversion with zero delays. Also, it has the characteristics of fast communication speed, stability, reliability,
safety, etc., and can be applied to various industrial control device or applications with high communication requirements.
Features
1. Original Industrial Grade Chip
Onboard Original FT232RNL Chip, Fast Communication, Stable & Reliable, Better Compatibility

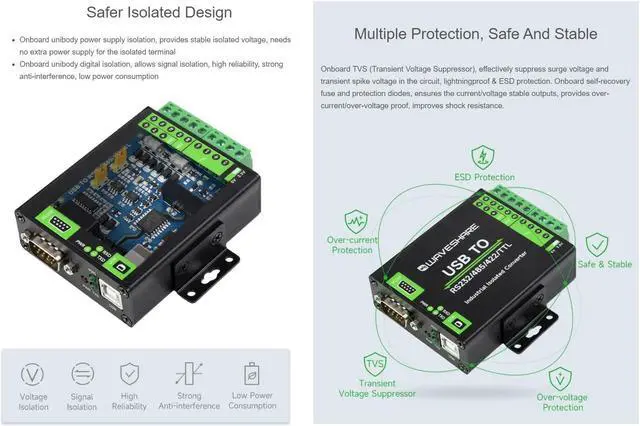

2. Safer Isolated Design
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
3. Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof and ESD protection.
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
4. Multi System Support
Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.
5. Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashionable And Good Hand Feeling
Wall-Mount And Rail-Mount Support, More Flexible For Industrial Installation

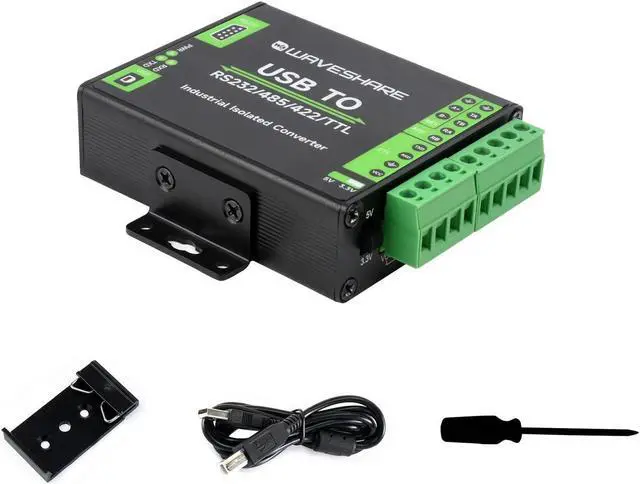

Package Content
USB TO RS232/485/422/TTL x1
Rail-mount buckle x1
USB type A to type B cable - 1.2 m x1
Screwdriver x1
USB TO RS232/485/422/TTL, an industrial-grade isolated converter, adopts the original FT232RNL, built-in protection circuits including power isolation, ADI
magnetical isolation and TVS, and with aluminum alloy shell design. USB TO RS232/485/422/TTL is easy to operate and features an automatic
transmission and reception conversion with zero delays. Also, it has the characteristics of fast communication speed, stability, reliability,
safety, etc., and can be applied to various industrial control device or applications with high communication requirements.
Features
1. Original Industrial Grade Chip
Onboard Original FT232RNL Chip, Fast Communication, Stable & Reliable, Better Compatibility
2. Safer Isolated Design
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
3. Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof and ESD protection.
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
4. Multi System Support
Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.
5. Aluminium Alloy Enclosure
Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation
Solid And Durable, Fashionable And Good Hand Feeling
Wall-Mount And Rail-Mount Support, More Flexible For Industrial Installation
Package Content
USB TO RS232/485/422/TTL x1
Rail-mount buckle x1
USB type A to type B cable - 1.2 m x1
Screwdriver x1
