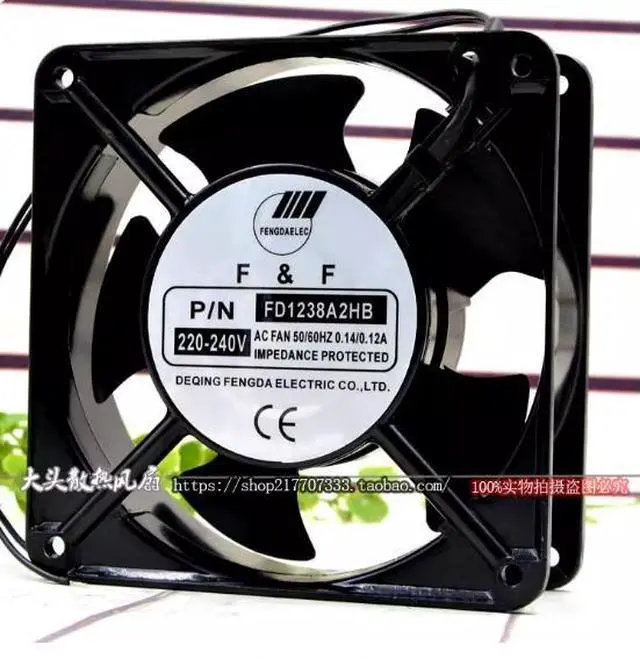

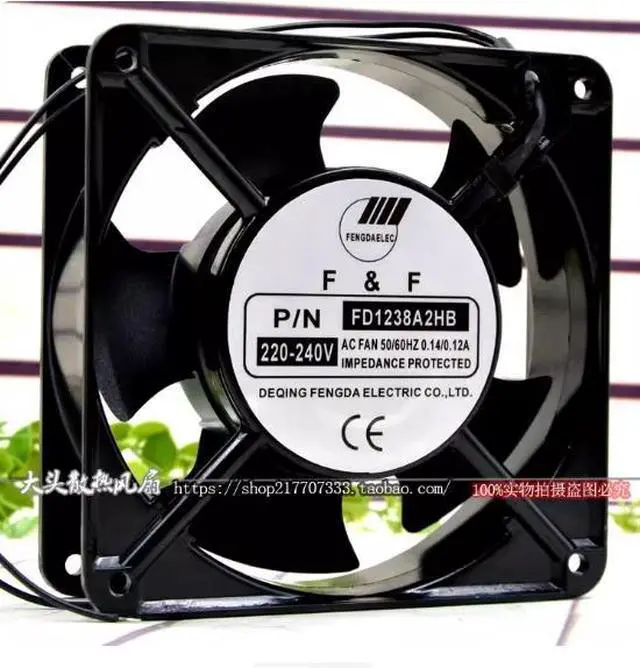

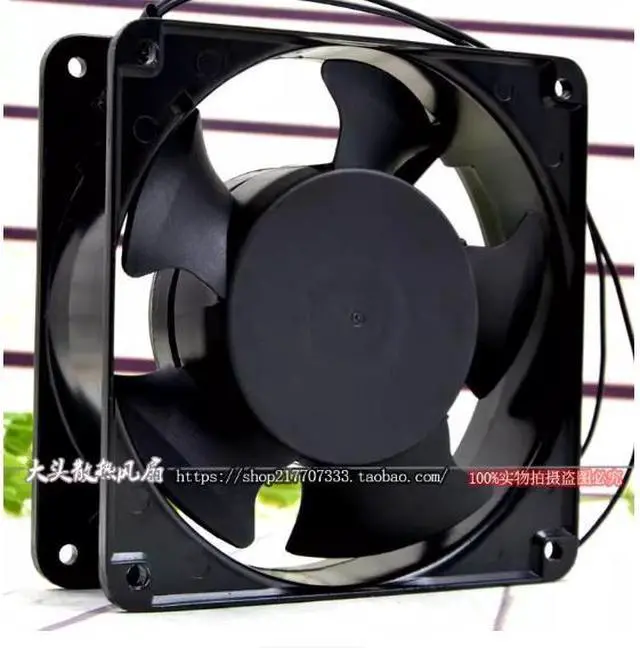

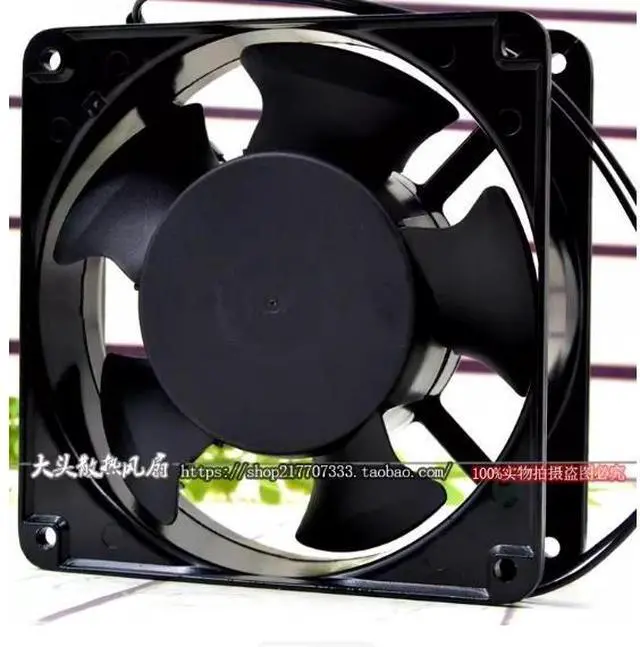

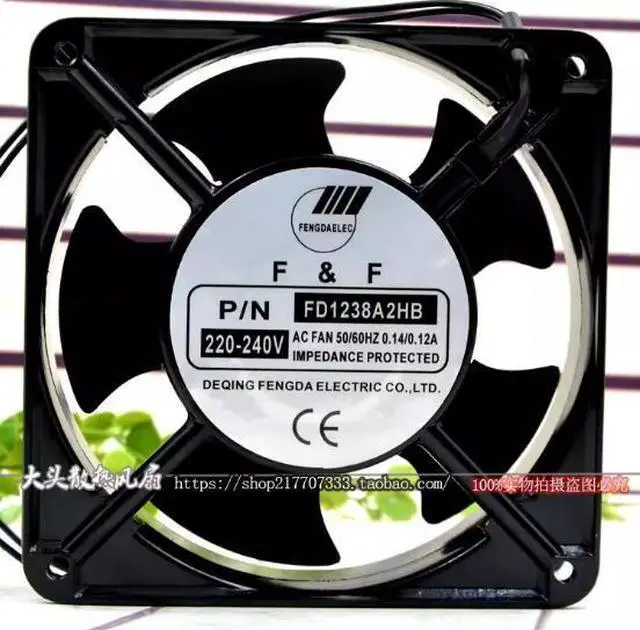

F&F's new FD1238A2HB/HS 220Vball-bearing oil-filled 12CM 12038 aluminum frame cooling fan
- Specification dimensions: 120x120x38MM
- Model:FD1238A2HB/HS
- Bearing structure: S: Sleeve (oil-filled bearing)Voltage: 110~120VAC/220~240VAC
- Power: 29/31 (W)
- Frequency: 50/60 (Hz)
- Speed: 2700-3100(R/min)
- Air volume: 2.68/3.25 (m3/min)
- Noise: 43/46(dB-A)
- Weight: 550 (g)
- Packaging: No separate packaging box. Ordinary hard cardboard box, 40 units per 1 full box.Frame: Black anodized aluminum alloy die-cast anti-corrosion and moisture-proof structure;
- Fan blade: One-step injection molding, PBT + 30% glass fiber + Vo grade flame retardant;
- Bearings: Low-noise imported lubricated bearings,
- Insulation: The enameled wire uses Class B insulation, with a temperature resistance of 120 degrees Celsius
- IConnection method: Lead-in type (lead length: 25CM)
+
+
Overview
Specs
Reviews
Specification dimensions: 120x120x38MM
Model: FD1238A2HB/HS
Bearing structure: S: Sleeve (oil-filled bearing)Voltage: 110~120VAC/220~240VAC
Power: 29/31 (W)
Frequency: 50/60 (Hz)
Speed: 2700-3100(R/min)
Air volume: 2.68 / 3.25 (m3/min)
Noise: 43/46(dB-A)
Weight: 550 (g)
Packaging: No separate packaging box. Ordinary hard cardboard box, 40 units per 1 full box.
Frame: Black anodized aluminum alloy die-cast anti-corrosion and moisture-proof structure;
Fan blade: One-step injection molding, PBT + 30% glass fiber + Vo grade flame retardant;
Bearings: Low-noise imported lubricated bearings,
Insulation: The enameled wire uses Class B insulation, with a temperature resistance of 120 degrees Celsius
IConnection method: Lead-in
type (lead length: 25CM)
Model: FD1238A2HB/HS
Bearing structure: S: Sleeve (oil-filled bearing)Voltage: 110~120VAC/220~240VAC
Power: 29/31 (W)
Frequency: 50/60 (Hz)
Speed: 2700-3100(R/min)
Air volume: 2.68 / 3.25 (m3/min)
Noise: 43/46(dB-A)
Weight: 550 (g)
Packaging: No separate packaging box. Ordinary hard cardboard box, 40 units per 1 full box.
Frame: Black anodized aluminum alloy die-cast anti-corrosion and moisture-proof structure;
Fan blade: One-step injection molding, PBT + 30% glass fiber + Vo grade flame retardant;
Bearings: Low-noise imported lubricated bearings,
Insulation: The enameled wire uses Class B insulation, with a temperature resistance of 120 degrees Celsius
IConnection method: Lead-in
type (lead length: 25CM)
