$55.78
Ships from China.
Meet Your Seller

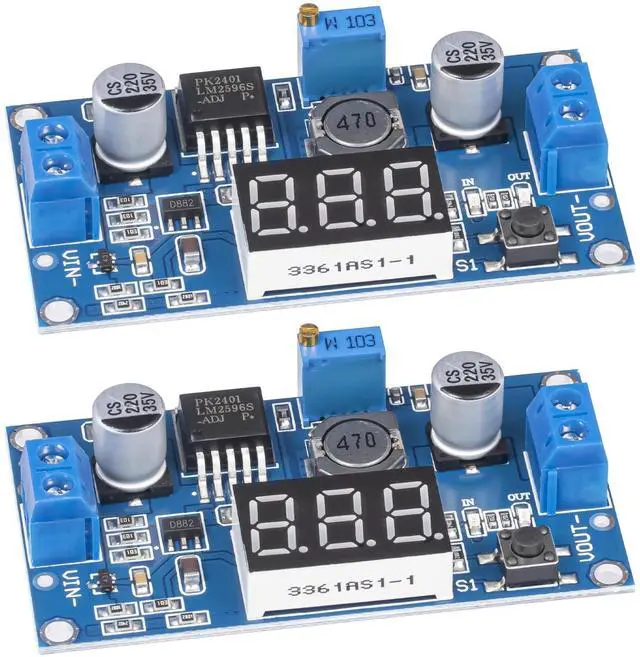

BUCIER LM2596 LM2596S DC-DC Buck Converter Voltage Regulator Adjustable 4.0-40V to 1.25-37V 2A Power Supply Module with LED Voltmeter Display (Pack of 2)
- JTAREA LM2596 Adjustable Buck Converter DC-DC - Measure More Accurate Voltage.
- INPUT VOLTAGE: DC 4.0~40V; PEAK CURRENT: 3 Amp

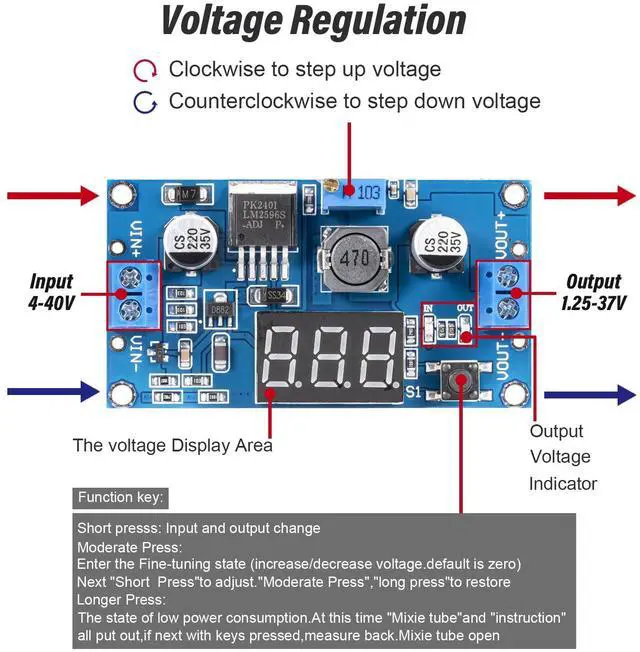

- VOLTAGE CHARACTERISTICS: Adjustable output voltage range, continuously adjustable between 1.25V~37V.
- EXCELLENT FEATURES: Voltmeter display - Self-calibration - No need to use a soldering iron.
- PACKAGE: Use a static bag - for protection and packaged in a box - for easy storage.
+
+
Overview
Specs
Reviews
Specification:
Display: LED voltmeter
Output Voltage: 1.25~37VDC (adjustable)
Oscillation Frequency: 150KHz
Voltmeter Range: 0 to 40V, error ±0.1V
Working Temperature: -45°C~85°C
Conversion Efficiency: 92%

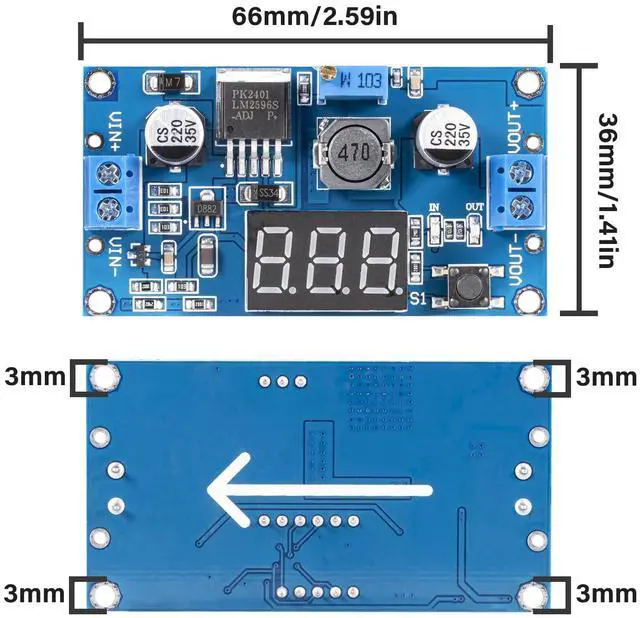

Size: 66*40*14mm
*It is recommended that the working current is around 2A. If it exceeds 2A, please strengthen heat dissipation.
Widely Applications: This buck converter can be used for DIY adjustable regulated power supplies, industrial equipment step-down, power transformers, temporary power supply, car, audio, fan12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc. The input voltage is higher than the output voltage drop region.
· Low power consumption and high efficiency.
· Thickened circuit board.
· Built in output short protection function.
· Built in thermal shutdown function.
· LED digital voltmeter tube, the accuracy is adjustable.
· The output is stable.
· Easy and fast installation.
Package List:
2 x Adjustable buck converter
