$209.00
Ships from China.
Meet Your Seller

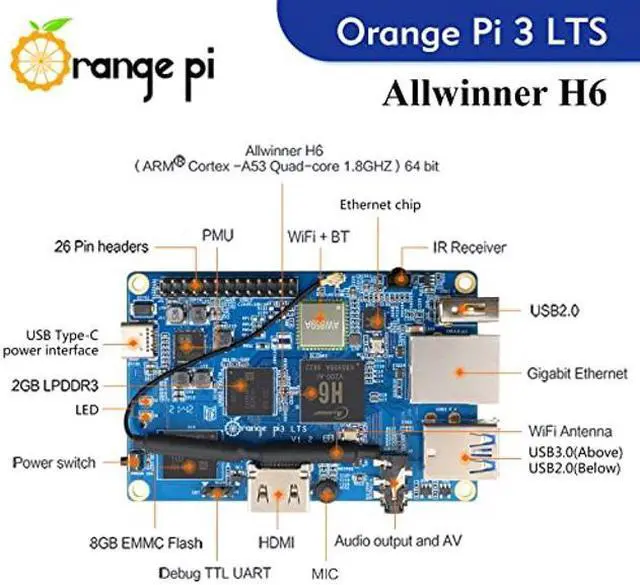

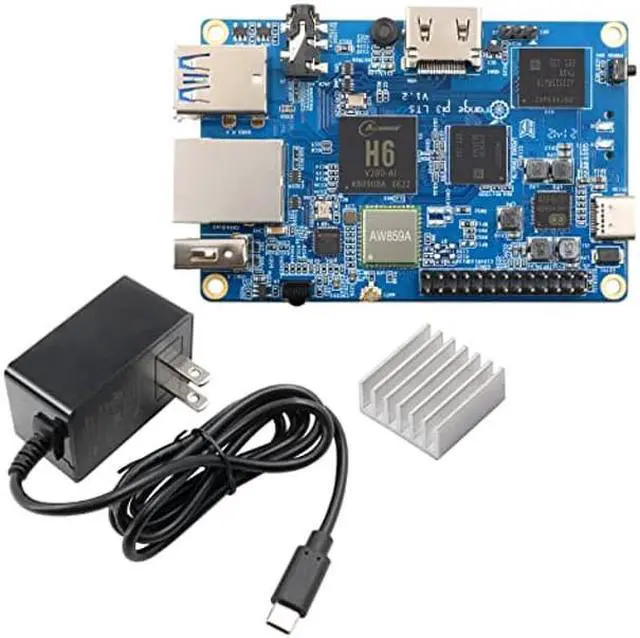

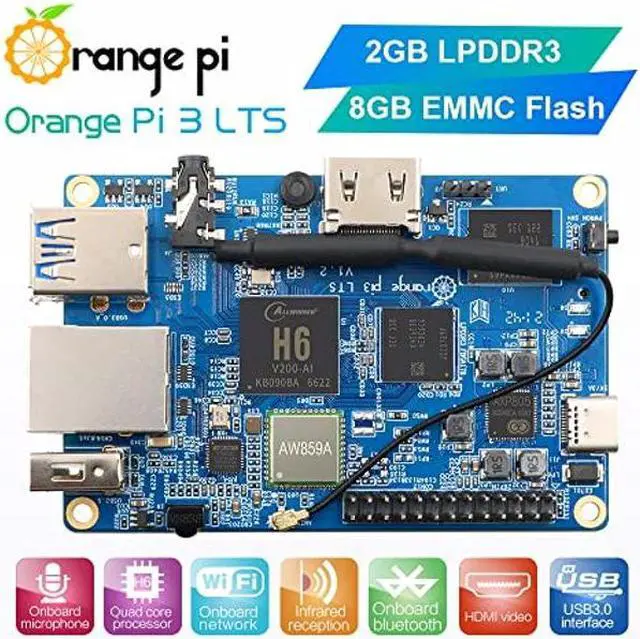

Orange Pi 3 LTS Allwinner H6 2GB LPDDR3 8GB EMMC Flash Quad Core 64 Bit Single Board Computer 5V3A Type-C Support Android 9.0, Ubuntu, Debian Mini PC (PI3 LTS+ 3A Type-C Power Supply+Al Heat Sink)
- Orange Pi 3 LTS open source board adopts Allwinner quad core 64 bit A53 high-performance processor, integrated 3.5mm audio port, TF card storage, HDMI2.0a output, power management, infrared reception, USB2.0/3.0 interface, LED indicator, support Gigabit Ethernet. Note: Our shipping time generally takes 15 days, Not as long as Amazon suggests.
- The running memory of Orange PI3 LTS is 2GB LPDDR3, and it equipped with 8G EMMC Flash. Allwinner H6 Support Android 9.0, Ubuntu, Debian Single Board Computer, It can be used for office study, game entertainment, software development, intelligent embedding, etc.

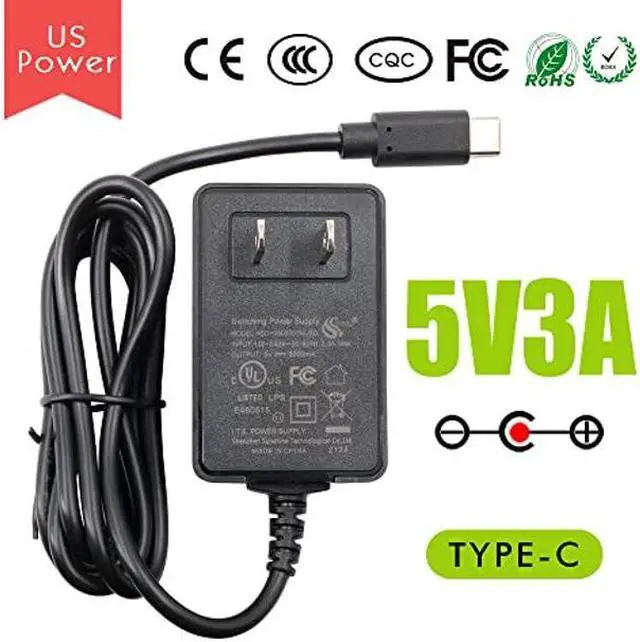

- 1 * USB 3.0 HOST, 2 * USB 2.0 HOST. Orange Pi 5V3A US Type-C Power Supply, with Super Secure Protective.
- Onboard WIFI+Bluetooth: AW859A chip; Support IEEE 802.11 a/b/g/n/ac; Support BT5.0

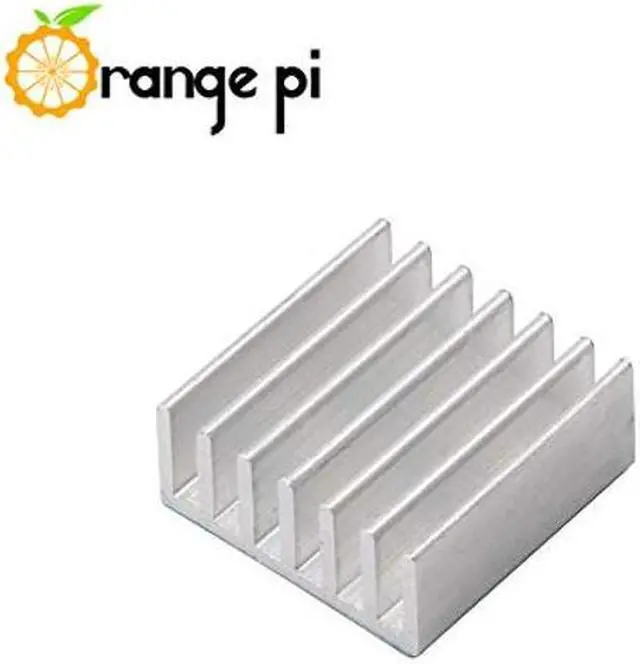

- Include: PI3 LTS Single Board Computer+ Type-C Power Supply+Al Heat Sink
- Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD vide
+
+
Overview
Specs
Reviews
Note: We will choose efficient logistics deliver your order and our delivery date generally takes 15 days, Faster than Amazon's suggested date.
CPU:
Allwinner H6 Quad-core 64-bit 1.8GH z high-performance Cortex-A53 processor
GPU:
High-performance multi-core GPU Mali T720
OpenGL ES 3.1 / 3.0 / 2.0 / 1.1
Microsoft DirectX 11 FL9_3
ASTC (Adaptive Scalable Texture Compression)
Floating point operation greater than 70 GFLOPS
RAM:
2GB LPDDR3 (shared with GPU)
Onboard Storage:
Micro SD card slot
8GB EMMC Flash
Onboard Ethernet:
Support 10/100M/1000M Ethernet
Video Output:
HDMI 2.0 a
TV CVBS output
Audio Output:
HDMI output
3.5 mm audio port
Power Supply:
5V3A Type-C
Power management chip:
AXP805
USB Port:
One USB 3.0 HOST, Two USB 2.0 HOST
Low-level peripherals:
26pin connector with I2C*1, SPI*1, UART*1 and multiple GPIO ports
Debug Serial Port:
UART-TX, UART-RX and GND
LED:
Power led & Status led
IR Receiver:
Support IR remote control
Button:
Power button (SW4)
Supported OS:
Android 9.0, Ubuntu, Debian
CPU:
Allwinner H6 Quad-core 64-bit 1.8GH z high-performance Cortex-A53 processor
GPU:
High-performance multi-core GPU Mali T720
OpenGL ES 3.1 / 3.0 / 2.0 / 1.1
Microsoft DirectX 11 FL9_3
ASTC (Adaptive Scalable Texture Compression)
Floating point operation greater than 70 GFLOPS
RAM:
2GB LPDDR3 (shared with GPU)
Onboard Storage:
Micro SD card slot
8GB EMMC Flash
Onboard Ethernet:
Support 10/100M/1000M Ethernet
Video Output:
HDMI 2.0 a
TV CVBS output
Audio Output:
HDMI output
3.5 mm audio port
Power Supply:
5V3A Type-C
Power management chip:
AXP805
USB Port:
One USB 3.0 HOST, Two USB 2.0 HOST
Low-level peripherals:
26pin connector with I2C*1, SPI*1, UART*1 and multiple GPIO ports
Debug Serial Port:
UART-TX, UART-RX and GND
LED:
Power led & Status led
IR Receiver:
Support IR remote control
Button:
Power button (SW4)
Supported OS:
Android 9.0, Ubuntu, Debian
