$86.99
Ships from China.
Meet Your Seller

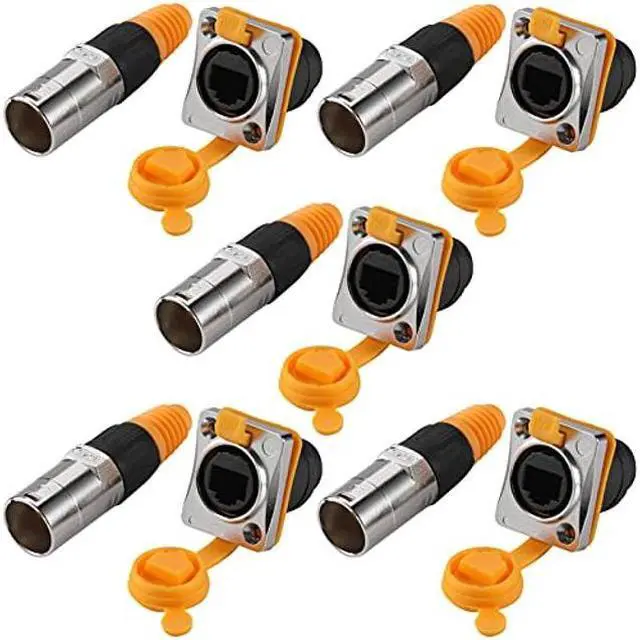

PENGLIN 5set RJ45 Panel Mount Waterproof Socket Connector, IP67 RJ45 Ethernet LAN Extension Cable Coupler, Cat5/Cat5e/Cat6 Female to Female Socket Jack for Outdoor Network
- [(EASY INSTALLATION)] The waterproof rj45 connector is used to repairs to outdoor CAT5/5E/6 cables, and also to extend existing cables. Quick click-on coupling, Simple to install, plug and play.
- [(IP67 WATERPROOF)] The Waterproof RJ45 Connector are IP67 Compliant. Silicon rings and clamping nuts provide a perfect waterproof/dust-proof, prevent the network parts from moisture, dirt rain & snow and insects for quality connections.
- [(DURABLE QUALITY)] This kit is equipped with a cable connector sheath, which realizes an extremely sturdy and lockable upgrade of the ordinary RJ45 connector.
- [(NO LAG)] Plug and play and enjoy high-speed data transmission with this RJ45 CAT5e panel mount ethernet connector.
- [(WIDELY APPLICATIONS)] Used to outdoor IP camera, ADSL LAN cable, LED equipment, underground engineering, communication field, etc.
+
+
Overview
Specs
Reviews
This RJ45 network signal connector is a Female/Female Couple (5 Set). Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. The rugged connection system provides a solution for broadband data transmission in harsh environments. Especially these connectors can apply for industrial ethernet in audio, business, amusement, live stage action, DMX lighting, industrial and outdoor in network environments.
Pins: 8 Pin
Base shape: D type
Assembly Wire: Plug/unplug
Transmission Category: Cat 5E (compatible with cat5/cat6)
Transmission Speed: 10BASE-T, 100 BASE-T
Cable specification: 0.15 mm^2~ 0.2 mm^2/26-24 AWG
Cable Range: O 5.5 - 7.5 mm

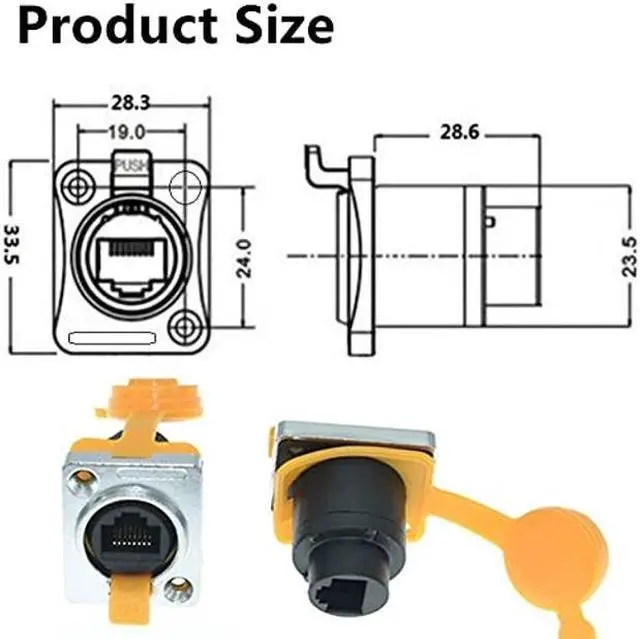

Installation panel thickness: 3-6mm
Connection Type: RJ45
Waterproof Level: IP67
Rated Voltage: 50V
Rated Current: 1.5A Withstand Voltage(AC.
V)1min: 1000V
Contacted Resistance: Less than 10mO
Insulation Resistance: more than 500MO
Durability: 1000 mating cycles
Shell: Zinc alloy (ZnAl4Cu1)
Socket Contact Pin: Bronze Contact Pin Gold Plating Thickness: 6u inch
Insulator: PA66
Waterproof Rubber Ring: silicone
Working Temperature: -30~120
Relative Humidity: less than 90%RH
Flame Retardant Rating: UL94V-0
Package Included: 5x RJ45 Panel Mounting Waterproof Connector 5x IP67 Dustproof Waterproof Socket Jack
Specifications
:Pins: 8 Pin
Base shape: D type
Assembly Wire: Plug/unplug
Transmission Category: Cat 5E (compatible with cat5/cat6)
Transmission Speed: 10BASE-T, 100 BASE-T
Cable specification: 0.15 mm^2~ 0.2 mm^2/26-24 AWG
Cable Range: O 5.5 - 7.5 mm
Installation panel thickness: 3-6mm
Connection Type: RJ45
Waterproof Level: IP67
Rated Voltage: 50V
Rated Current: 1.5A Withstand Voltage(AC.
V)1min: 1000V
Contacted Resistance: Less than 10mO
Insulation Resistance: more than 500MO
Durability: 1000 mating cycles
Shell: Zinc alloy (ZnAl4Cu1)
Socket Contact Pin: Bronze Contact Pin Gold Plating Thickness: 6u inch
Insulator: PA66
Waterproof Rubber Ring: silicone
Working Temperature: -30~120
Relative Humidity: less than 90%RH
Flame Retardant Rating: UL94V-0
Package Included: 5x RJ45 Panel Mounting Waterproof Connector 5x IP67 Dustproof Waterproof Socket Jack
