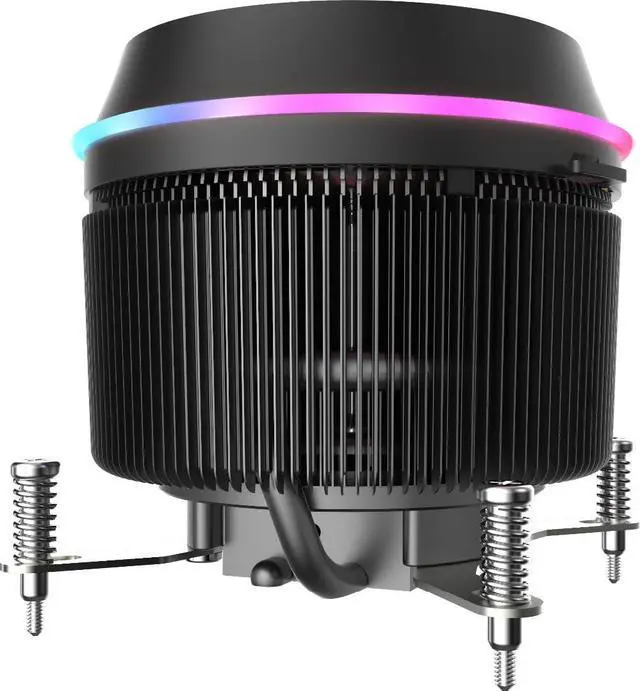

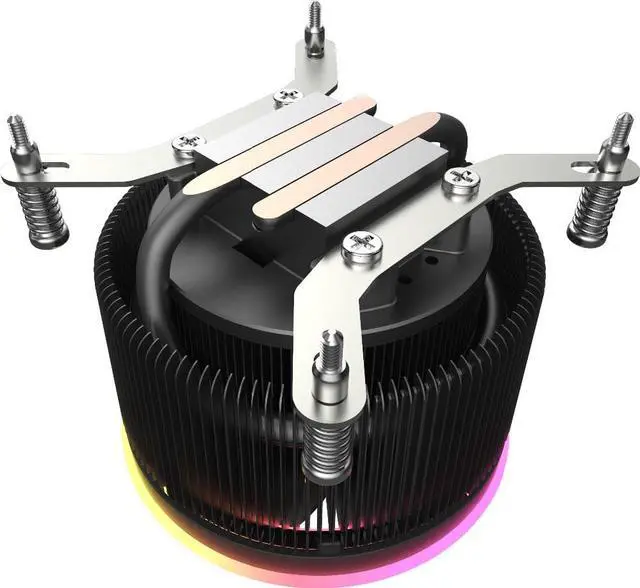

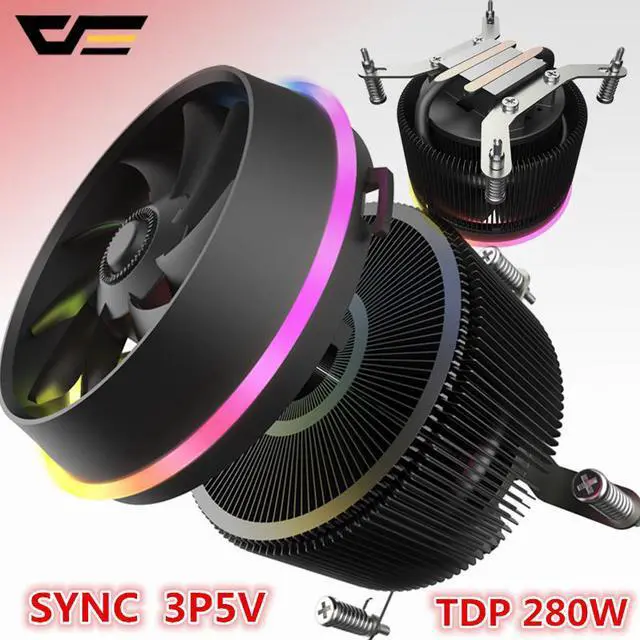

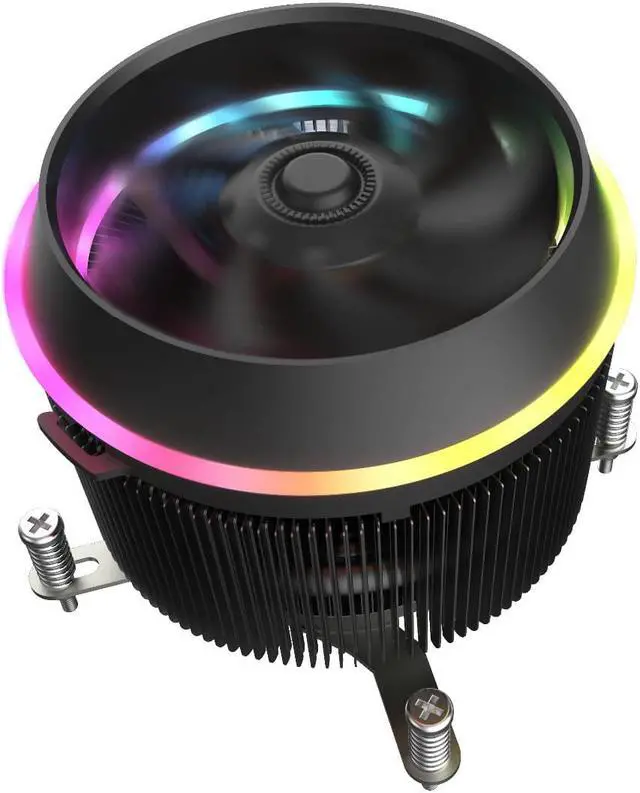

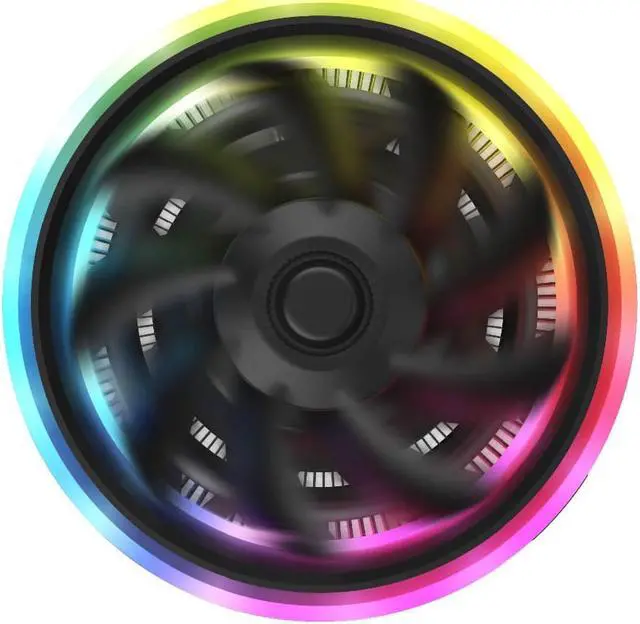

CPU Cooler 5V TDP 280W 4pin LED PWM RGB Fan Radiator Cooler Motherboard Sync Control Cooling for AM3/AM4/2011/LGA

shadow PROSpecification:

CPU Cooler 5V TDP 280W 4pin LED PWM RGB  Fan Radiator Cooler Motherboard Sync Control Cooling for AM3/AM4/2011/LGA

Specification:

1: Radiator dimensions: 100*100*72 mm

2: Fan dimensions: 100*100*25 mm

3: Fan rotation speed: 800-2500RPM

4: Fan connector: 4pin PWM

5: Noise: 29.6dBA(MAX)

6: Max air volume: 29.3CFM

7: Pressure: 3.61mmH2O(MAX)

8: Bearing: Hydraulic Bearing

9: Voltage: 12VDC

10: Life: 30000hours

11: Rated power: 4.2W

15: Compatibility: LGA1151/1150/1155/1156/115X

TDP 280W

Package Contents:

1pcs CPU Air Cooler

4pcs Mounting Screws

Please Note:

Please connect the CPU Air Cooler with 12V 4 pin Connector on the motherboard. You may short circuit your motherboard if you connect to other ports.

For the MB without 5V ADD-HEARDE: Please plug the 4 Pin connector of the CPU air cooler into the 12V RGB-HEADER ONLY. It will has a fixed mode with RGB lighting effect.

For the MB with 5V ADD-HEARDE: Please plug the 4 Pin connector of the CPU air cooler into the 12V RGB-HEADER and plug the 3 Pin into the 5V ADD-HEADER. Which will allow you to change the color as you like via motherboard.

Also, They can synchronize with other ADD-RGB devices, Such as MR12 controller. Please plug the 4 Pin connector of the CPU air cooler into the 12V RGB-HEADER and plug the 3 Pin into the MR12 controller.
