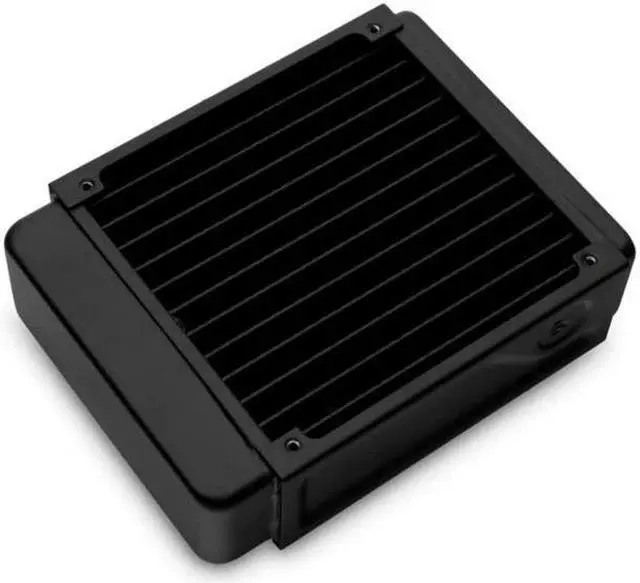

EK-CoolStream Classic PE 120mm Copper Black Radiator 153 x 120 x 45mm (L x W x H) G1/4 ,Water Cooling Heat Dissipation

Details:EK-CoolStream Classic PE 120 medium thickness copper radiators are designed for optimal airflow throughout the radiator surface with low-density fin structure. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation at low and medium airflow operations which are most common in consumer scenarios.

EK quality level, best price-performance ratio to date and unique minimalistic design make these EK-CoolStream Classic PE series radiators a perfect choice for any computer water cooled system. 45mm thick design with low FPI allows for high-performance cooling at low fan speeds due to the thicker core and low restriction making it ideal for users who wish a truly silent system.

This product features two G1/4 threaded ports. EK recommends the use of EK compression fittings.

Technical details:

Material:

Copper fins

90% copper tubing (H90)

Brass chambers

Steel housing

Dimensions: 153 x 120 x 45mm (L x W x H)

Weight: 0.65kg

Liquid Capacity: ~140mL

FPI: 13

Port threads: 2x G1/4

Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping

Pressure tested: 1bar(g)

Enclosed:

EK-CoolStream Classic SE series radiator

Phillips Slotted UNC 6-32 screws (l=30mm)

Phillips Slotted UNC 6-32 screws (l=5mm)

PLEASE NOTE:

When using fans other than standard 120x120x25mm size please use appropriately long screws!

Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by product warranty!

This product should NOT be installed with any aluminum Fluid Gaming parts!
