    GLOTRENDS M.2 Heatsink 0.12inch/3mm Thick Fit for 2280 M.2 PCIe 4.0/3.0 NVMe SSD

    (1) Write a Review
    • A set
    • B set
    • M.2 heatsink fits for PS5/PC installation. 0.12inch/3mm high m.2 heatsink well fit for PS5 installation as well as PC M.2 Slot.
    • Universal compatible with all kinds of M.2 2280 SSD, including M.2 PCIe 4.0 SSD, PCIe 3.0 SSD, and PS5 M.2 SSD, such as WD Black SN850, Sabrent Rocket 4 Plus, Sabrent Rocket 4, Samsung 980 Pro, Samsung 970 Pro, Silicon Power US70, and etc.
    • Unique dual installation solution: Metal clips + rubber bands for M.2 SSD installation. No need to worry about rubber bands material aging or SSD long time high-temperature operation.
    • 5°C- 20°C cooling effect (Varies depending on the environment) to keep your M.2 SSD under good performance even full-load operation. M.2 heatsink can extend the life of M.2 PCIe SSD.
    • A thermal pad is included. To conduct heat from M.2 SSD to M.2 heatsink, the thermal pad is put between M.2 SSD and M.2 Heatsink. It is a low viscosity, thermal conductivity, and insulation.
    +
    +
    Overview
    Specs
    Reviews (1)
    Compatibility:
    1) Samsung 950Pro/ 960Evo/ PM951/ PM961/ SM951/ SM961/970 EVO /970 PRO etc
    2) Intel Optane SSD 800P Series, Intel SSD 760p Series, Intel SSD 660p Series, Intel SSD 600p Series
    3) Plextor: M6GV / M7VG / M8PeGN / M8SeGN
    4) San Disk: X300 / X300S / X400 / Z400S / X110 / A400
    5) Transcend: MTS800 / MTS820
    6) ADATA: SP550 / ASX7000NP / XPG-SX6000 / XPG-SX8000 / XPG GAMMIX S10 / SU800 / AXNS381E
    7)Toshiba: Q200 / XG3 / XG4 / OCZ RD400 / THNSNK / OCZ: RD400
    8) Crucial Micron: MX200 / MX300 / M510 / M600 / 1100
    9) WD: WD Green M. 2 / WD Blue M. 2 / WD Black

    Precision Design
    Perfect fit for 2280 M.2 SSD;
    Strict process and quality control;
    Complete fittings;
    Professional R&D team.

    M. 2 heatsink for M. 2 NVME 2280 SSD
    1) Aluminum body, Anodic Oxidation Surface Treatment
    2) Groove Design: Greatly Increase the Heat Dissipation Area, with 5°C- 20°C Cooling Effect (Varies depending on the environment).
    3) Item Size: 0.87 x 2.76 x 0.12 in. (22 x 70 x 3mm) Net Weight: 0.28 oz / 8g.
    4) Heat-conducting Silica Gel Pad (Thickness: 1mm).
    5) 2 optional fixing ways: Stainless metal buckles (Durable and no deformation even long term condition) and high temperature resistant silicone rings (height adjustable for different height M. 2 SSD)

    To be noted:
    1) Please remove the transparent protective films of Silica Gel Pad before using, otherwise it will reduce the heat conduction effect;
    2) Silica Gel Pad is Low Viscosity, will not cause damage to SSD.
    GLOTRENDS
    M,.2 Heatsink for M.2 PCIe SSD

    Fits for PS5/PC installation

    m.2 heatsink
    m.2 heatsink
    M.2 Heatsink on M.2 PCIe Adapter
    m.2 heatsink
    M.2 Heatsink on Motherboard
    m.2 heatsink
    M.2 Heatsink on PS5
    m.2 heatsink
    Aluminum Body
    • Groove Design: Greatly increase the heat dissipation area, with 5°C- 20°C cooling effect (Varies depending on the environment).

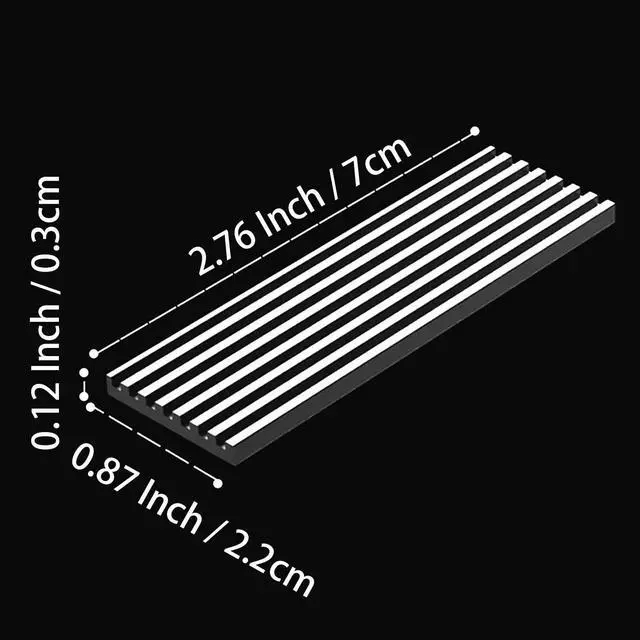

    • Item Size: 2.76 x 0.87 x 0.12in. (22 x 70 x 3mm), Net Weight: 0.28oz / 8g.
    m.2 heatsink

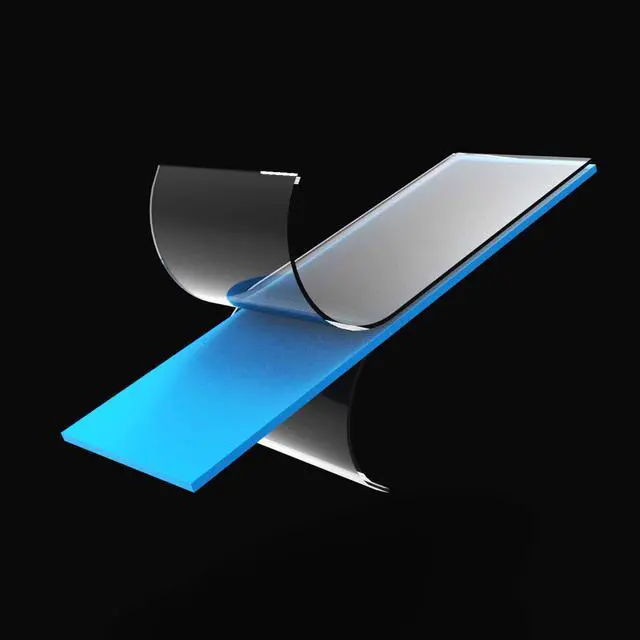

    Thermal Pad
    • Please tear off the transparent protective film of the thermal pad, otherwise will be no thermal conductivity.
    • Aging time is 1-3 years, repeated use will accelerate aging. A little soft, a little elastic, but no elasticity, pull hard will break.
    • Size: 2.64x0.79x0.04 inch
    m.2 heatsink

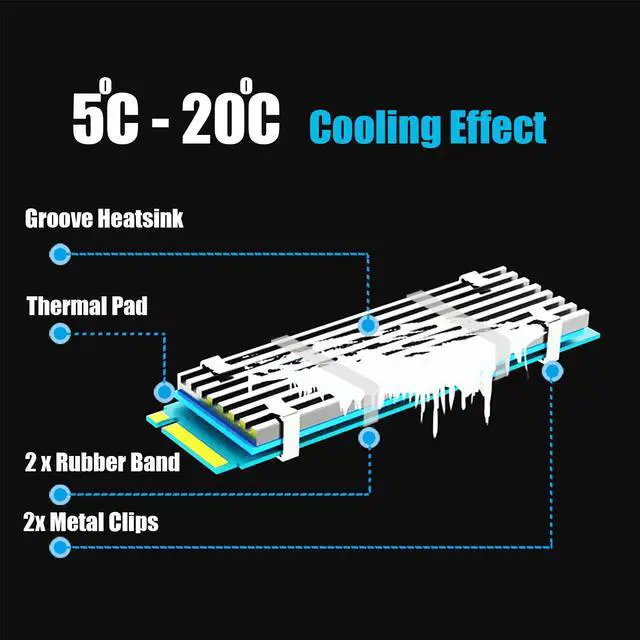

    Package Inlcluding
    1. M.2 Heatsink
    2. Thermal Pad
    3. 2 x Metal Clips
    4. 2 x Rubber Bands
    5. Cleaning towel
    m.2 heatsink
    Universal fit for 2280 M.2 SSD
    Fit for M.2 PCIe NVMe 3.0 SSD
    • Samsung: 980/ 970 PRO/ 970 EVO Plus/970 EVO
    • Intel Optane SSD P1600X Series , Intel SSD 6 Series
    • Plextor: M9P(G) Plus, M9PGN Plus, M9Pe(G), M9PeGN
    • SanDisk Extreme PRO M.2 NVMe 3D SSD
    • Transcend PCIe SSD 220S, PCIe SSD 110S/112S
    • ADATA: XPG SX8100, XPG SX6000 Lite, XPG SX8200 Pro, XPG SX6000 Pro
    • Crucial: P5 SSD, P2 SSD
    • Western Digital: WD_BLACK SN750 SE, WD Blue SN550, WD Green SN350
    • Sabrent: Rocket Q, Rocket
    Fit for M.2 PCIe NVMe 4.0 SSD
    • WD Black SN850
    • Sabrent Rocket 4 Plus
    • Sabrent Rocket Q4
    • Samsung 980 PRO
    • Silicon Power US70
    • Plextor: M10P(GN)
    • Transcend PCIe SSD 240S
    • Crucial P5 Plus
    Fit for PS5 M.2 PCIe SSD slot

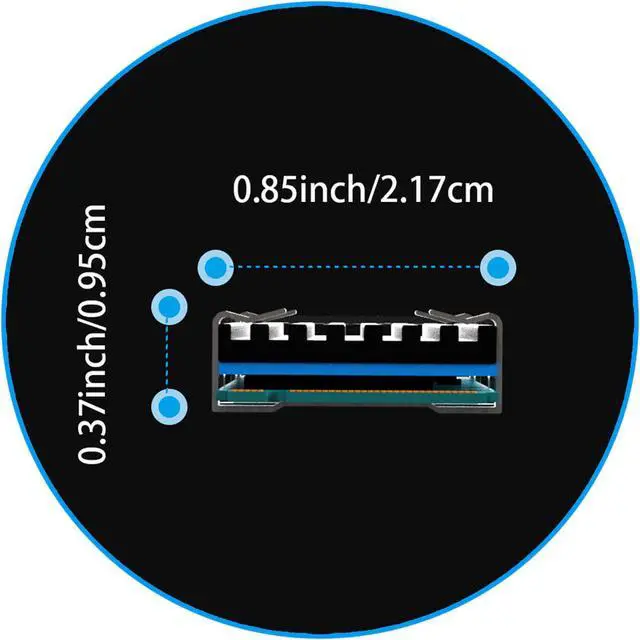

    • Size of our heatsink: 70mm x 21.7mm x 9.5mm (2.76in x 0.85 in x 0.37in)
    • Size of PS5 M.2 PCIe SSD slot: 110mm x 25mm x 11.25mm (4.33in x 0.984 in x 0.442in)
    Installation

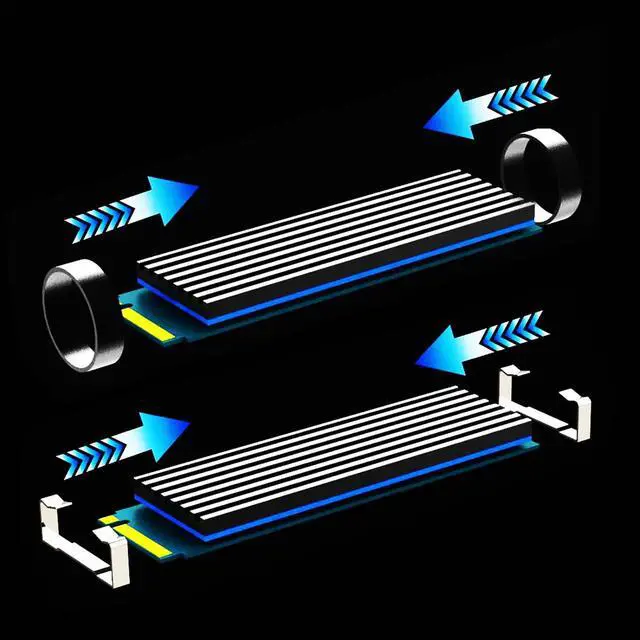

    Metal clips + rubber bands

    image for this item

    Unique dual installation solution

    • Metal clips + rubber bands for M.2 SSD installation.
    • No need to worry about rubber bands material aging or SSD long time high-temperature operation.
