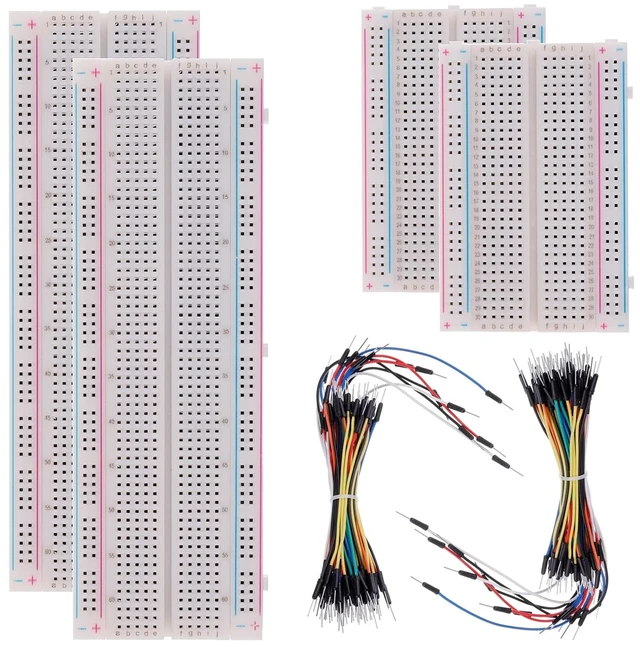

3 Values 130 Pcs Solderless Breadboard 4 Pcs 830 Tie Points & 400 Tie Points & 126 Pcs Flexible Breadboard Jumper Wires
- high quality Solderless Breadboard Assortment Kit

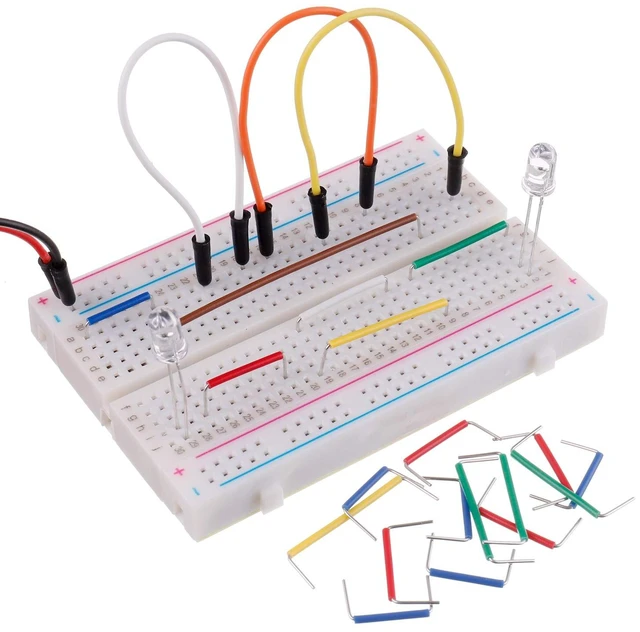

- Breadboard is a solderless device for temporary prototype with electronics and test circuit designs. Most electronic components in electronic circuits can be interconnected by inserting their leads or terminals into the holes and then making connections through wires where appropriate.
- The breadboard has strips of metal underneath the board and connect the holes on the top of the board. Note that the top and bottom rows of holes are connected horizontally and split in the middle while the remaining holes are connected vertically.
- The Breadboards Can be Spliced According to the Unit, the Structure is Clear in Color.
- Material: ABS Plastic Panel, Tin Plated Phosphor Bronze Contact Sheet.
+
+
Overview
Specs
Reviews
high quality Solderless Breadboard Assortment Kit
Features:
The breadboard and jumper wires kit is ideal for setting up a trial circuit, prototype or experimenting.

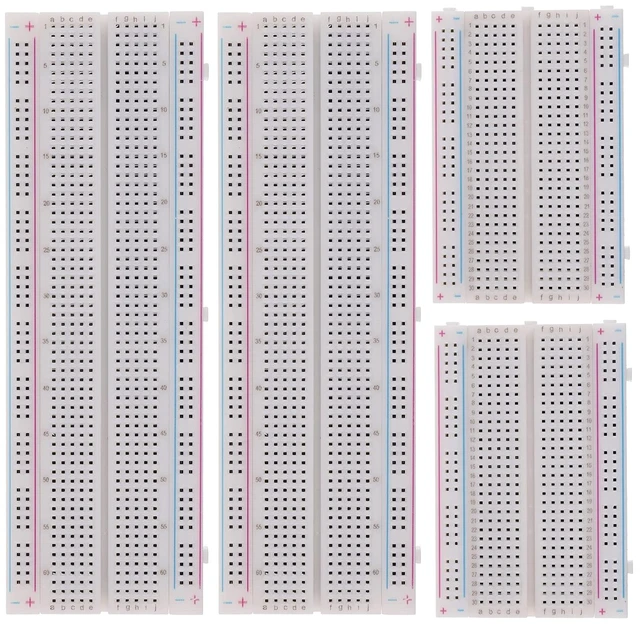

Breadboards:
830 Points breadboard size: 6.5 x 2.1 x 0.3 inch/ 165 x 55 x 8.5 mm
830 tie points breadboards: 630 tie-point ic-circuit area plus 2x100 tie-point distribution strips providing 4 power rails.
400 Points breadboard size: 3.2 x 2.1 x 0.3 inch/ 82 x 55 x 9 mm
400 tie points breadboards: 300 tie-point ic-circuit area plus 2x50 tie-point distribution strips providing 4 power rails.
Material: ABS Plastic Panel, Tin Plated Phosphor Bronze Contact Sheet.
Breadboard color: White

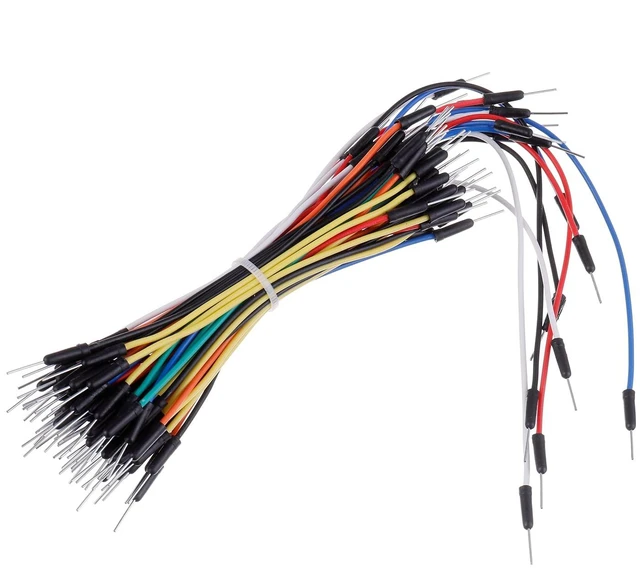

Jumper Wires:
Material: High-grade copper core
Color: 10 assorted colored
Cable Length: About 8 inch / 20cm
Current: 20-40mA.
Package includes:
2PCS 830 Tie-Points Breadboard
2PCS 400 Tie-Points Breadboard
126PCS Flexible Breadboard Jumper Wires
