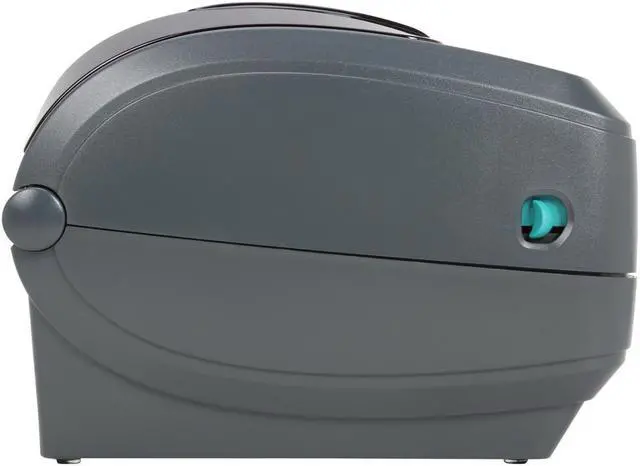

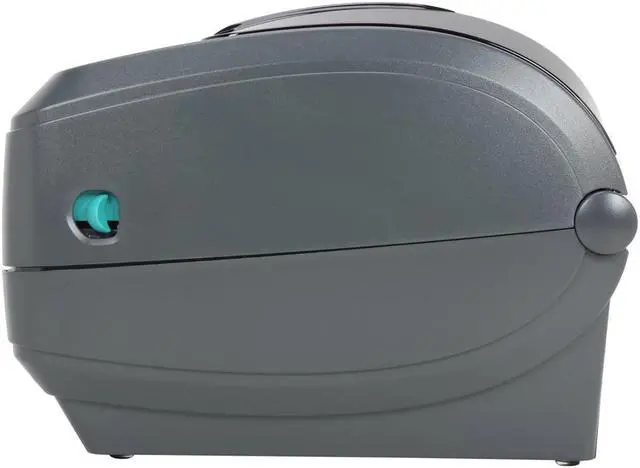

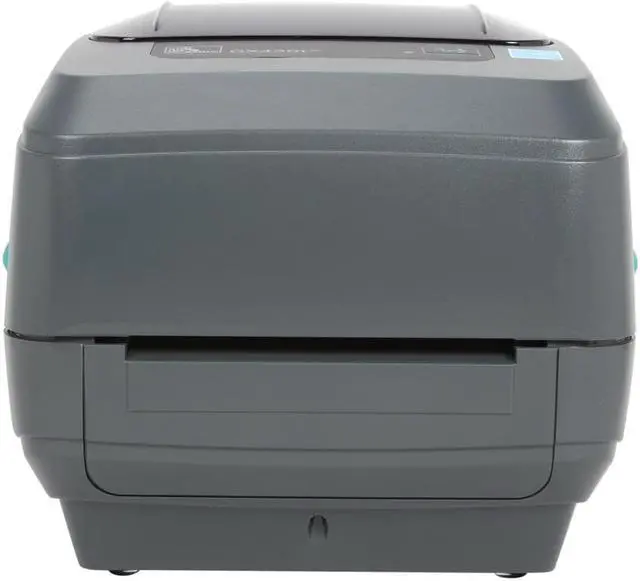

GX430t 4" Performance Desktop Thermal Transfer Label Printer, 300 dpi, USB, Serial, Ethernet, EPL2, ZPLII GX43-102410-000

Model GX430t (GX43-102410-000)
Printer
Print Technology Thermal Transfer Printer
Printer Type Desktop
Print Speed 4.00" / 102.00 mm per second
Max Resolution(B&W) 300 dpi / 12 dots per mm
Memory Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash ( 1.5 MB available to user)
Optional: 64 MB Flash (68 MB total) with real time clock ( 65.5 MB available to user)
Fonts Included 16 resident expandable ZPL II bitmap fonts
One resident scalable ZPL font
Five resident expandable EPL2 bitmap fonts
Supports user-defined fonts and graphics - including customer logos
Cutter Tear Bar
Media Handling
Media Type Black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
Media sizes supported Maximum label and liner width: 4.25" ( 108.00 mm)
Minimum label and liner width: 0.75" ( 19.00 mm)
Maximum label and liner length: 0.38" ( 9.70 mm) to 39.00" ( 991.00 mm)
Maximum roll diameter: 5.00" ( 127.00 mm)
Core diameter: 0.50" ( 12.70 mm), 1.00" ( 25.40 mm), 1.50" ( 38.10 mm)
Media thickness: 0.003" ( 0.08 mm) to 0.0075" ( 0.20 mm)
Connections
Interface Serial / USB / Ethernet
Features
Features EPL and ZPL programming languages standard
OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Dual-wall reinforced plastic construction
32 bit RISC processor
XML-enabled printing
Print width: 4.09" ( 104.00 mm)
Print length: 39.00" ( 991.00 mm)
Media sensors: Reflective, Transmissive
Outside diameter: 1.34" ( 34.00 mm)
Standard length: 244.00 ft. ( 74.00 m)
Ratio: 1:1
Ribbon width:
Recommended to be at least as wide as media
1.33" ( 33.80 mm) to 4.30" ( 110.00 mm)
ID Core: 0.50" ( 12.70 mm)
Dimensions & Weight
Dimensions 7.50" x 7.60" x 10.00"
Weight 4.60 lbs.
Additional Information
Date First Available September 11, 2012
