BUCIER USB 3.0 D Panel Mount Socket Dual 2X USB Port Solderless Series D-Type Connector Female to Female Coupler Pass Through Adapter with Screws

USB3.0 dual-port connector:This USB 3.0 D-Type module panel Mount Socket is independent channel,independent work,no mutual influence.
[High transmission speed]:This dual 2x USB Port Solderless Series D-Type Connector Female to Female Coupler is independent dual channel socket design,transmission speed is up to 5.0Gbps.Compatible with USB2.0.
[Easy to Install]:This Solderless Series D-Type Connector is integrated dual-channel USB signal connection,and save installation space,no soldering,no installation tools,just plug the standard USB head directly for quick installation.
[Widely Used]This Female to Female Coupler Pass Through Adapter can be installed on the ground socket,desktop socket,86 panel,used for cinema, stage,home audio and video,KTV and various weak current engineering facilities connection port.

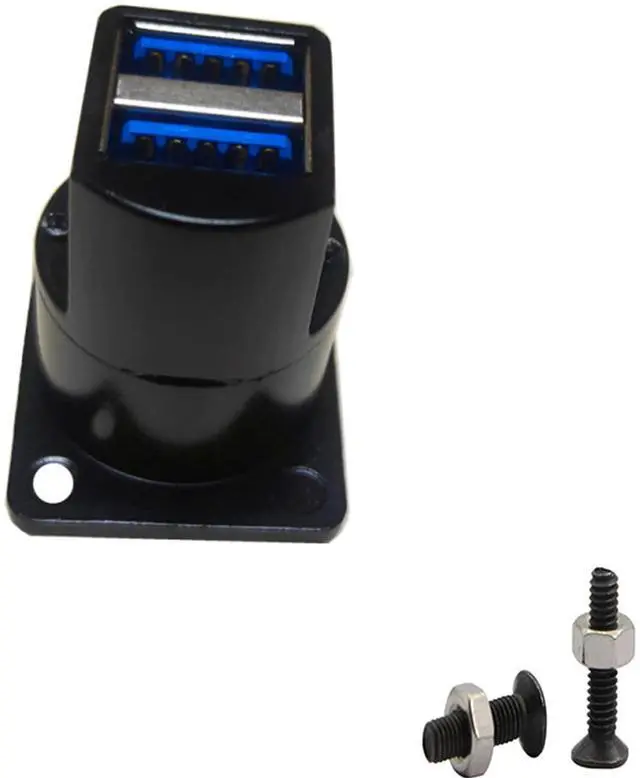

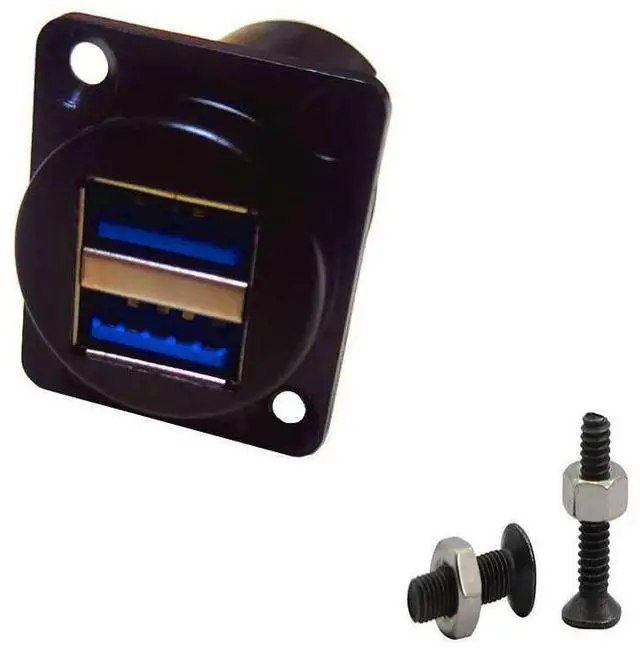

[Screws included]:The screws that need to be installed are provided with the product,no soldering.

Overview

Specs

Reviews

This USB 3.0 D Panel Mount Socket is widely used in audio,video and photoelectric networks.Its base design is based on industrial standard panel apertures.

Type: Connectors.

Color: Black.

Electrical parameters

Contact resistance: <10M

Dielectric strength: DC1kV

Frequency range: 1-100MHz

Insulation resistance:> 0.5G

Rated current: 1.5A

Rated voltage: 50V

Mechanical parameters

Insertion pressure: 10 N

Withdrawal pressure: 10 N

Service life:> 1000 times

Base shape: D type

Material

Contact plating: 7µm Au over Ni plating

Insulator: PBTP 15% GR

Panel: Zinc diecast (ZnAl4Cu1)

Package : 1 pcs USB 3.0 dual port dual channel connector;2 pcs screws.
