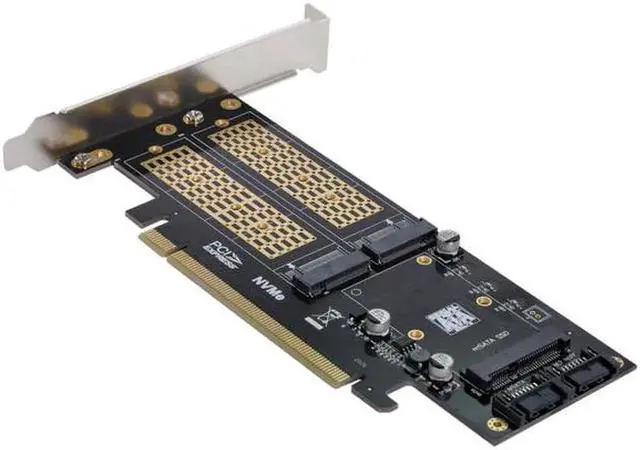

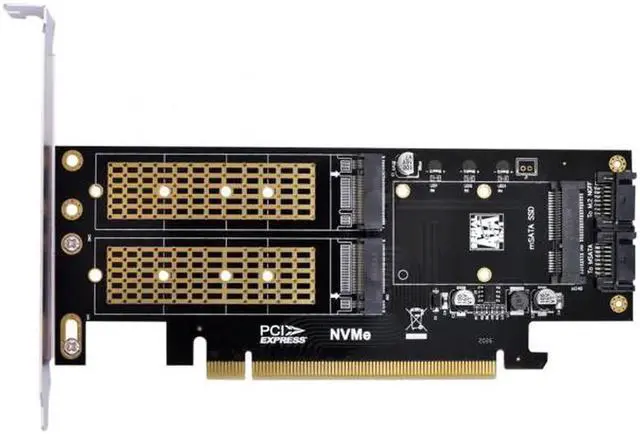

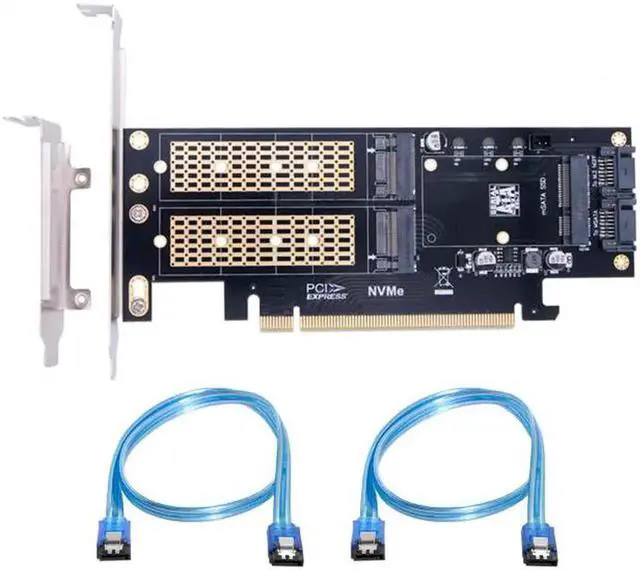

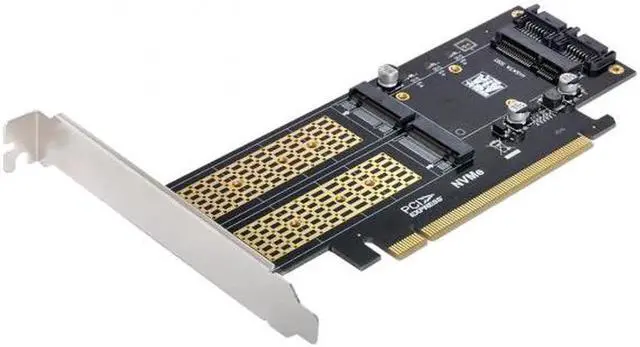

JVFYI SA-028 PCI Express PCI-E 3.0Dual SATA to NGFF NVME MSATA M-Key B/M-key SSD Card Adapter 3in1

PCI Express PCI-E 3.0 Dual SATA to NGFF NVME MSATA M-Key B/M-key SSD Card Adapter 3in1

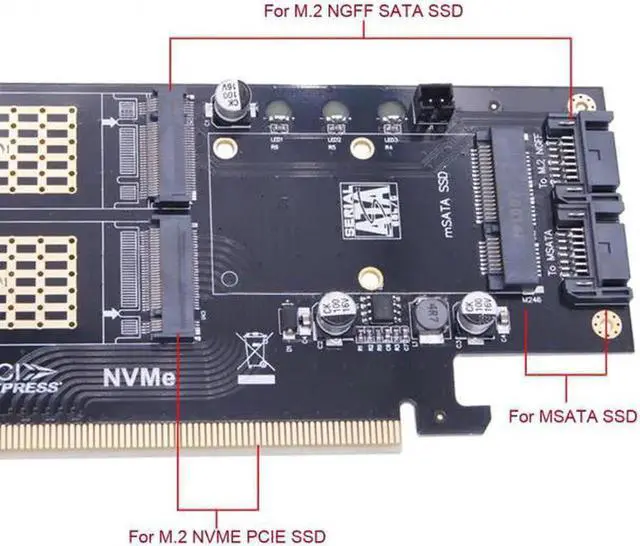

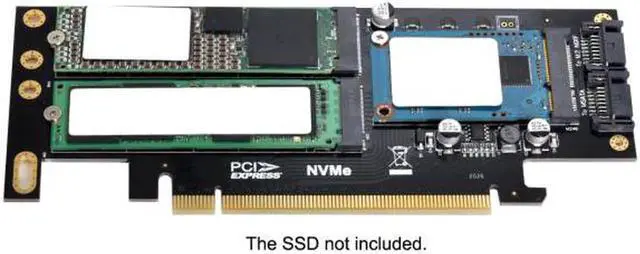

The three SSD Can work at same time. Transfer to the operating system and does not require any software drivers.

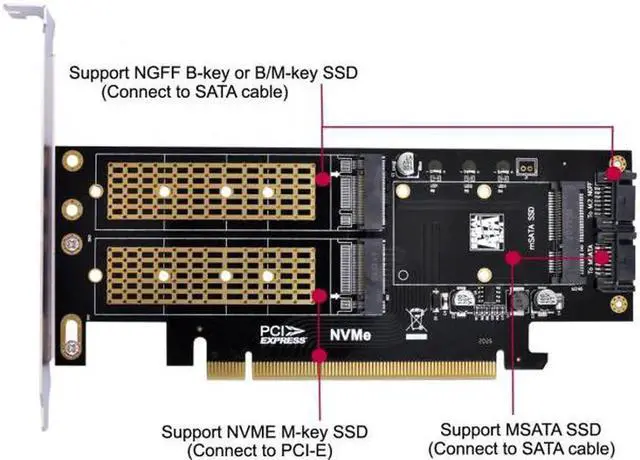

For MSATA SSD, You need to connect the SATA cable to Motherboard SATA Port.

For NGFF B/M-key or B-Key SSD, You need to connect the SATA cable to Motherboard SATA Port.

For NGFF M-key NVME SSD, You need to connect the PCI-E to Motherboard.

Powered from PCI-E port for three SSDs. no need extral power.

Support Type 2230/2242/2260/2280 type M. 2 SSD and MSATA SSD.

System requirement:

Motherboard: Z97 or later and Windows 10 or later.
