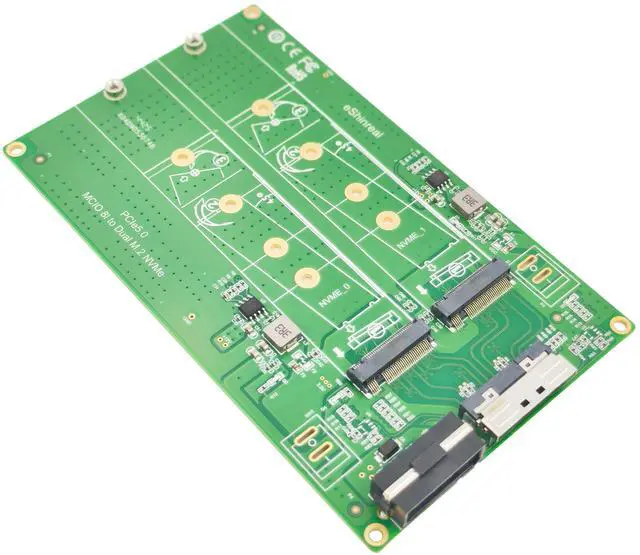

eShinreal MCIO x8 to Dual M.2 Gen5 NVMe SSD Adapter-XIC 0582
- Seamlessly expand your storage with the eShinreal XIC 0582 Adapter, supporting two Gen5 M.2 NVMe SSDs for advanced performance.
- Designed for versatility, this adapter accommodates 2260, 2280, and 22110 M.2 NVMe SSD sizes, ensuring broad compatibility.
- Utilizes a robust MCIO 74-pin interface, delivering reliable connections for demanding data transfer applications.
- Features a 4-pin power connector supporting both 12V and 5V inputs, allowing flexible integration into diverse system builds.
- Ideal for systems with PCIe bifurcation support, the adapter ensures efficient use of MCIO x8 slots for high-speed SSD upgrades.
+
+
Overview
Specs
Reviews
Product Model:XIC 0582
Product Name:MCIO 8I to 2 M.2 Gen5 NVMe SSD Adapter
Interface Type:2*M.2 M-key Connectors

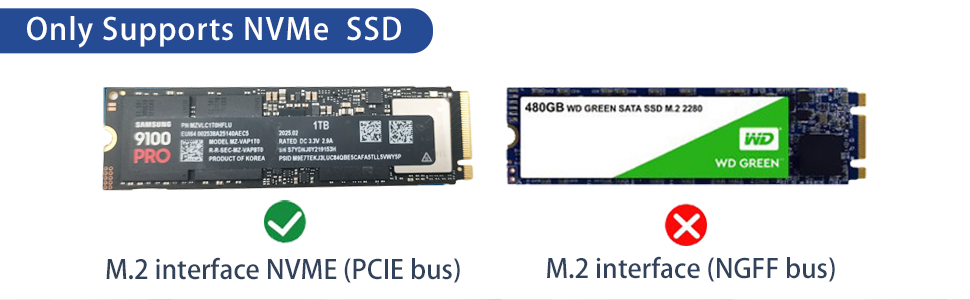

Support Equipment:2*M.2 NVMe SSD
Host Bus Type:PCIe x4x4 (MCIO x8)
Ps. Motherboards BIOS needs to have PCIe Bifurcation Mode Support

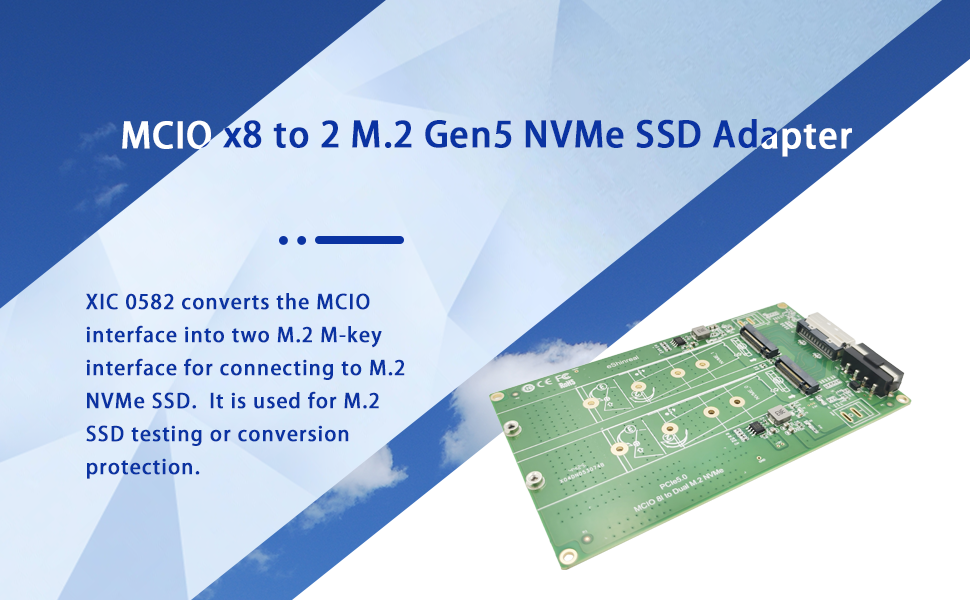

XIC 0582 is a solution designed to effectively support PCIe Gen5 SSDs by converting MCIO interfaces into M.2 connectors. It can expand the MCIO interface of the motherboard into an M.2 connector for installing M.2 SSDs. It uses Gen5 compliant connectors and Very Low Loss PCBs. Usually suitable for SSD expansion or for SSD testing scenarios.

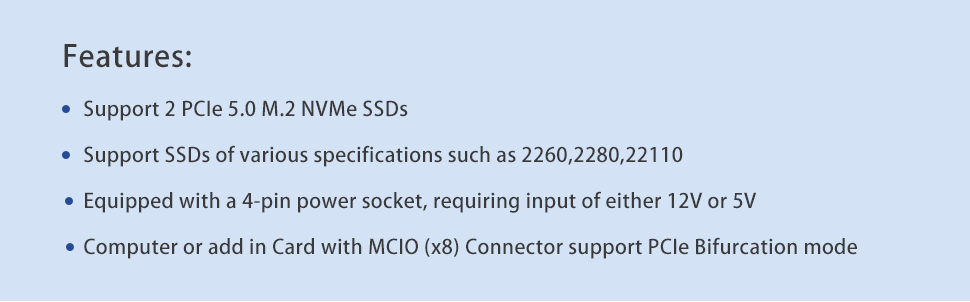

Features:
Supports 2 PCIe 5.0 M.2 NVMe SSDs.
Supports SSDs of various specifications such as 2260,2280,22110.
Equipped with a 4-pin power socket, requiring input of either 12V or 5V.
Computer or add in Card with MCIO (x8) Connector support PCIe Bifurcation mode.
Product Description
The eShinreal XIC 0582 MCIO x8 to 2 M.2 Gen5 NVMe SSD Adapter is a high-performance solution designed for advanced storage expansion in modern computer systems. This adapter enables users to connect up to two PCIe 5.0 M.2 NVMe SSDs to a single MCIO 74-pin interface, supporting multiple SSD form factors, including 2260, 2280, and 22110. Equipped with a 4-pin power connector, it accommodates both 12V and 5V inputs, ensuring stable operation for demanding applications.
To utilize this adapter, a computer or add-in card with an MCIO (x8) connector that supports PCIe bifurcation mode is required. Ideal for professionals and enthusiasts seeking to maximize storage speed and capacity, the eShinreal XIC 0582 delivers reliable performance and broad compatibility within the computer hardware industry.
- Manufacturer: eShinreal
- Model: XIC 0582
- Input Connector: MCIO 74-pin (x8)
- Supported SSDs: 2 x M.2 PCIe Gen5 NVMe (2260/2280/22110)
- Power Input: 4-pin (12V/5V)
- Industry: Computer Hardware
| HARDWARE | |
| Model | XIC 0582 |
| Bus Type | MCIO(PCIe Gen5) |
| Compatible Device Types | M.2 PCIe5.0 NVMe SSD |
| CONNECTOS(S) | |
| Device Connector | 2*M.2( 75 Pin,x4 PCIe ) |
| Host Connector | MCIO 74pin |
| ENVIRONMENTAL | |
| Humidity | 15% ~ 90% |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| PHYSICAL CHARACTERISTICS | |

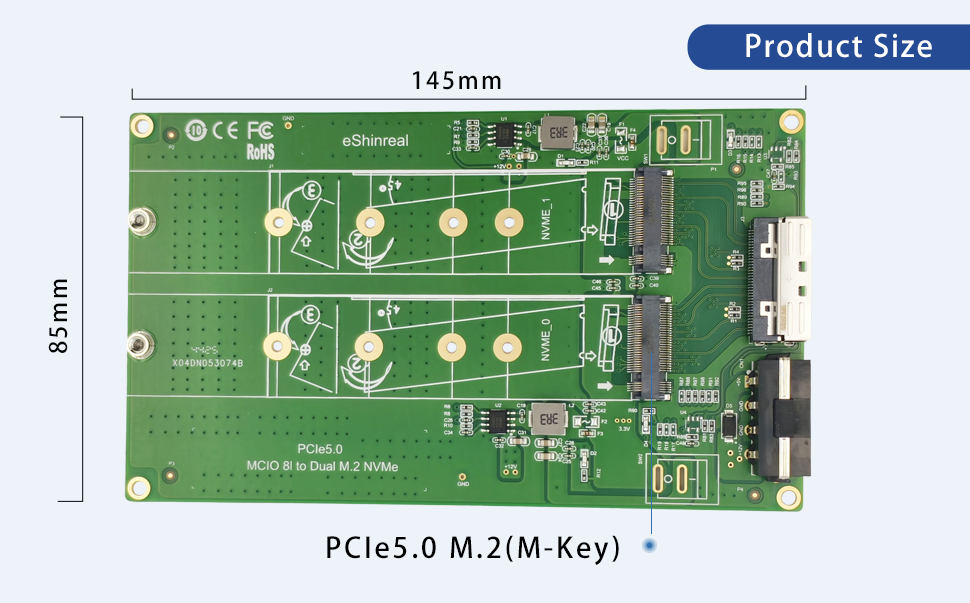

| Product Dimension | 145mm x 85mm |
| Product Weight | 56g |
| PACKAGING INFORMATION | |
| Package size | 180mm x 150mm x 30mm |
| Shipping Weight | 110g |
| WHAT'S IN THE BOX | |
| Included in Package | 1 * MCIO 8I to 2 M.2 Gen5 NVMe SSD Adapter |
| 2 * M.2 Fixed screw | |
