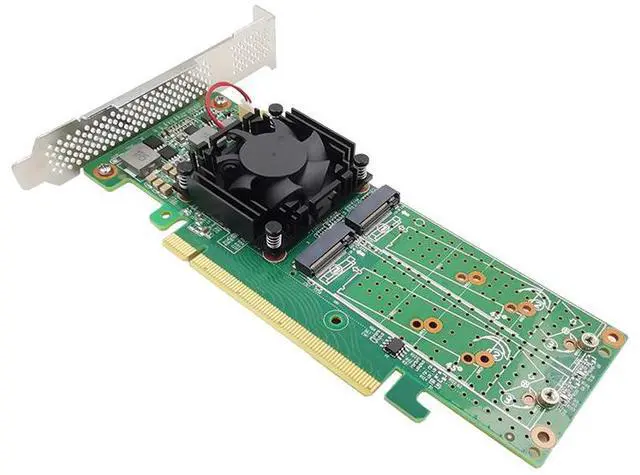

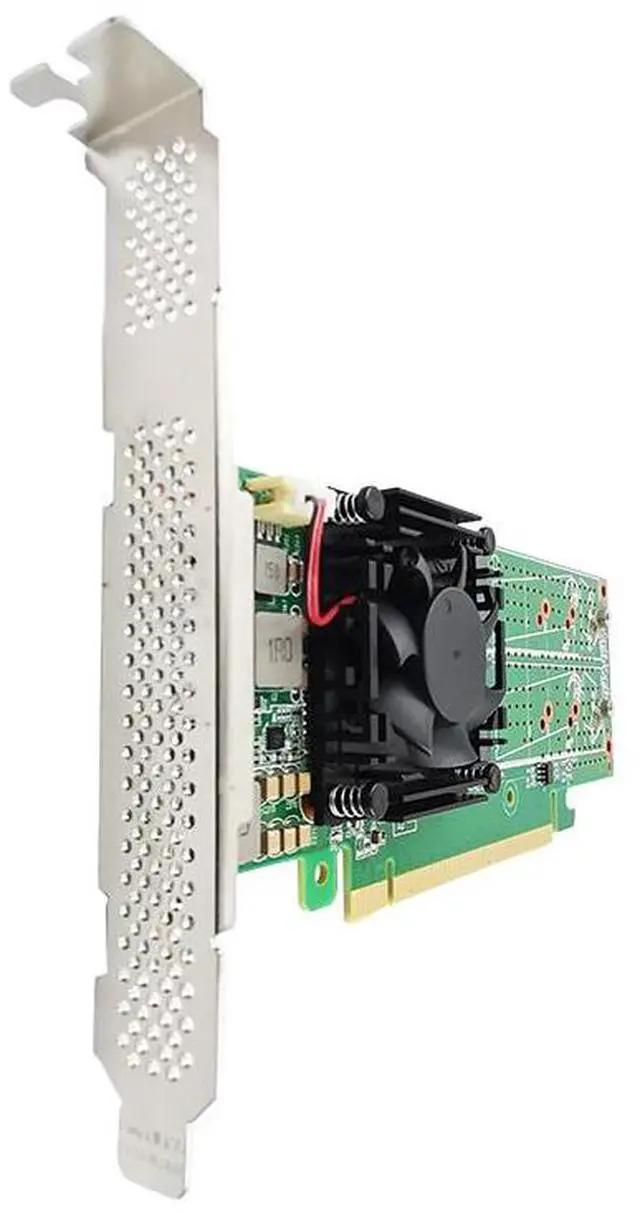

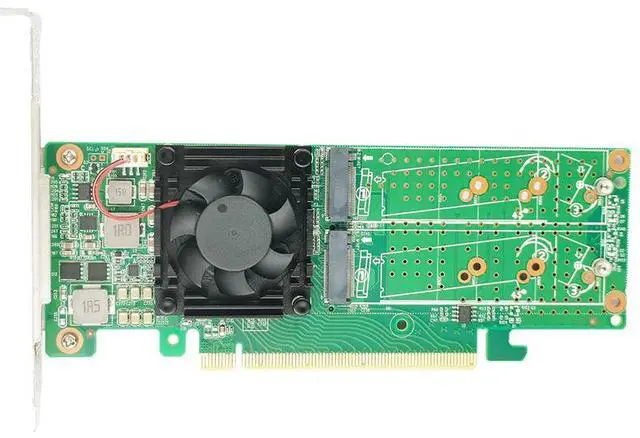

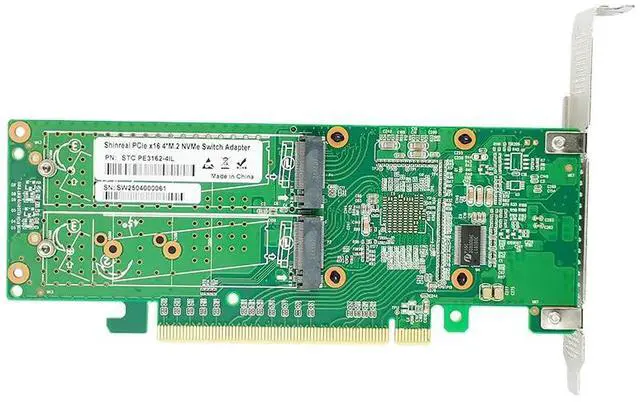

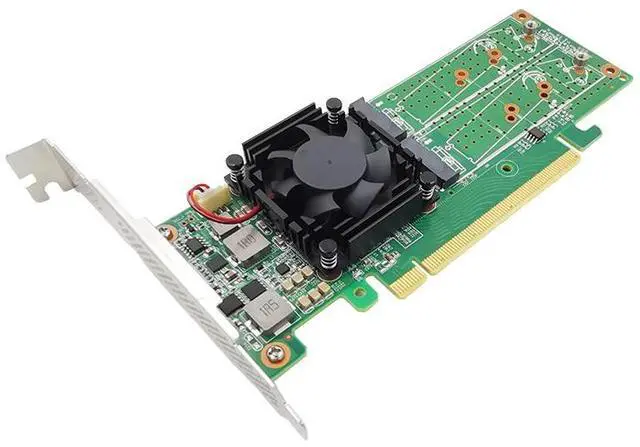

eshinreal PCIe 3.0 X16 to 4x M.2 NVMe SSD Switch Adapter support 2280 SSD-PE3162-4IL no motherboard bifurcation required
- Compliant PCIe3.0 x16
- Supports up to 4 M.2 NVMe SSDs
- Supports PCIe M.2 SSDs (NVMe) in 2242, 2260,2280mm
- No motherboard bifurcation required
+
+
Overview
Specs
Reviews
Product Description
STC PE3162-4IL NVMe Adapter is PCI Express x16 Gen3 PCIe switch Card. It expands the maximum storage of the 4 M. 2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.
Functional Characteristics
Compliant PCI Express Base Specification, r 3.0 (compatible w/ PCIe r 1.0 a/ 1.1 & 2.0 ).
Supports up to 4 M. 2 NVMe SSDs
Compliant with PCI Power Management Spec, r 1.2.
Microsoft Vista Compliant.
Supports Access Control Services.
High Performance. Non-blocking switch fabric, Full line rate on all ports.
Quality of Service. Eight traffic classes per port.
Reliability, Availability, Serviceability.
Supports PCIe M. 2 SSDs (NVMe) in 2242, 2260, 2280mm
The PCIe transfer rate up to 128Gb/s and each SSD transfer rate up to 32Gb/s.
Applications
PE3162-4IL is suitable for expanding more SSD interfaces to connect more SSDs for increased storage capacity.
Advantages
Suitable for small sized M. 2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M. 2 SSD running at the same time.
Technical Specification
HARDWARE
Model STC PE3162-4IL
Number of Device 4 internal
I/O Controller PLX PEX8747
Bus Type PCI Express 3.0
Compatible Device Type M. 2 (PCIe, M-Key, NGFF)
Interface PCI Express
CONNECTOR (S)
Device Connector 4- M. 2 (PCIe, M-Key, NGFF)
Host Bus PCI Express x16
ENVIRONMENTAL
Humidity 15% ~ 90%
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Dimension 68.90 mm x175mm
Product Weight 177g
WARRANTY INFORMATION
Warranty 2 Years
WHAT'S IN THE BOX
Included in Package 1- PCIe X16 to Quad M. 2 NVMe SSD Switch Adapter
1-Full-Height bracket (installed)
2-Low- Profile bracket
STC PE3162-4IL NVMe Adapter is PCI Express x16 Gen3 PCIe switch Card. It expands the maximum storage of the 4 M. 2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.
Functional Characteristics
Compliant PCI Express Base Specification, r 3.0 (compatible w/ PCIe r 1.0 a/ 1.1 & 2.0 ).
Supports up to 4 M. 2 NVMe SSDs
Compliant with PCI Power Management Spec, r 1.2.
Microsoft Vista Compliant.
Supports Access Control Services.
High Performance. Non-blocking switch fabric, Full line rate on all ports.
Quality of Service. Eight traffic classes per port.
Reliability, Availability, Serviceability.
Supports PCIe M. 2 SSDs (NVMe) in 2242, 2260, 2280mm
The PCIe transfer rate up to 128Gb/s and each SSD transfer rate up to 32Gb/s.
Applications
PE3162-4IL is suitable for expanding more SSD interfaces to connect more SSDs for increased storage capacity.
Advantages
Suitable for small sized M. 2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M. 2 SSD running at the same time.
Technical Specification
HARDWARE
Model STC PE3162-4IL
Number of Device 4 internal
I/O Controller PLX PEX8747
Bus Type PCI Express 3.0
Compatible Device Type M. 2 (PCIe, M-Key, NGFF)
Interface PCI Express
CONNECTOR (S)
Device Connector 4- M. 2 (PCIe, M-Key, NGFF)
Host Bus PCI Express x16
ENVIRONMENTAL
Humidity 15% ~ 90%
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Dimension 68.90 mm x175mm
Product Weight 177g
WARRANTY INFORMATION
Warranty 2 Years
WHAT'S IN THE BOX
Included in Package 1- PCIe X16 to Quad M. 2 NVMe SSD Switch Adapter
1-Full-Height bracket (installed)
2-Low- Profile bracket
