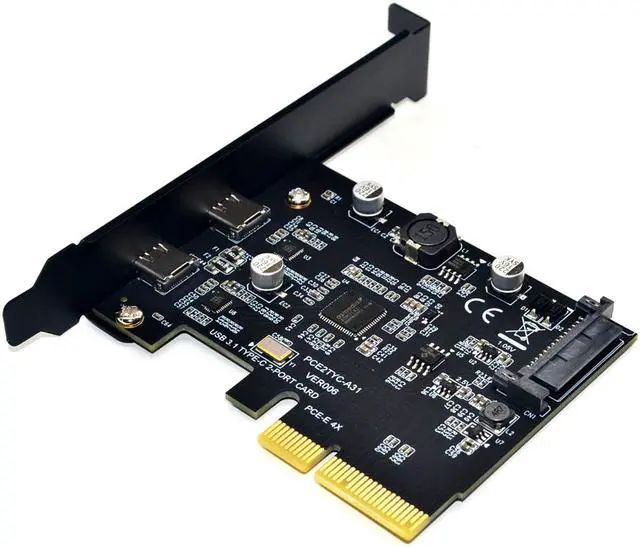

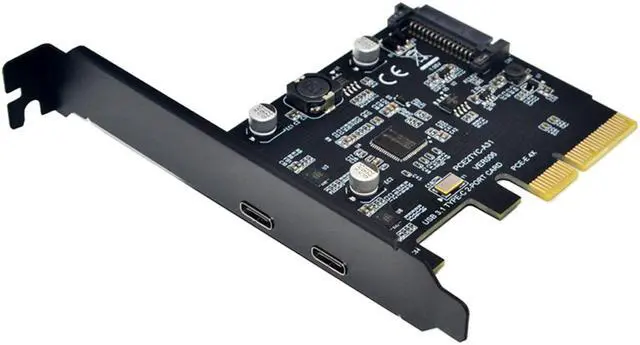

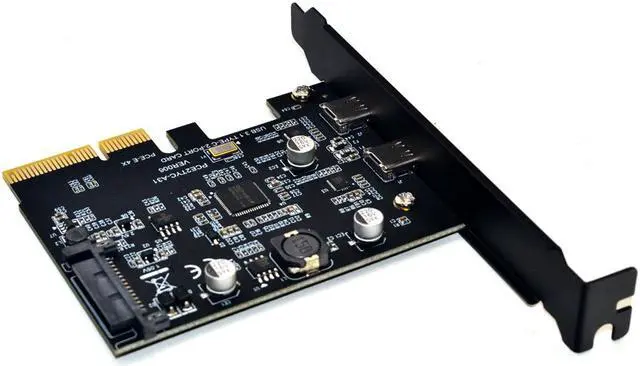

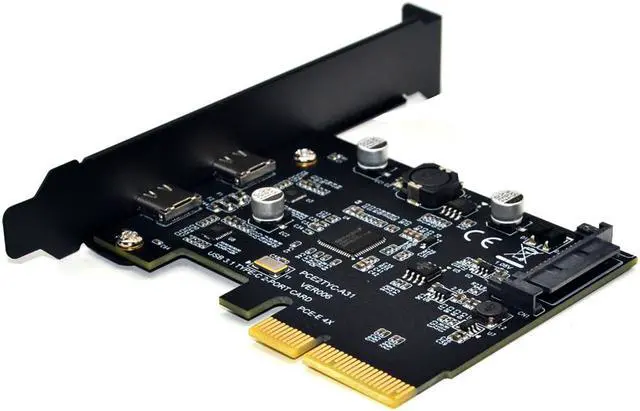

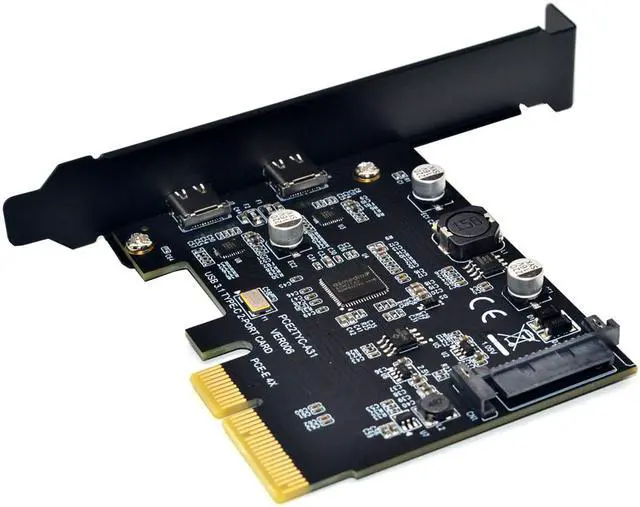

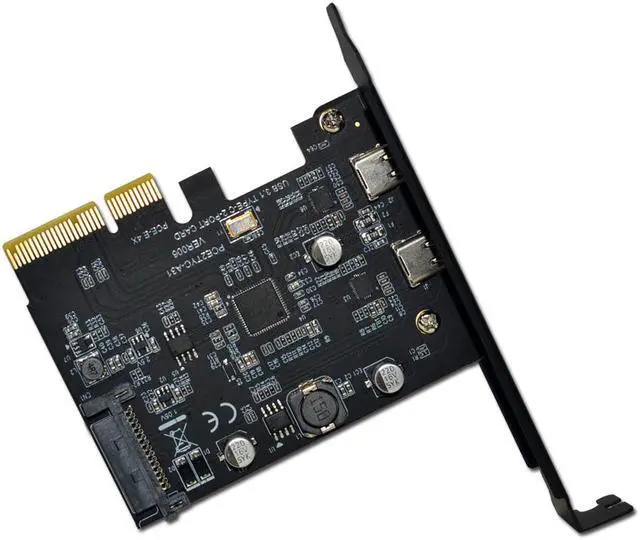

Weastlinks USB 3.1 PCIE Raiser Card Dual Reversible USB 3.1 Gen 2 Type-C Ports PCI-E PCI Express X4 SATA 15Pin Connector
- SuperSpeed USB 3.1 supports up to 10Gbps data transfer rate.
- Add two USB 3.1 Type-C (USB-C) downstream connectors for standard desktop PCs.
- The 15-pin SATA power connector supplies power to USB-C enabled devices, and supports up to 5V 900mAh output on each USB 3.1 port.
- Built-in hot swapping function allows you to replace computer system components without shutting down the system.
- Wide Compatibility.
+
+
Overview
Specs
Reviews
Features:
Note: Not compatible with macOS operating systems.
SuperSpeed USB 3.1 PCI-Express card with Dual Type-C ports offers convenient access to upgrade desktop computers or servers to support Type-C enabled devices via an available x4 or larger PCI-Express slot. With data transfer rates of up to 10Gbps, you can transfer videos, music, photos, and data files between Type-C enabled devices and your computer at blazing fast speeds.
Advanced USB 3.1 Technology
SuperSpeed USB 3.1 supports up to 10Gbps data transfer rate, twice as fast as USB 3.0, 20 times faster than USB 2.0.
Dual Reversible Type-C Ports
Add two USB 3.1 Type-C (USB-C) downstream connectors for standard desktop PCs. 2 reversible Type-C ports easily connect to 2 Type-C enabled devices simultaneously, no matter which side you plug in.
Excellent Performance
The 15-pin SATA power connector supplies power to USB-C enabled devices, and supports up to 5V 900mAh output on each USB 3.1 port.
Easy to Use
Built-in hot swapping function allows you to replace computer system components without shutting down the system.
Wide Compatibility
Work with any PCIe x4, PCIe x8 and PCIe x16 slot. Backward compatible with USB 3.0, USB 2.0 and USB 1.1 devices. Support Windows 10 / 8.1 / 8 / 7 / XP / Vista operating systems.
Material: PCB, galvanized sheet steel.
Chipset: ASM3142.
Color: Black.
Interface: 2 * USB 3.1 Type-C ports.
Data transfer rates: Up to 10 Gbps (when connecting to USB 3.1 compliant peripherals).
Backward compatible with USB 3.0, USB 2.0 and USB 1.1.
Compatible operating system: For Windows 10 / 8.1 / 8 / 7 / XP / Vista operating systems.
Compatible slot: PCIe x4, PCIe x8, PCIe x16,
Support Max. 5V 900 mAh power output to each USB 3.1 port.
Support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), and FullSpeed (12 Mbps) transaction.
Note: The actual transmission speed is limited by the settings of computers and connected devices.
Compliant with PCI Express Base 3.0 Specification.
Compliant with Universal Serial Bus 3.1 Specification.
Warranty: 12-month limited warranty.
Certification: CE, FCC, RoHS.
Packing list:
1 x Dual Port USB 3.1 PCI-Express Card
Note: Not compatible with macOS operating systems.
SuperSpeed USB 3.1 PCI-Express card with Dual Type-C ports offers convenient access to upgrade desktop computers or servers to support Type-C enabled devices via an available x4 or larger PCI-Express slot. With data transfer rates of up to 10Gbps, you can transfer videos, music, photos, and data files between Type-C enabled devices and your computer at blazing fast speeds.
Advanced USB 3.1 Technology
SuperSpeed USB 3.1 supports up to 10Gbps data transfer rate, twice as fast as USB 3.0, 20 times faster than USB 2.0.
Dual Reversible Type-C Ports
Add two USB 3.1 Type-C (USB-C) downstream connectors for standard desktop PCs. 2 reversible Type-C ports easily connect to 2 Type-C enabled devices simultaneously, no matter which side you plug in.
Excellent Performance
The 15-pin SATA power connector supplies power to USB-C enabled devices, and supports up to 5V 900mAh output on each USB 3.1 port.
Easy to Use
Built-in hot swapping function allows you to replace computer system components without shutting down the system.
Wide Compatibility
Work with any PCIe x4, PCIe x8 and PCIe x16 slot. Backward compatible with USB 3.0, USB 2.0 and USB 1.1 devices. Support Windows 10 / 8.1 / 8 / 7 / XP / Vista operating systems.
Material: PCB, galvanized sheet steel.
Chipset: ASM3142.
Color: Black.
Interface: 2 * USB 3.1 Type-C ports.
Data transfer rates: Up to 10 Gbps (when connecting to USB 3.1 compliant peripherals).
Backward compatible with USB 3.0, USB 2.0 and USB 1.1.
Compatible operating system: For Windows 10 / 8.1 / 8 / 7 / XP / Vista operating systems.
Compatible slot: PCIe x4, PCIe x8, PCIe x16,
Support Max. 5V 900 mAh power output to each USB 3.1 port.
Support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), and FullSpeed (12 Mbps) transaction.
Note: The actual transmission speed is limited by the settings of computers and connected devices.
Compliant with PCI Express Base 3.0 Specification.
Compliant with Universal Serial Bus 3.1 Specification.
Warranty: 12-month limited warranty.
Certification: CE, FCC, RoHS.
Packing list:
1 x Dual Port USB 3.1 PCI-Express Card
