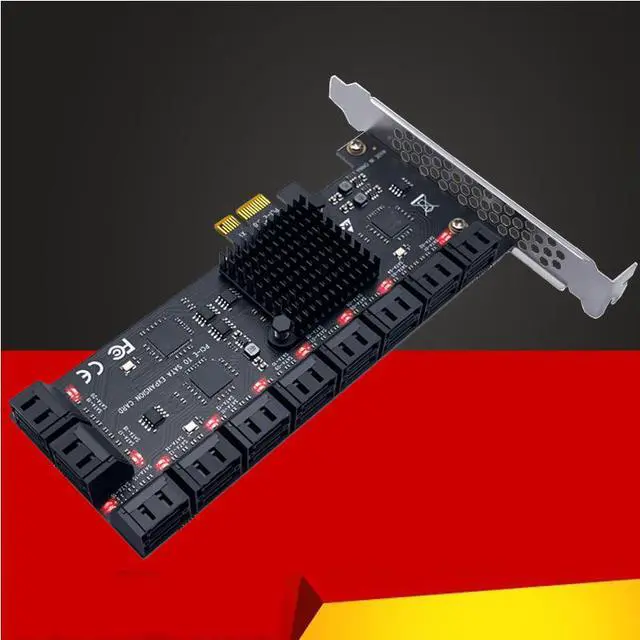

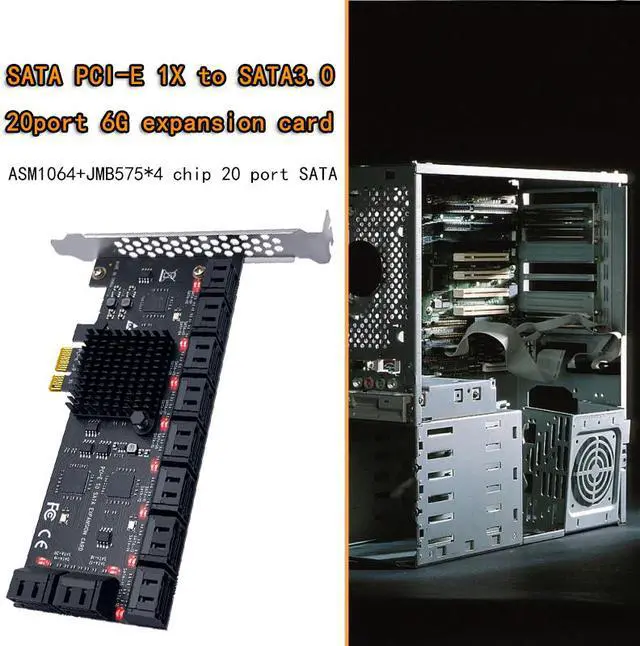

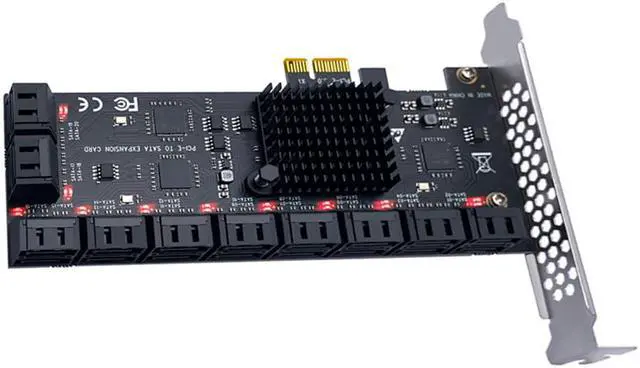

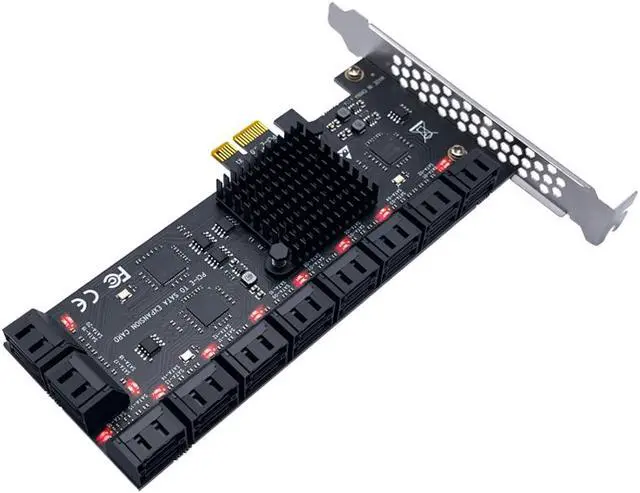

Weastlinks PCIE SATA Adapter Mining 20/16/12/10/8/6/4 Ports SATA 6Gb to PCI Express Controller Expansion Card PCIe to SATA III Converter for PC

Feature:
Reliability, availability, high compatibility.
Can realize fast data transmission, up to 6gbps transmission mechanism, save more time.
There are 20 standard SATA3.0 interfaces in the rear, which can be connected to multiple devices at the same time.
It can be used as system disk, support high-capacity hard disk, and connect SSD optical drive.

Specification:
Product name: PCI-E to SATA3.0 expansion card.
Transmission rate: 6Gbps.
Bus type: PCI-E X1 can be compatible with PCI-E X4 X8 X16 and other interfaces at the same time.
Bus speed: PCI-E3.0.
Interface: standard SATA3.0.
Number of interfaces: 20/16/12/10/8/6/4.
Installation conditions: There must be one or more free PCI-E slots on the motherboard.
Working temperature: -10~60 degrees.
Storage temperature: -20~40 degrees.
Applicable fields: desktops, workstations, servers, industrial equipment
Driver support: for Windows/Synology/MAC/NAS/LINUX, etc.
Product size: 153*120*72mm/6*4.72*2.84in
Product weight: 85g
Packing size: 184*150*30mm/7.2*5.9*1.2in
Package weight: 145g

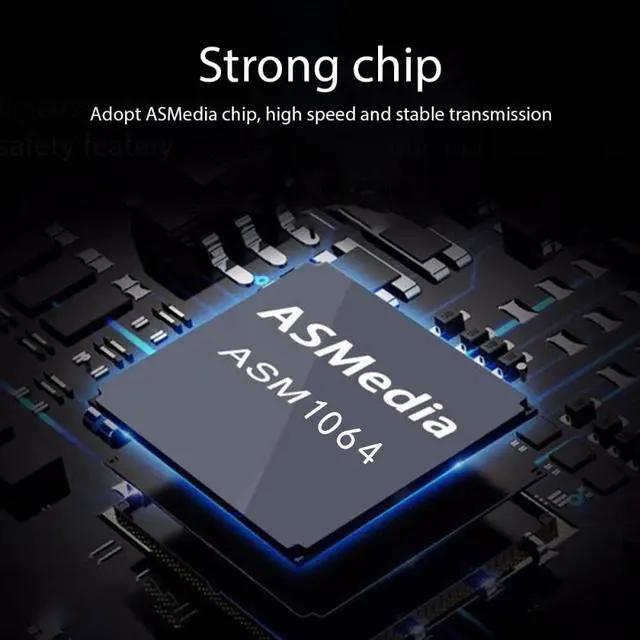

Main Chips:ASMedia1064 + JMB575

Note:

6 Port and 10 Port (Only Support Windows System)(Need to install driver)(No driver is installed and only 2 ports are supported).

Packing List:

1 x PCIE SATA3.0 Expansion Card(20/16/12/10/8/6/4)
