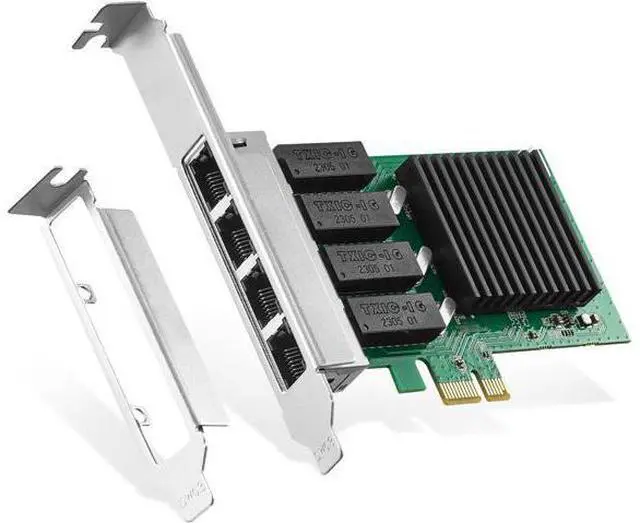

4 Port Giga-bit PCIe Network Adapter, Realtek RT8111H Controller 1000/100Mbps Binardat Ethernet LAN NIC Card for Windows/Linux/Mac

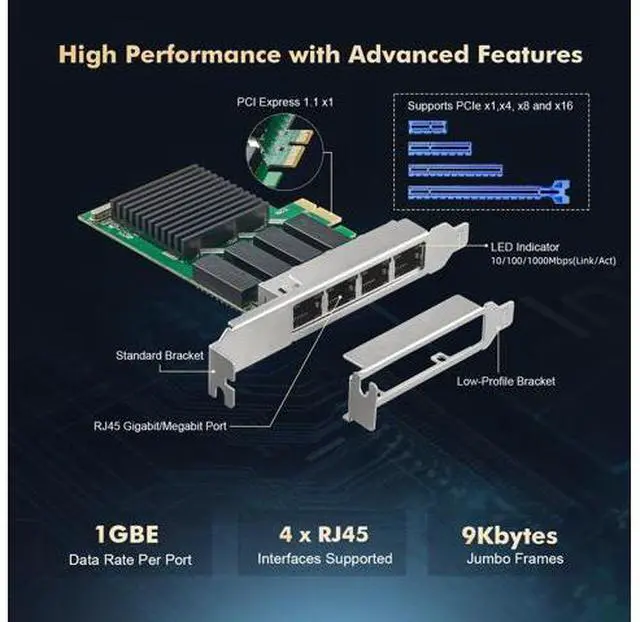

- Quads-Port Giga-bit The network card has 4 port giga-bit ethernet RJ45 interfaces, with Realtek RT8111H chip, compatibe 100M/10M auto-negotiation, support standard Cat5e or above UTP at distances up to 100m (328 feet)

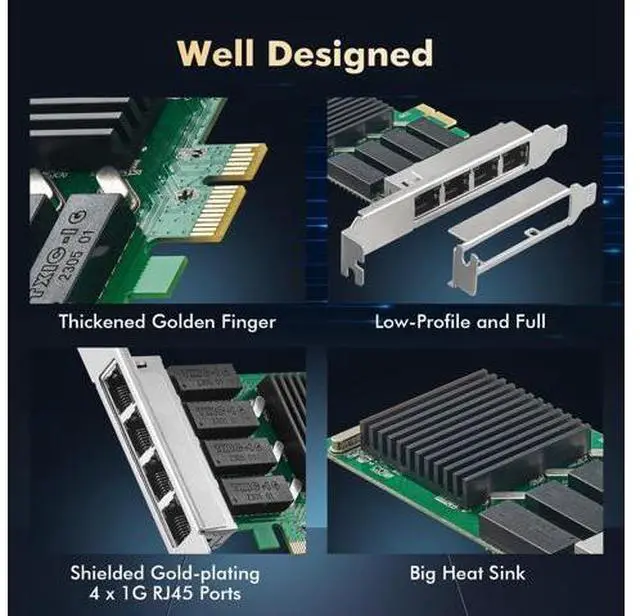

- PCIe SlotCompatible for PCIe slot X1,X4,X8,X16, default with standard bracket, also include low profilce bracket, support multiple installation such as PC, server, client, workstation, NAS, etc. **not for PCI slot**
- Multiple OSSupport Windows10/8.1/8/7/XP/Server 2012,2008, Linux, Mac OS, freely driver download, CD-ROM, manual, Driver link on the bracket, Binardat/In-tel official website can download the driver easily.
- Network FeatureSupport Auto MDIX, IEEE 802.1Q VLAN tagging, Full Duplex flow control(IEEE 802.3x), 9Kbytes Jumbo frame, 2.5Gbps PCI Express Bus
- Easy to UseSelect the appropriate brackets according to the chassis size, insert into the PCIe slots, install the driver, connect to the network, the LEDs show the link status and rate. Any questions, please cont
+
+
Overview
Specs
Reviews
Product
Environment Operating Temperature: 0 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -10-70
Relative Humidity: 5%-90%(non-condensing)
Specifications

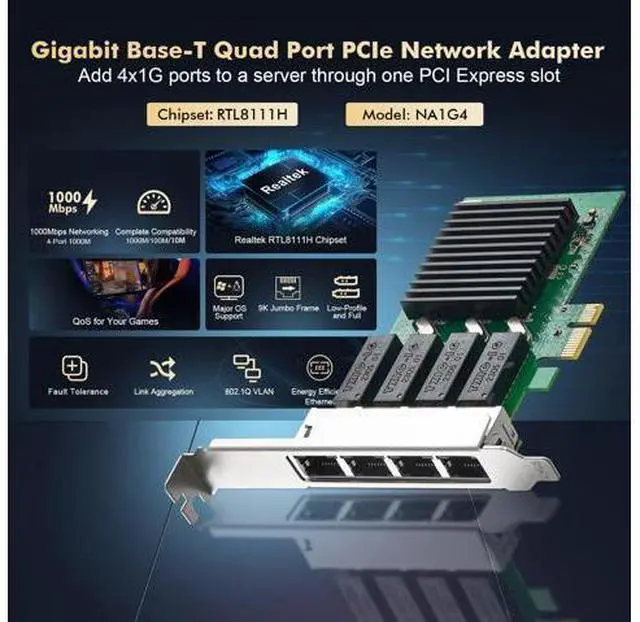

Product Name Giga-bit Base-T 4-Port PCIe Network Adapter (NA1G4) Chipset ASM1184E+RTL8111H*4 Port 4*1G RJ45 Standard IEEE 802.3IEEE 802.3 uIEEE 802.3 xIEEE 802.3 ab Network media 10Base-T, cat3 or above UTP, 1000Base-Tx, cat5 UTP Data rate 10/100/1000Mbps Interface PCI Express 1x slot LED Indicator 10/100/1000Mbps(Link/Act) PCB Dimension 111* 68.5 * 1.57 mm Support OS Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server 2012, 2008 R2, 2003(32/64) Mac OS 10. x (In-tel based, tested up to 10.9 ) Linux 2.4. x and later (Tested up to 3.5 )Environment Operating Temperature: 0 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -10-70
Relative Humidity: 5%-90%(non-condensing)
