Digital Temperature Controller, Thermostat Controller with Heating Cooling Mode, Temperature Controlled Outlet Plug Heating Cooling Control (110-220v)
- A variety of fields use, convenient and practical settings, is your side temperature control housekeeper.

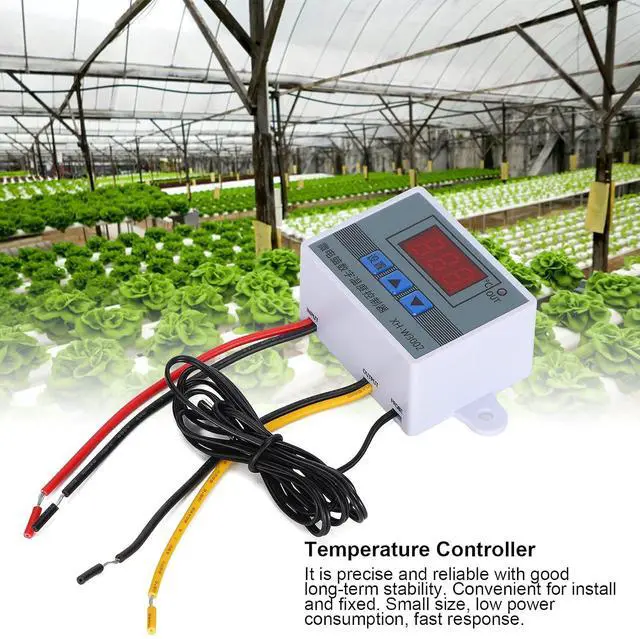

- It is precise and with good longterm stability. Convenient for install and fixed. Small size, low power consumption, fast response.
- Easy , to set start temperature, stop temperature, corrected temperature connector and so on.

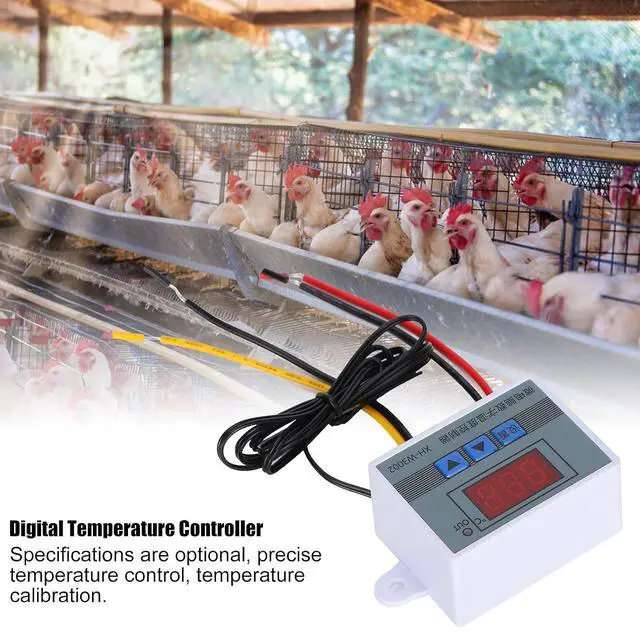

- Suitable for hatching, breeding, air and water temperature control and other related temperature detection and control.
- Specifications are optional, precise temperature control, temperature calibration.
+
+
Overview
Specs
Reviews
Spec:
ItemType: Digital Temperature
Controller Material: Plastic
Weight: Approx. 51g / 1.8 oz
Operating Voltage
Accuracy Level: 0.1 Temperature
Measurement Range: -50-110 ()
Temperature Measurement Accuracy: -15-65 ()
Humidity Measurement Accuracy: 1 (RH)
Temperature Measurement Error: ±1 ()
Applicable Environment: -15-55 / 20%-85%RH
Product Embedded Hole Size: 73mm / 2.9 in, Hole Diameter (4mm)
How to use:

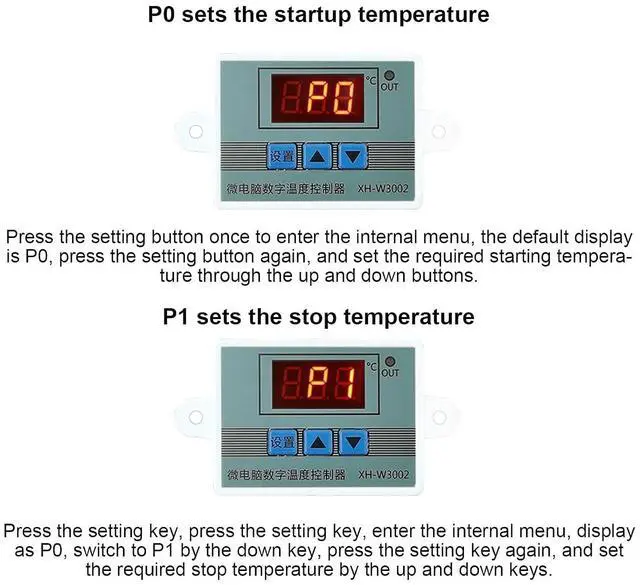

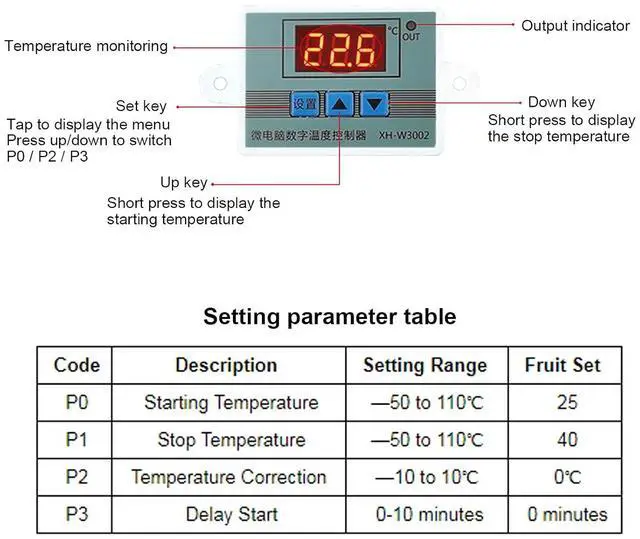

1. Press the setting button once to enter the internal menu, the default display is P0, press the setting button again, and set the required starting temperature through the up and down buttons.
2. Press the setting key once to enter the internal menu, the display is P0, switch to P1 through the up and down keys, press the setting key again, and set the required stop temperature through the up and down keys.

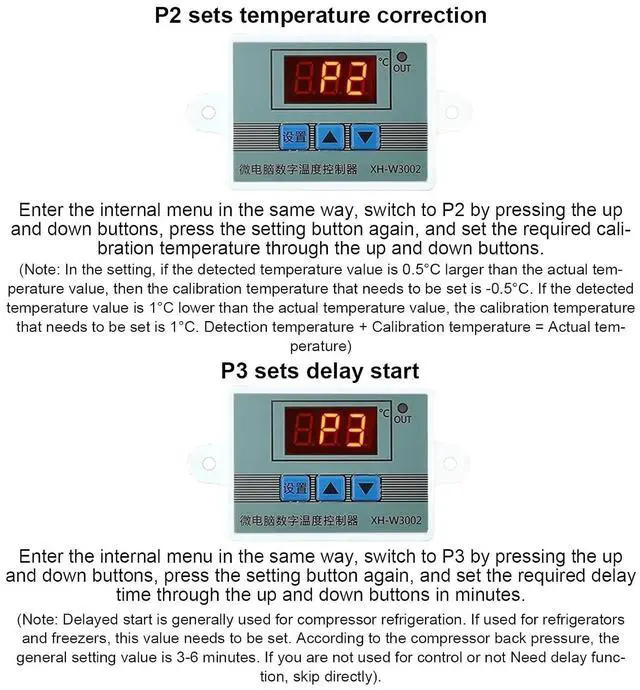

3. Enter the internal menu in the same way, switch to P2 through the up and down buttons, press the setting button again, and set the required calibration temperature through the up and down buttons.
(Note: In the setting, if the detected temperature value is 0.5 °C larger than the actual temperature value, then the calibration temperature that needs to be set is - 0.5 °C. If the detected value is 1°C lower than the actual temperature value, the calibration temperature that needs to be set is 1°C. Detection temperature + Correction temperature = Actual temperature. )
4. Enter the internal menu in the same way, switch to P3 by pressing the up and down buttons, press the setting button again, and set the required delay time through the up and down buttons in minutes.
(Note: Delayed start is generally used for compressor refrigeration. If it is used for refrigerators and freezers, this value needs to be set. According to the compressor back pressure, the general setting value is 3-6 minutes.
ItemType: Digital Temperature
Controller Material: Plastic
Weight: Approx. 51g / 1.8 oz
Operating Voltage
Specifications

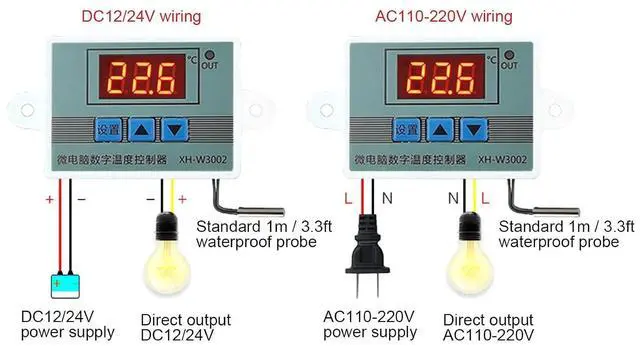

: 12V, 24V, 110-220VAccuracy Level: 0.1 Temperature
Measurement Range: -50-110 ()
Temperature Measurement Accuracy: -15-65 ()
Humidity Measurement Accuracy: 1 (RH)
Temperature Measurement Error: ±1 ()
Applicable Environment: -15-55 / 20%-85%RH
Product Embedded Hole Size: 73mm / 2.9 in, Hole Diameter (4mm)
How to use:
1. Press the setting button once to enter the internal menu, the default display is P0, press the setting button again, and set the required starting temperature through the up and down buttons.
2. Press the setting key once to enter the internal menu, the display is P0, switch to P1 through the up and down keys, press the setting key again, and set the required stop temperature through the up and down keys.
3. Enter the internal menu in the same way, switch to P2 through the up and down buttons, press the setting button again, and set the required calibration temperature through the up and down buttons.
(Note: In the setting, if the detected temperature value is 0.5 °C larger than the actual temperature value, then the calibration temperature that needs to be set is - 0.5 °C. If the detected value is 1°C lower than the actual temperature value, the calibration temperature that needs to be set is 1°C. Detection temperature + Correction temperature = Actual temperature. )
4. Enter the internal menu in the same way, switch to P3 by pressing the up and down buttons, press the setting button again, and set the required delay time through the up and down buttons in minutes.
(Note: Delayed start is generally used for compressor refrigeration. If it is used for refrigerators and freezers, this value needs to be set. According to the compressor back pressure, the general setting value is 3-6 minutes.
