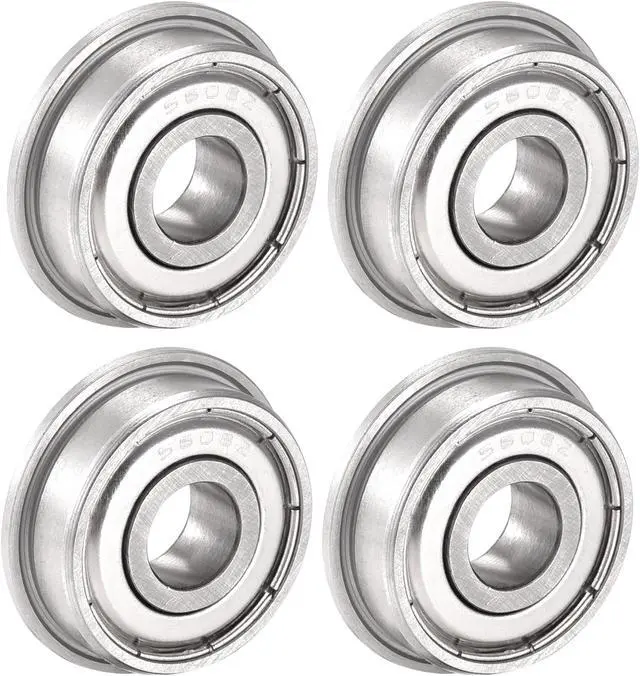

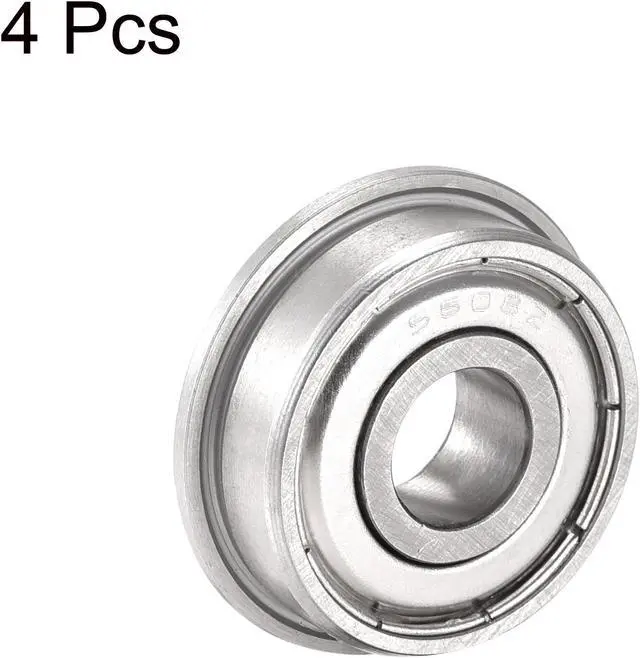

SF608ZZ Flanged Ball Bearing 8x22x7mm Double Shielded Stainless Steel Bearings 4pcs

NotePlease refer to the picture and select the right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.KEY_TAB Selection GuideShields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Description

Single-row, pre-lubricated, normal accuracy.

Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial loads.

With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.

Stainless steel bearing features stronger rust and corrosion resistance ability.

Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment, and so on

Specification

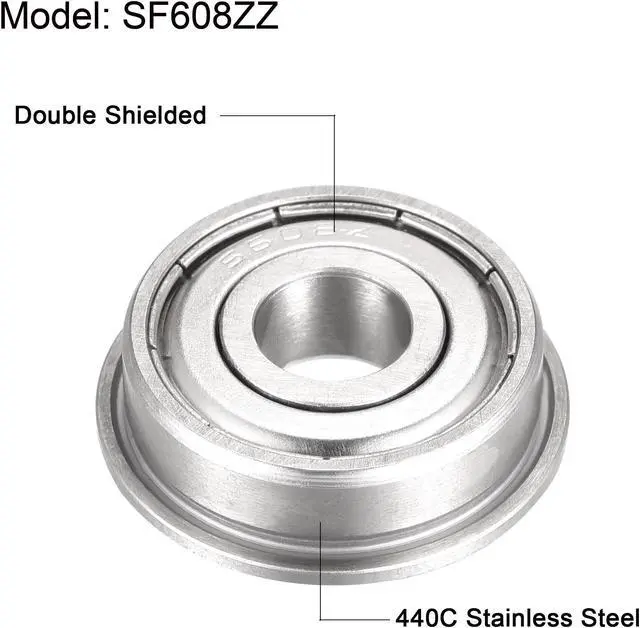

• Shield Type: Double Shielded
• Inner Race/Outer Race Material: 440C Stainless Steel
• Cage Material: Stamping Steel

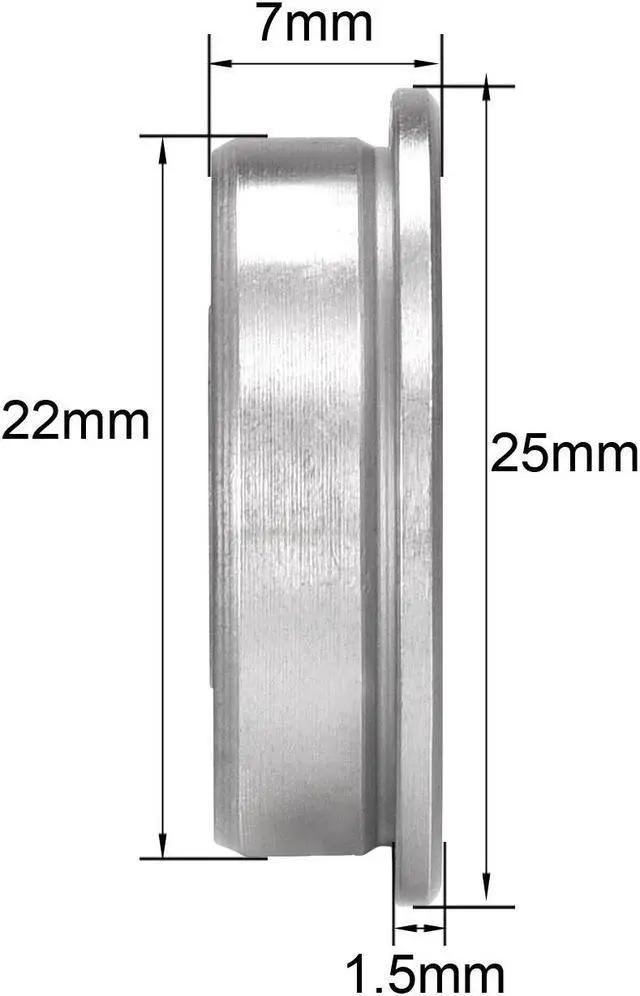

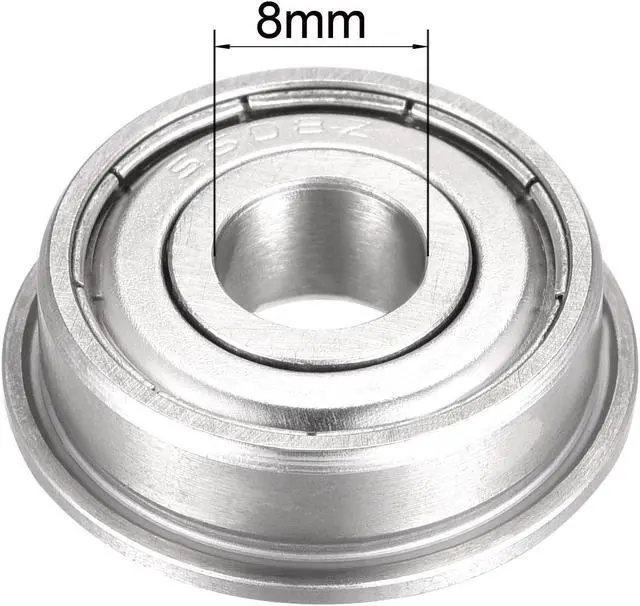

• Inner Diameter (d): 8mm
• Outer Diameter (D): 22mm
• Thickness (B): 7mm
• Flange Dia.: 25mm
• Flange Thickness: 1.5mm
• Dynamic Load Rating (Cr): 3.293 kN
• Static Load Rating (Cor): 1.379 kN
• Accuracy Class: P0 (ABEC1)
