608ZZ Deep Groove Ball Bearings 8mm x 22mm x 7mm Double Shielded Chrome Steel Z2 5pcs

NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
KEY_TAB
Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

KEY_TAB
Selecting Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
KEY_TAB
Specification:

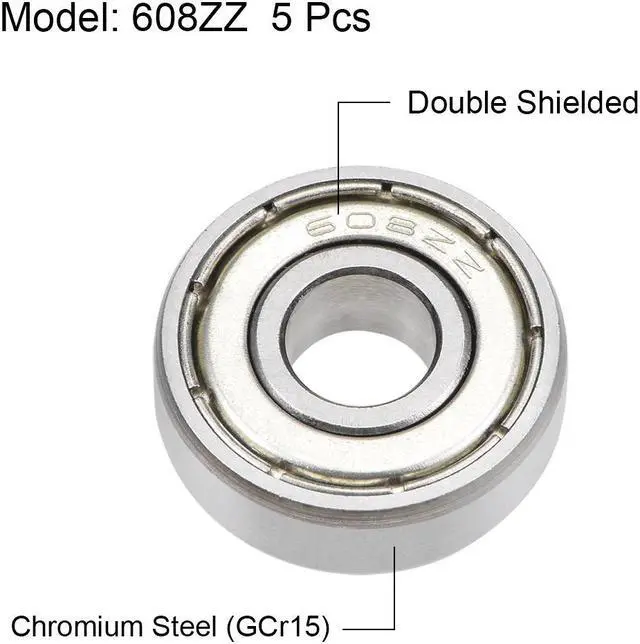

Model:608ZZ
Seal Type: Double Shielded
Inner Race/Outer Race Material: Chromium Steel (GCr15)
Cage Material: Stamping Steel

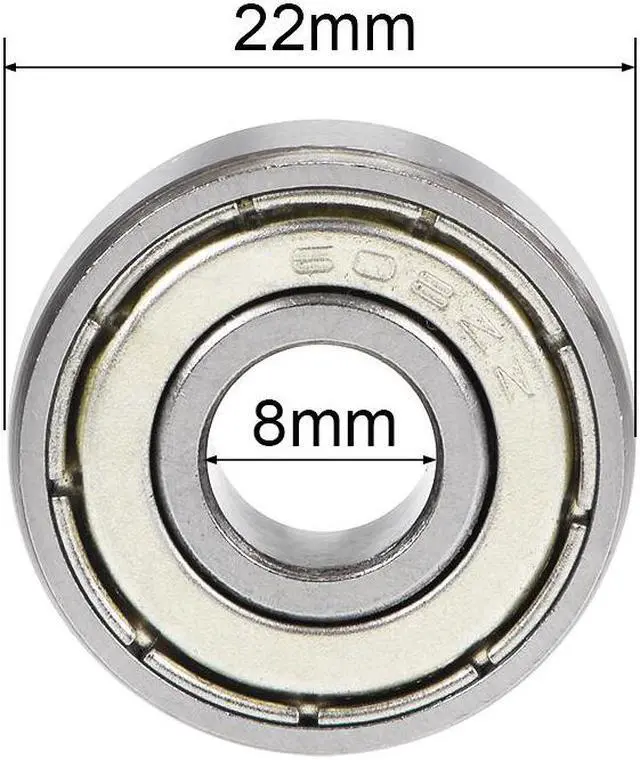

Inner Diameter (d): 8mm
Outer Diameter (D): 22mm

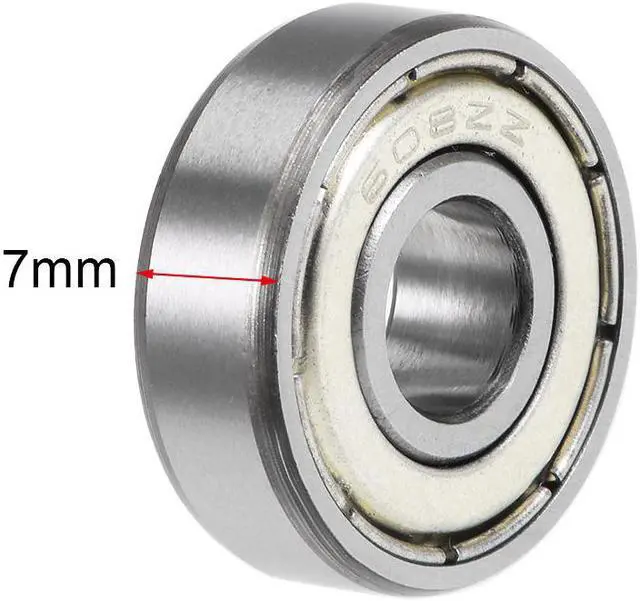

Thickness (B): 7mm
Dynamic Load Rating (Cr): 3.3kN
Static Load Rating (Cor): 1.35kN
Accuracy Class: P0 (ABEC1)
Noise Level: Z2
Number of Pack: 5pcs
