AXK1730 Thrust Needle Roller Bearings with Washers 17mm Bore 30mm OD 2mm Width 2pcs
- [MODLE] - Bearing Model: AXK1730 (I.D.=17mm, O.D.=30mm, Thickness=2mm); Washer Model: AS1730
- [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
- [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
- [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
- [CAPABILITY] - 38.6kN Static Load Capacity, 11.8kN Dynamic Load Capacity, 10000RPM Maximum Rotational Speed
+
+
Overview
Specs
Reviews
Description:
- Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
- These bearings to accommodate heavy axial loads and peak loads due toKEY_TAB small diameter deviation of the rollers within one assembly.
- AXKKEY_TAB Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
- Made of hardenedKEY_TAB spring steel,KEY_TAB both faces of the washers are polished and can be used as raceways.
- Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
Specification:
- Bearing Modle: AXK1730
- Bearing Washer Modle: AS1730
- Needle Roller Meterial: Chromium Steel (GCr15)
- Cage Meterial: ST13 Steel
- Bearing Washer Meterial: 65Mn Spring Steel

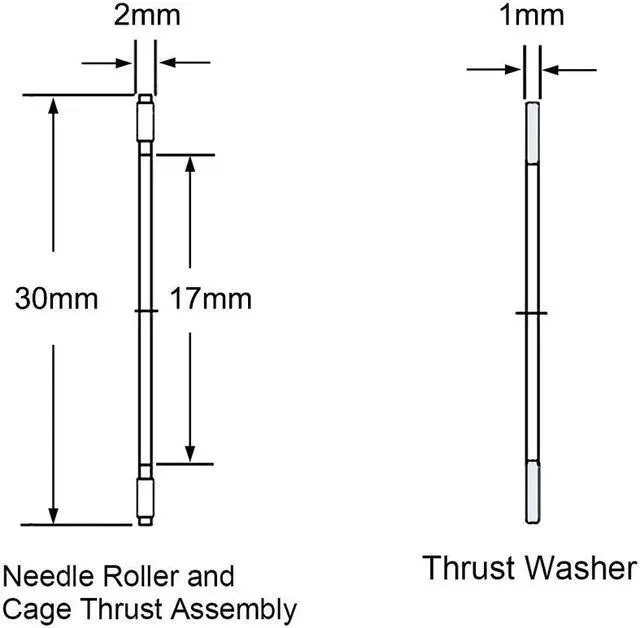

- Bore Diameter (d): 17mm
- Outside Diameter (D): 30mm
- Bearing Thickness (T1): 2mm
- Washer Thickness (T2): 1mm (Approx.)
- Dynamic Load Capacity (Cr): 11.8kN
- Static Load Capacity (Cor): 38.6kN
- Limiting Speed (Oil): 10000RPM
Package Contents:

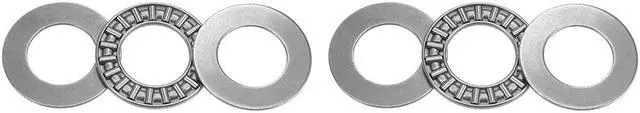

- 2 x Bearings
- 4 x Bearing Washers
