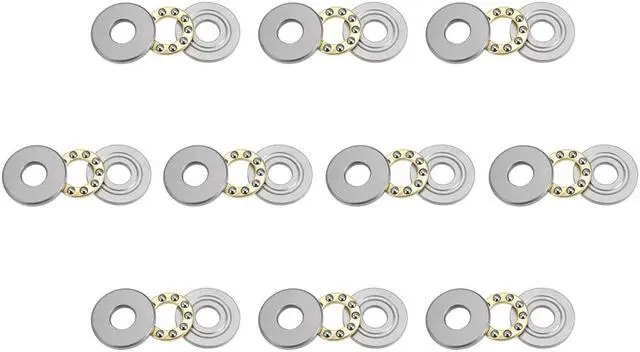

F8-22M Miniature Thrust Ball Bearings 8mm x 22mm x 7mm Chrome Steel with Washers 10 Pcs

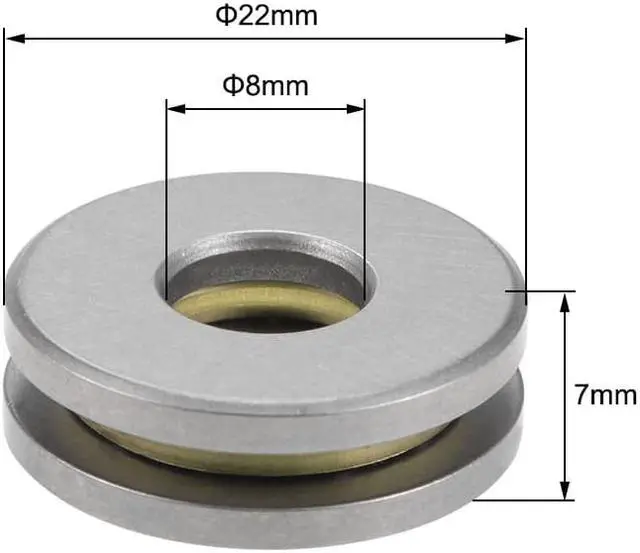

- Model: F8-22M. Size: 8mm Inner Diameter 22mm Outside Diameter 7mm Thickness
+
+
Overview
Specs
Reviews
Description:
- The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.
- Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
- They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
- Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.
- Model: F8-22M
- Shaft/Housing Washer Material: Chromium Steel (GCr15)KEY_TAB
- Bearing Ball Meterial: Chromium Steel (GCr15)
- Cage Material: Stamping Steel
- Inner Diameter (d): 8mm
- Outside Diameter (OD): 22mm
- Thickness (B): 7mm
- Dynamic Load Rating (Cr): 3356N
- Static Load Rating (Cor): 2999N
- Limiting Speed (Grease): 2500rpm
- Limiting Speed (Oil): 4500rpm
- Accuracy Class: P0 (ABEC-1)
- Noise Level: Z1
- Number of Pack: 10 Pcs
