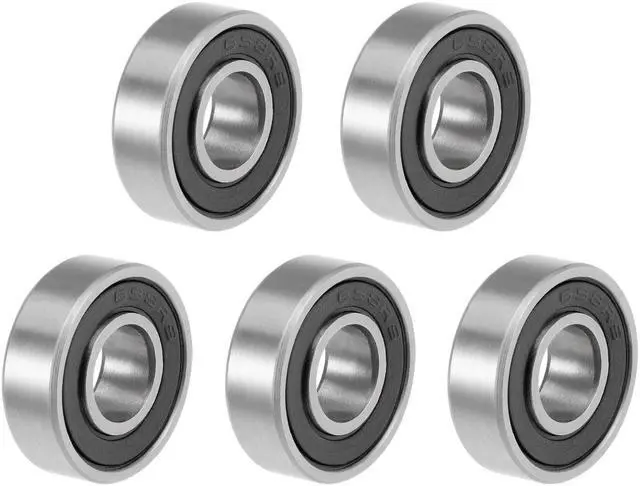

698-2RS Deep Groove Ball Bearings Z2 8mm X 19mm X 6mm Double Sealed Carbon Steel 5pcs

NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

KEY_TAB

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

KEY_TAB

Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

KEY_TAB

Specification:

Model: 698-2RS

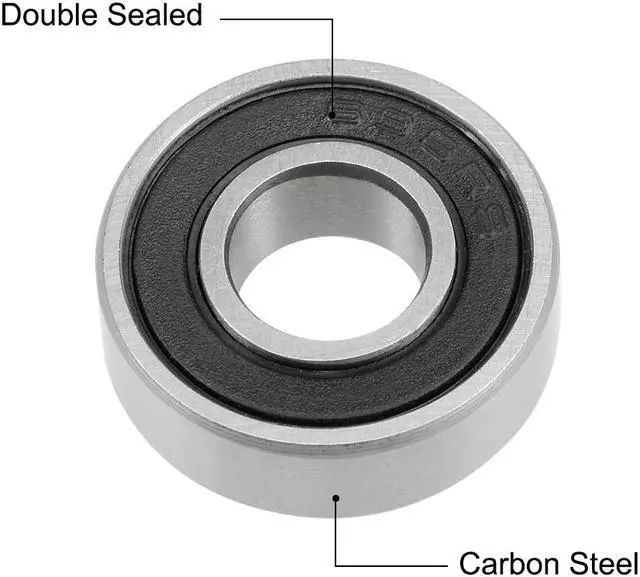

Seal Type: DoubleKEY_TAB Sealed

Inner Race/Outer Race Material: Carbon Steel

Cage Material: Stamping Steel

Inner Diameter (d): 8mm

Outer Diameter (D): 36mm

Thickness (B): 7mm

Dynamic Load Rating (Cr): 1902N

Static Load Rating (Cor): 734N

Accuracy Class: P0 (ABEC-1)

Noise Level: Z2

Number of Pack: 5 Pcs
