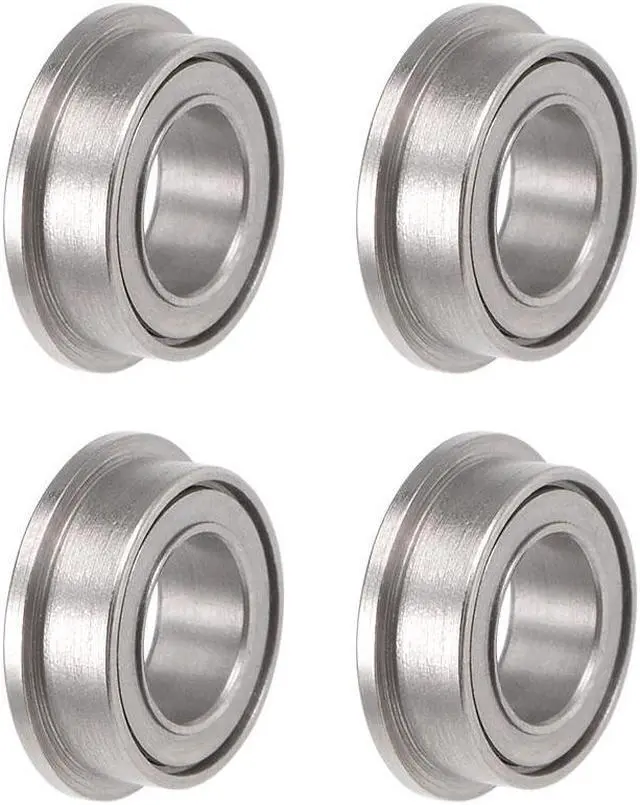

MF74ZZ Flange Ball Bearing 4x7x2.5mm Shielded Chrome Bearings 4pcs
- [Size] - MF74ZZ ABEC1 bearing (I.D.=4mm, O.D.=7mm, Thickness=2.5mm, Flange Dia: 8mm).
- [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
- [Load & Speed] - Dynamic load rating of 264N and static load rating of 92N. The limiting speed is 60000 RPM under grease lubricating.
- [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
- [Application] - Commonly used for glider/rocker arms, wheels of the cart, lawnmowers, printers, pumps, motors, gearboxes, reducer, textile machinery, electronic equipment, and more.
+
+
Overview
Specs
Reviews
Note
Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.
KEY_TAB
KEY_TAB
Description:
- Single-row, pre-lubricated, normal accuracy.
- Deep Groove Ball Bearings are one of the most widely used rolling bearings.
- With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
- Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
- Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
KEY_TAB
KEY_TAB
Selection Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.
KEY_TAB
KEY_TAB
Specification:
Model: MF74ZZ
Shielded Type: Double Shielded
Inner Race/Outer Race Material: Chrome Steel (GCr15)
Cage Material: Stamping Steel

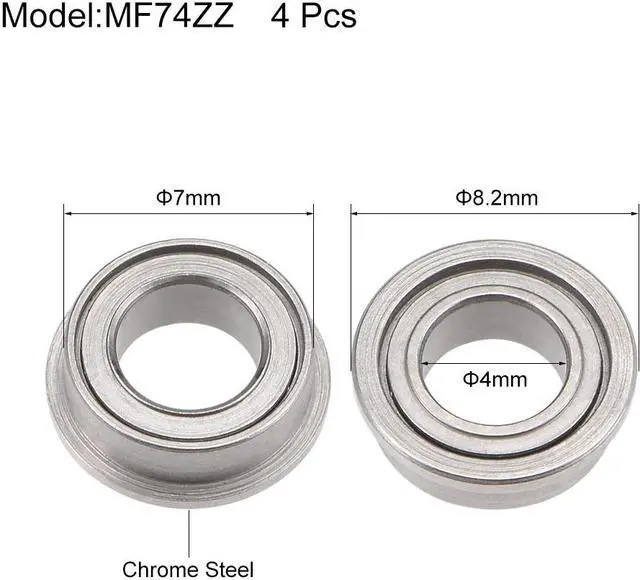

Inner Diameter (d): 4mm
Outer Diameter (D): 7mm

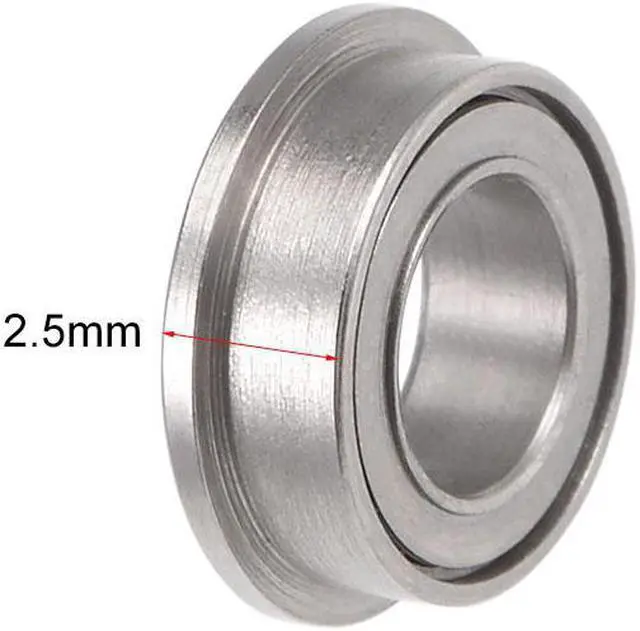

Thickness (B): 2.5mm
Flange Dia.: 8mm
Flange Thickness: 0.6mm
Dynamic Load Rating (Cr): 0.31kN
Static Load Rating (Cor): 0.115kN
Accuracy Class: P0 (ABEC1)
Noise Level: Z1
Number of Pack: 4 Pcs
