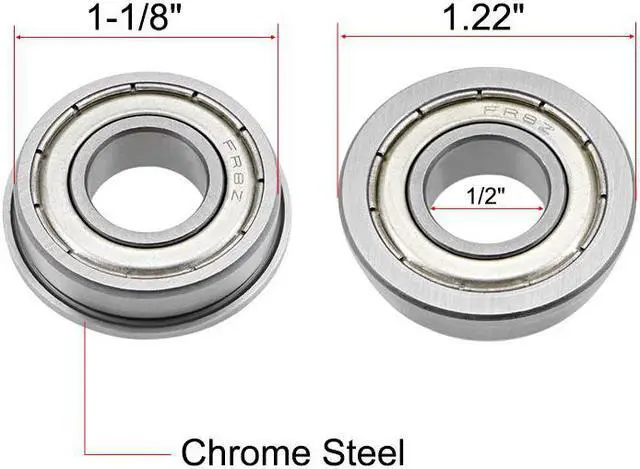

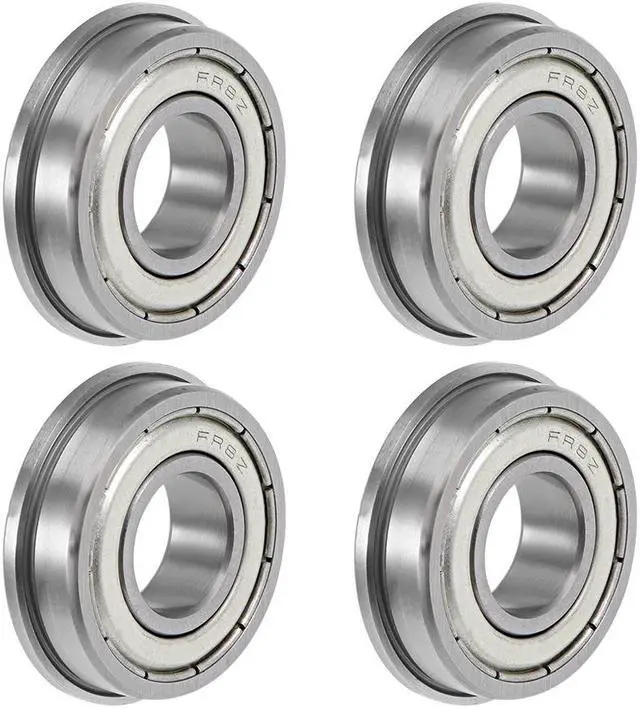

FR8ZZ Flange Ball Bearing, 1/2"x1-1/8"x5/16" Shielded Chrome Bearing 4pcs

NOTE

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

KEY_TAB

KEY_TAB

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

KEY_TAB

KEY_TAB

Specification:

Model: FR8ZZ

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 1/2" /12.7mm

Outer Diameter (D): 1-1/8" /28.575mm

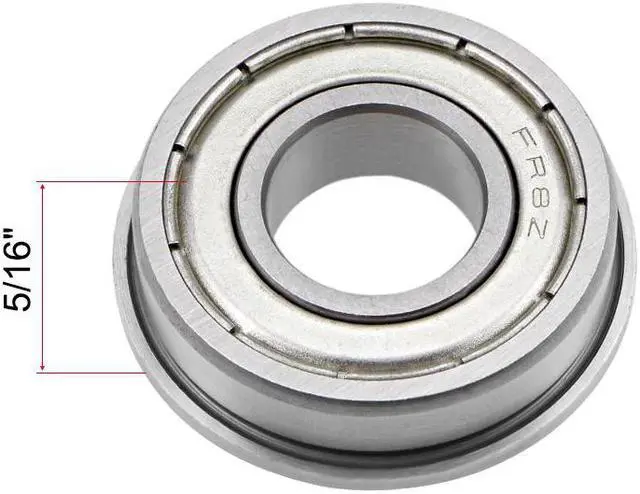

Thickness (B): 5/16" /7.938mm

Flange Dia.: 1.224" /31.1mm

Flange Thickness: 0.62" /1.575mm

Dynamic Load Rating (Cr): 2.108kN

Static Load Rating (Cor): 2.415kN

Accuracy Class: P6 (ABEC-3)

Noise Level: Z1

Number of Pack: 4 Pcs
