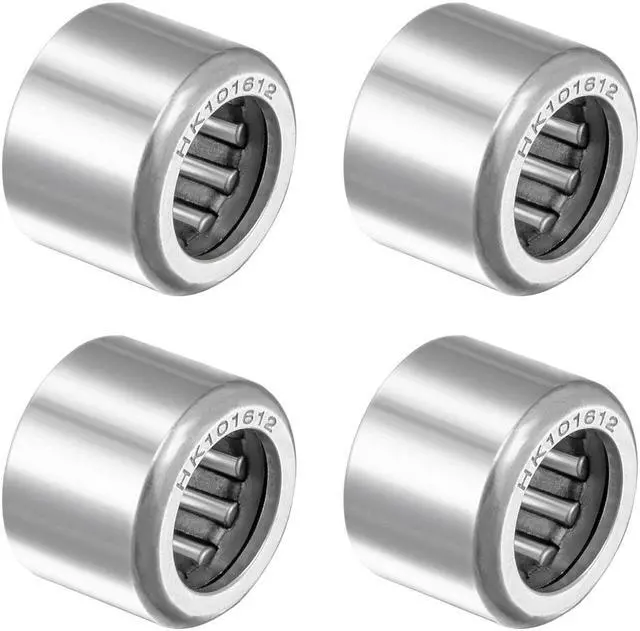

HK101612 Drawn Cup Needle Roller Bearings, Open End, 10mm Bore, 16mm OD, 12mm Width 7800N Static Load 6700N Dynamic Load 19000rpm Limiting Speed 4pcs

Specification:

Model: HK101612

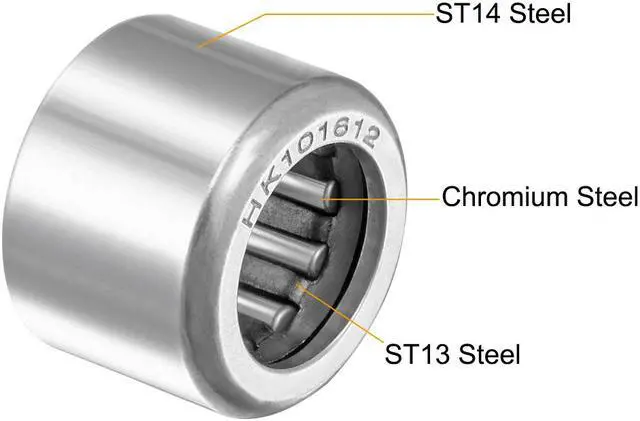

Drawn Cup Material: ST14 Steel

Cage Material: ST13 Steel

Needle Roller Material: Chromium Steel (GCr15)

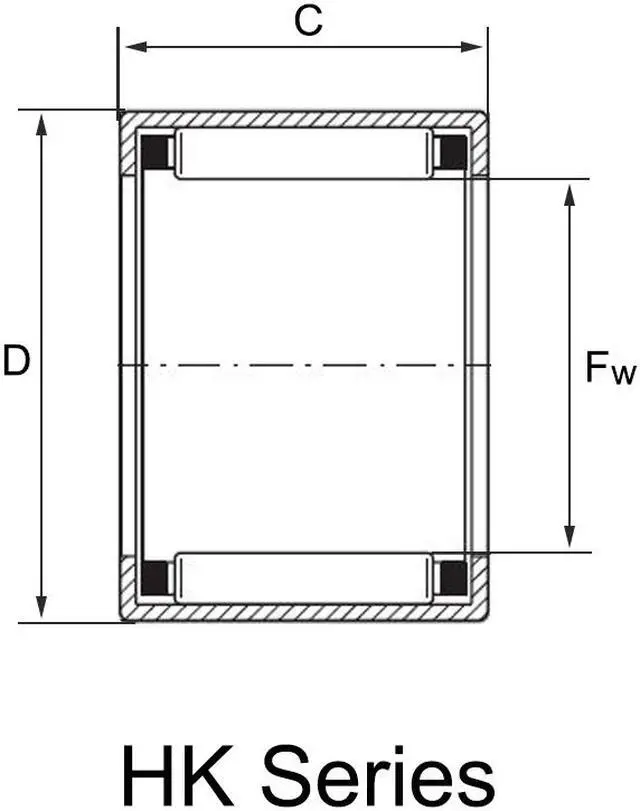

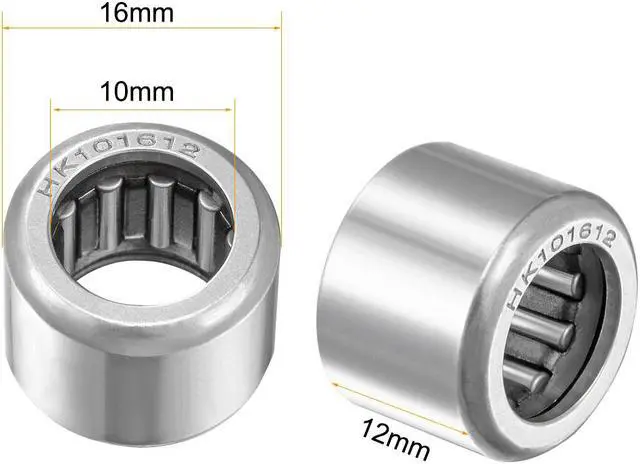

Bore Diameter (Fw): 10mm

Outside Diameter (D): 16mm

Width: 12mm

Static Load Capacity (Cor): 7800N

Dynamic Load Capacity (Cr): 6700N

Maximum Rotational Speed (Oil): 19000rpm

Number of Pack: 4 Pcs

Description:

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.

-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.

-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.

-For various applications such as automotive and truck transmissions, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture.
