LM12749/LM12710 Tapered Roller Bearing Cone and Cup Set 0.8656" Bore 1.781" O.D. 0.61" Width 2pcs

Description:

• Single Row Tapered Roller Bearings are designed to accommodate combined loads.
• These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller.
• The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
• The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
• This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems.

KEY_TAB

KEY_TAB

Specification:

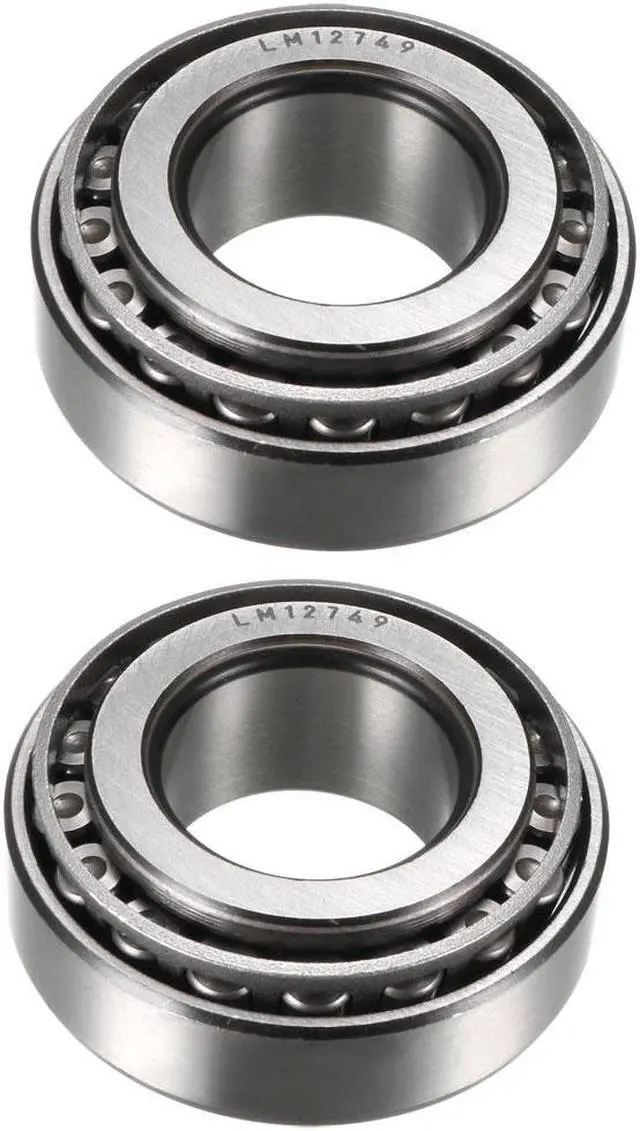

Cone Model: LM12749

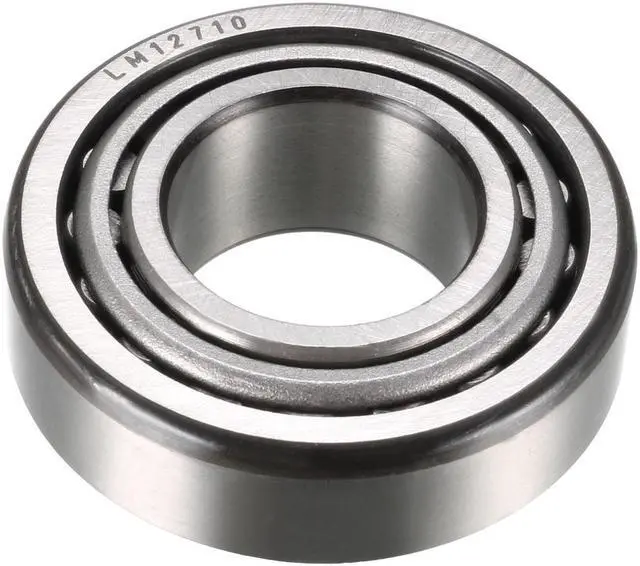

Cup Model: LM12710

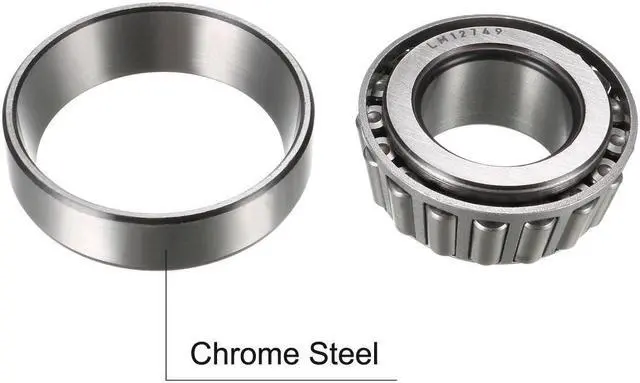

Material: Chrome Steel

Bore Diameter: 21.986mm / 0.8656"

Outside Diameter: 45.237mm / 1.781"

Total Thickness: 15.494mm / 0.61"

Dynamic Load Rating (Cr): 38600N

Static Load Rating (Cor): 35300N
