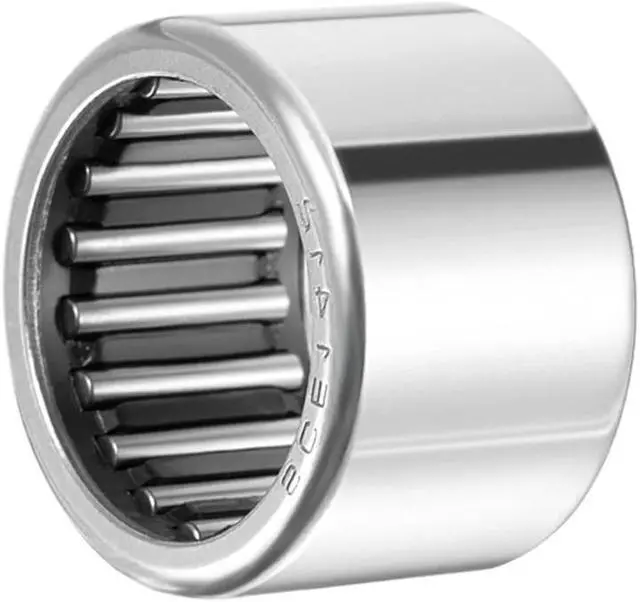

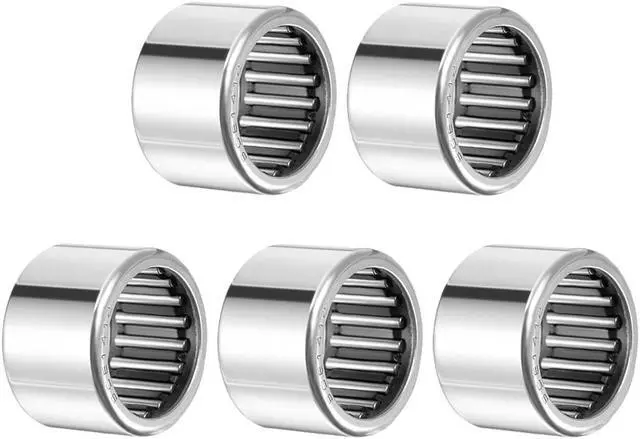

SCE1412 Needle Roller Bearings, Drawn Cup Open End, 7/8" Bore 1-1/8" OD 3/4" Width 5pcs

Description:

• Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
• These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
• Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
• For various applications such as automotive and truck transmissions, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
• NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture.

KEY_TAB

Specification:

Model: SCE1412

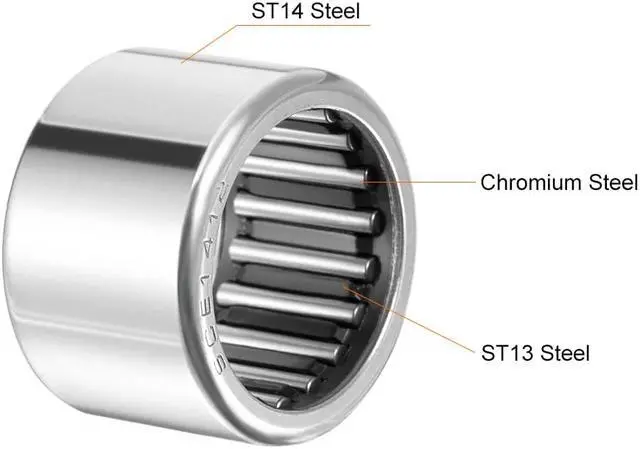

Drawn Cup Material: ST14 Steel

Cage Material: ST13 Steel

Needle Roller Material: Chromium Steel (GCr15)

Accuracy: P0

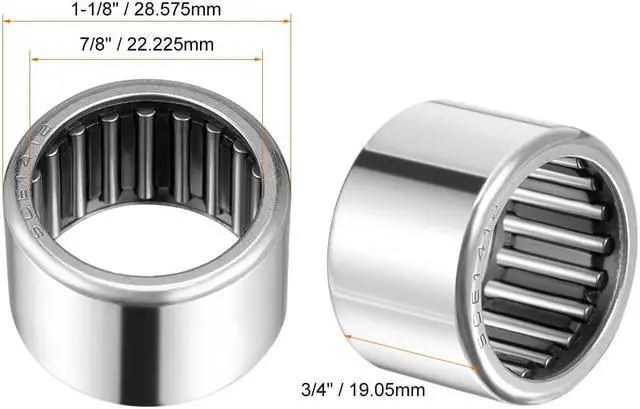

Bore Diameter (Fw): 7/8" / 22.225mm

Outside Diameter (D): 1-1/8" / 28.575mm

Width: 3/4" / 19.05mm

Dynamic Load Rating: 16900N

Static Load Rating: 27000N

Number of Pack: 5 Pcs
